DRAUGHT PROOFING WINDOWS

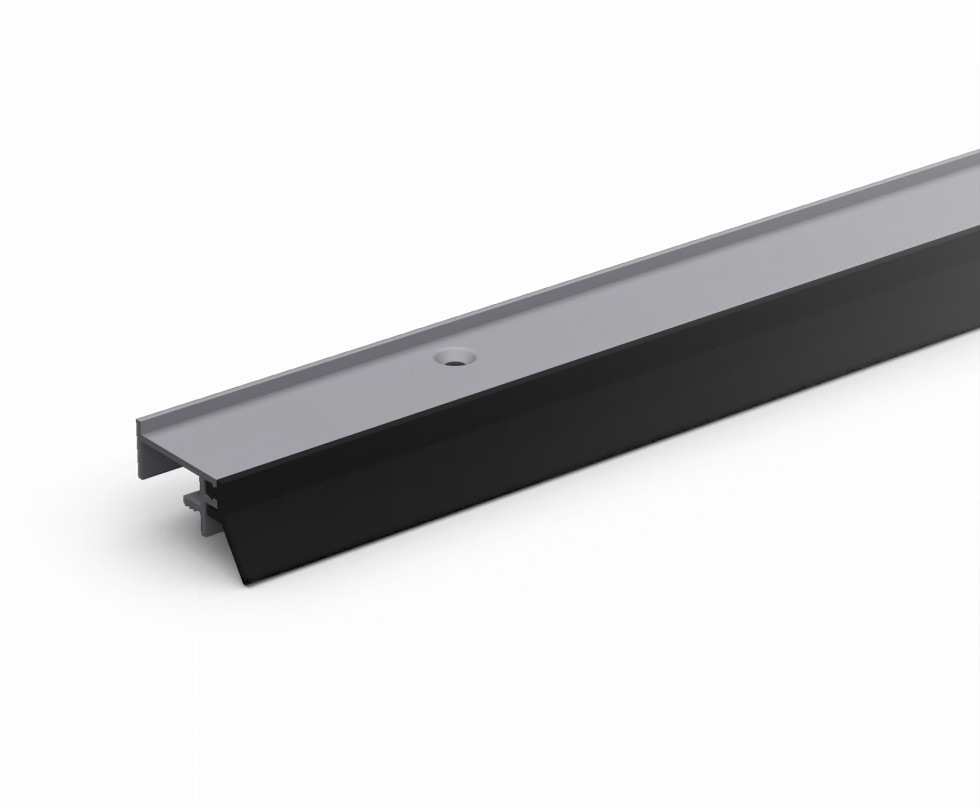

Perimeter seal ANB 2N is an aluminium draught profile for bottom and intermediate sills of outward-opening windows. The draught profile is equipped with an evaporation channel and has a low closing resistance.
Can optionally be combined with the ANB 1N for the frame styles and top sill. And is suitable for frames with 6 mm clearance.
Description
- Aluminium profile (quality 6060 T66)
- Plastic (TPE) seal
- Equipped with evaporation channel
- Low closing resistance
- Easy installation
- 3.2 mm pre-drilled and countersunk screw holes
- Application: outward moving windows
- Can be cut to length
Technical details

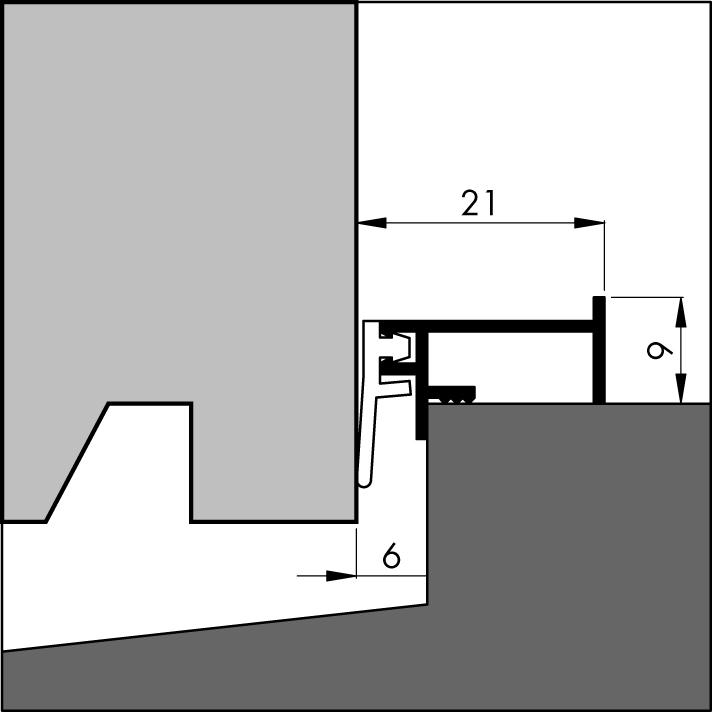

- Max gap: 6 mm
- Width x height: 9 mm x 21 mm
- Mounting on the frame
Specifications
All standard lengths can be cut to size.
| LENGTH | ART.NR | COLOUR | EAN (PC.) | UNIT |
| 300 cm | 300900230 | Alu. | 8711286251230 | 18 pcs./tube |
Note: It is possible to purchase the wear strip individually at your local hardware store or home improvement center.
Performance
Classification according to NEN EN 12365: W43133.
Installation advice
Draft can easily be stopped by correctly mounting the perimeter seal. Read the supplied mounting instructions and follow the step-by-step plan.
Prepare the necessary materials in advance:
- Tape measure or folding rule
- Pencil
- Saw and file
- Drill with Phillips bit
Step-by-step guide: installing perimeter seal ANB 2N
- Measure the width of the bottom of the frame to determine the length of the perimeter seal.
- Mark the correct length on the profile.
- Saw the profile to size.
- File off any sharp edges of the aluminium that may have formed.
- Place the perimeter seal on the frame and screw it in place.
