DRAUGHT PROOFING DOORS & WINDOWS

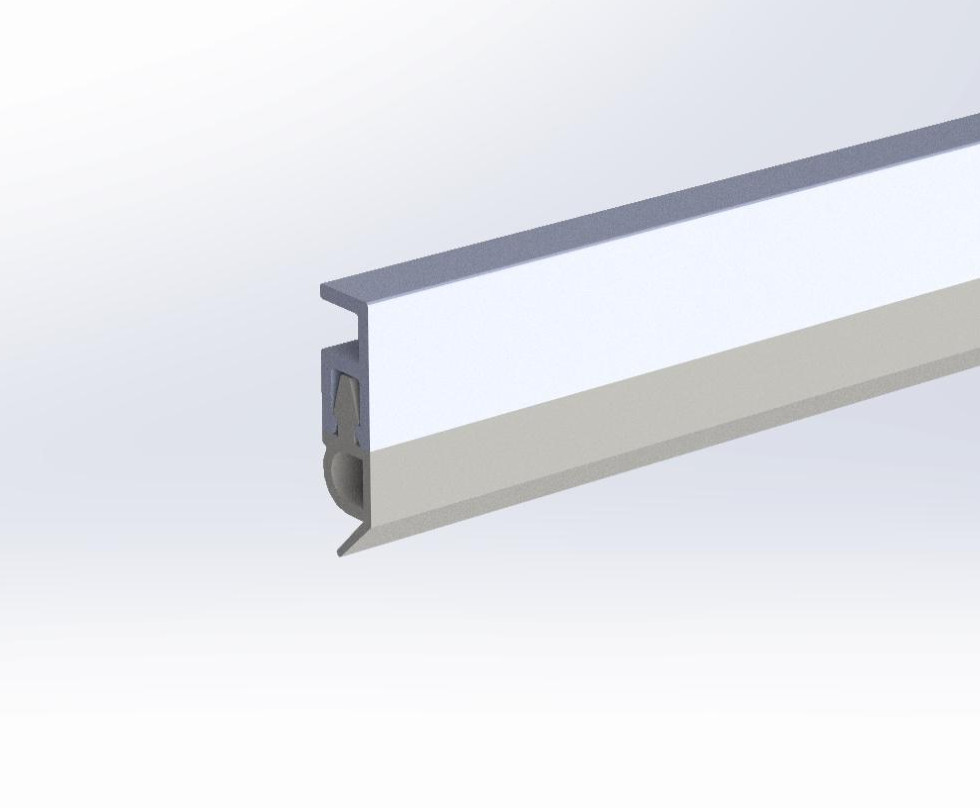

Perimeter PTS is a white plastic profile with seal to prevent draughts around doors and windows.
The draught profile is easy to mount with Ellen draught strip nails.
.
Description
- White plastic profile
- Flexible plastic (TPE) seal
- Easy mounting
- Provided with nail holes
- Sealing for gaps up to 7 mm
- Application: inward and outward moving doors and windows
- Can be cut to length

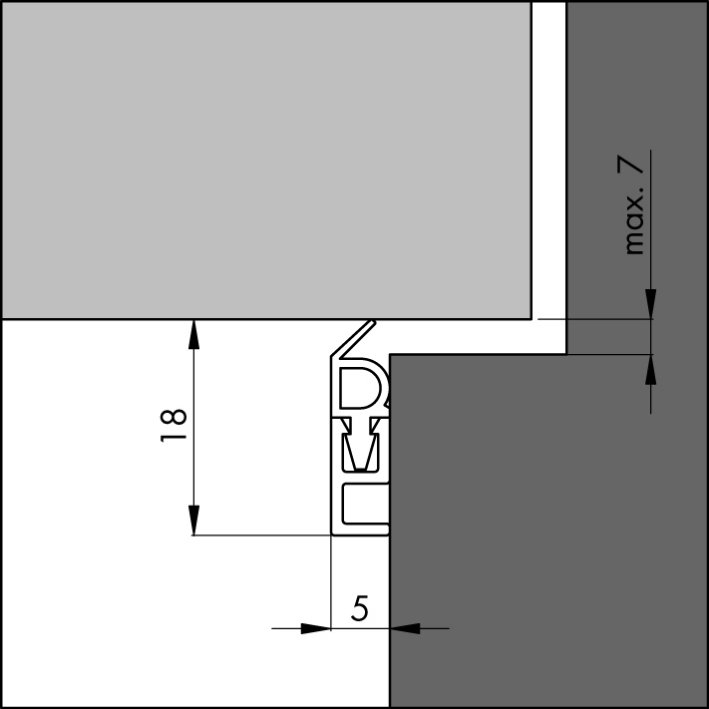

Technical details
- Max gap: 7 mm
- Width x height: 5 mm x 18 mm
- Ellen nails ø1,6 x 25 mm
- Use stainless steel nails for outdoor use and galvanized nails for indoor use
Specifications
All standard lengths can be cut to size.
| LENGTH | ART.NR | COLOUR | EAN (PC.) | UNIT |
| 230 cm | 100101223 | White | 8711286160204 | 25 pcs./tube |
Note: It is possible to purchase the wear strip individually at your local hardware store or home improvement center.
Performance
Classification according to NEN EN 12365: W34132 and W34133.
Installation advice
Draft can easily be stopped by correctly mounting the perimeter seal. Read the supplied mounting instructions and follow the step-by-step plan.
Prepare the necessary materials in advance:
- Tape measure or folding rule
- Pencil
- Saw and file
- Hammer
Step-by-step guide: installing perimeter seal PTS
- Measure the width at the top of the frame to determine the length of the perimeter seal
- Draw the correct length on the profile
- Cut the profile to size
- File off any sharp edges of the plastic that may have formed
- Close the door. Place the perimeter seal on the frame and nail it in place. Make sure that the seal fits against the door over the entire length without building up pressure.
- Repeat the above steps for the hinge side and then for the closing side
