DRAUGHT, SMOKE AND FIREPROOF DOORS

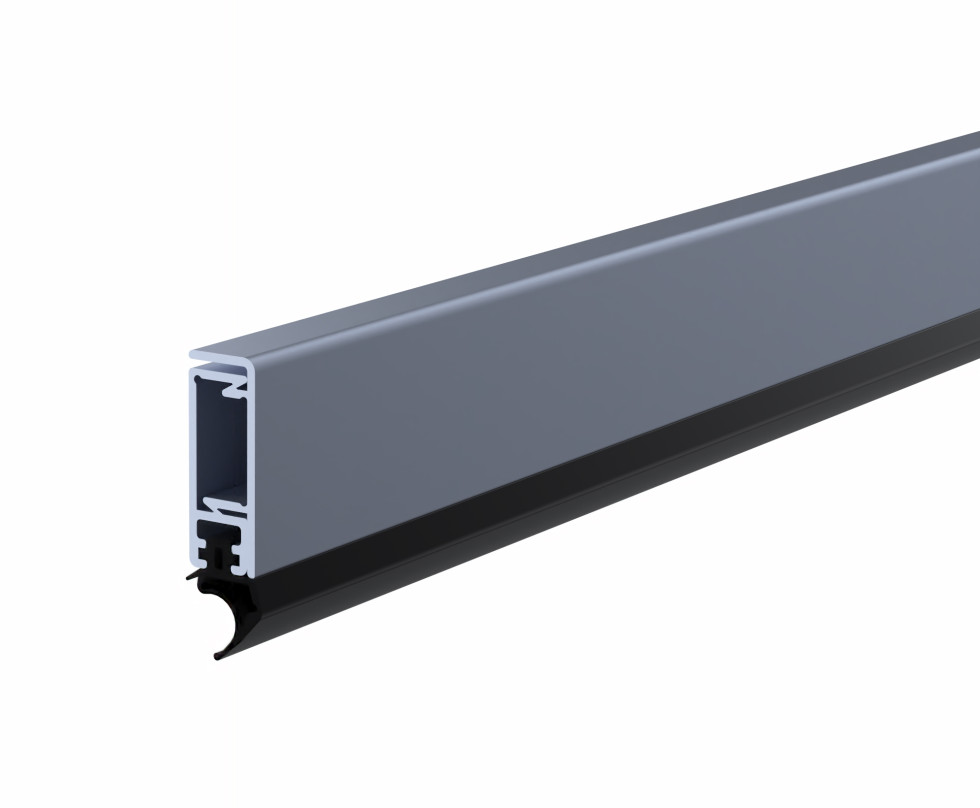

The ASP perimeter seal is an attractive aluminium adjustment profile that allows you to easily make interior doors soundproof and smokeproof.
- Smokeproof: cold smoke and hot smoke
In addition to increasing living comfort, this adjustment profile is also the solution for offices, hotels and healthcare institutions.
Ideal to combine with an EllenMatic Soundproof in Elegance Cassette.
Description
- Silicone seal
- Anodized aluminum cover strip for a concealed and aesthetically pleasing finish
- Quick and easy to install
- Sealing gaps up to 10 mm
- Slotted holes make correct adjustment against warped doors even easier
- Low closing resistance
- Application: wooden interior doors
- Can be cut to the right size
Technical details
- Max gap: 10 mm

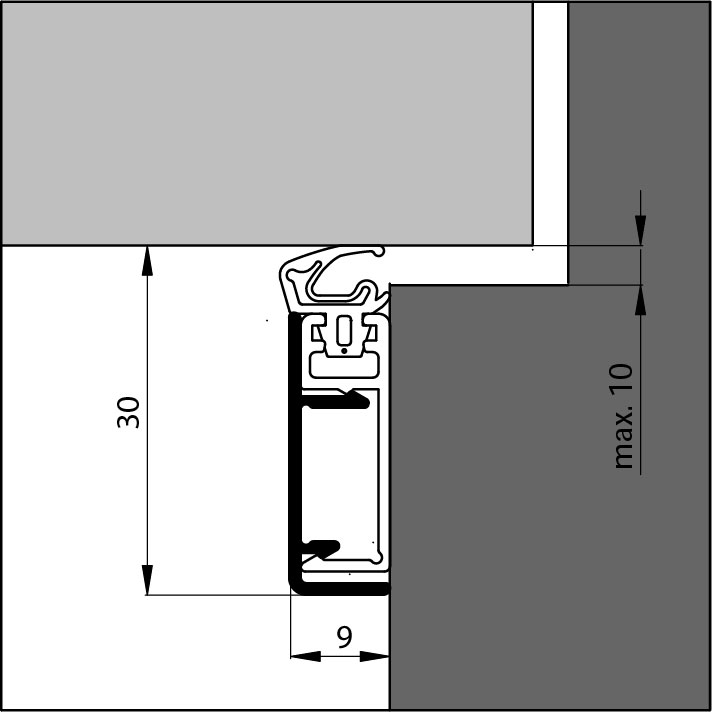

- Width x height: 9 mm x 30 mm
- Mounting using stainless steel screws
- Available as door set (2x230 cm + 1x115 cm)
Specifications
All standard lengths can be cut to size.
| DOORSET | ART.NR | COLOUR | EAN (PC.) | UNIT |
| 2x230 + 1x115 cm | 010851223 | VOM1 | 8711286103058 | 1 set/tube |
Performance
Classification according to NEN EN 12365: W41177
Smoke resistant according to NEN-EN 13501-2 “Sa” (cold smoke) and NEN-EN 1634-3 "S200" (hot smoke)
Installation advice
Draughts around doors and windows can easily be stopped by correctly installing the perimeter seal. Read the supplied installation instructions and follow the step-by-step plan.
Prepare the necessary materials in advance:
- Tape measure or folding rule
- Pencil
- Hacksaw and file
- Drill with Phillips bit
Step-by-step guide: installing perimeter seal ASP
- Measure the width of the top of the frame to determine the length of the perimeter seal.
- Mark the correct length on the holder profile.
- Saw the holder profile to size.
- File off any edges of the aluminium that may have formed.
- Close the door. Place the profile in the jamb of the frame and screw it in place, with the seal connecting with the door along the entire width.
- Mark the correct length on the cover cap.
- Saw the cover cap to size.
- File off any edges of the aluminium that may have formed.
- Place the cover cap over the holder profile. Carefully tap the cover cap into place with a plastic hammer to avoid damaging the profile.
- Repeat the above steps for the hinge side and then also for the closing side.
