DRAUGHT PROOFING DOORS & WINDOWS

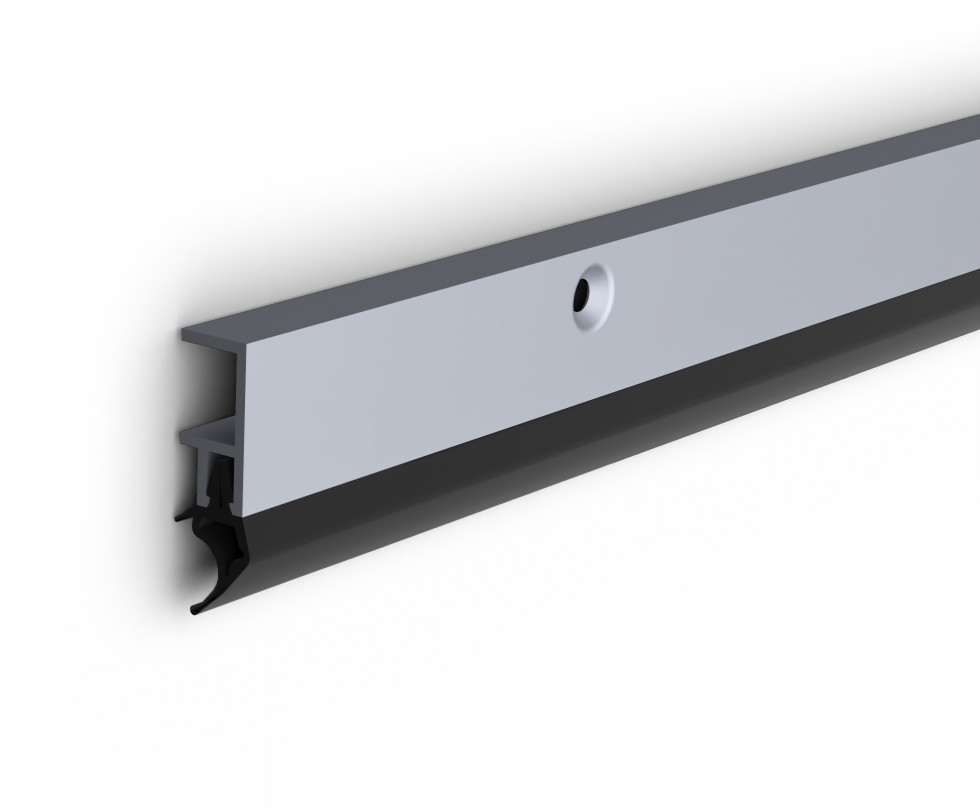

Perimeter seal ARP+ is a beautifully anodized aluminum draught excluder for inward and outward opening windows and doors.
The surface-mounted profile prevents draughts from entering your home, because the profile closes the gap between the frame and the door or window.
Specifically developed for renovation purposes. Due to the anodization, the profile does not rust and is therefore ideal for installation on exterior doors.
Description
- Anodized aluminum
- Ideal for outdoor use
- Plastic (TPE) seal
- Quick and easy to install
- Sealing for gaps up to 10 mm
- Low closing resistance
- Application: inward and outward opening doors and windows
- Can be cut to length easily
Technical details

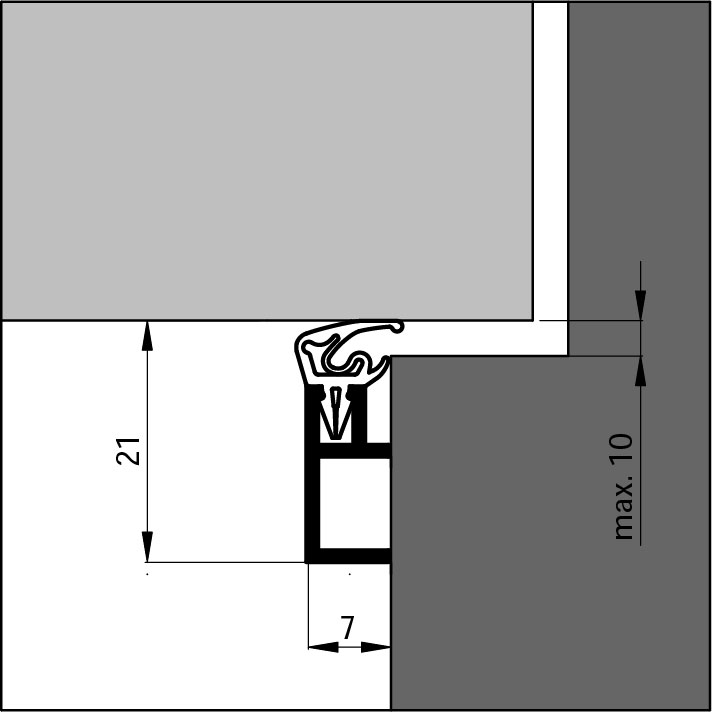

- Max gap: 10 mm
- Width x height: 7 mm x 21 mm
- Lengths 220, 230 and 300 cm
- Mount using Ellen stainless steel screws 3.0x20mm
- pre-drilled 3,2 mm and countersunk screw holes
Specifications
All standard lengths can be cut to size.
| LENGTH | ART.NR | COLOUR | EAN (PC.) | UNIT |
| 220 cm | 020450222 | VOM1 | 8711286106868 | 25 pcs./tube |
| 230 cm | 020450223 | VOM1 | 8711286106844 | 25 pcs./tube |
| 300 cm | 020450230 | VOM1 | 8711286106851 | 25 pcs./tube |
Note: It is possible to purchase the wear strip individually at your local hardware store or home improvement center.
Performance
Classification according to NEN EN 12365: W44143
Installation advice
Draughts around doors and windows can easily be stopped by correctly installing the perimeter seal. Read the supplied installation instructions and follow the step-by-step plan.
Prepare the necessary materials in advance:
- Tape measure or folding rule
- Pencil
- Hacksaw and file
- Drill with Phillips bit
Step-by-step guide: installing perimeter seal ARP+
- Measure the width of the top of the frame to determine the length of the perimeter seal.
- Mark the correct length on the perimeter seal.
- Saw the profile to size.
- File off any edges of the aluminium or plastic that may have formed.
- Close the door. Place the perimeter seal on the frame and screwfix it in place using stainless steel Ellen screws. Make sure that the seal closes the gap over the entire length.
- Then measure length the hinge side and repeat the steps above to place the perimeter seal on the hinge side.
- Repeat the steps above to place it on the closing side.
