DRAUGHT PROOFING DOORS & WINDOWS

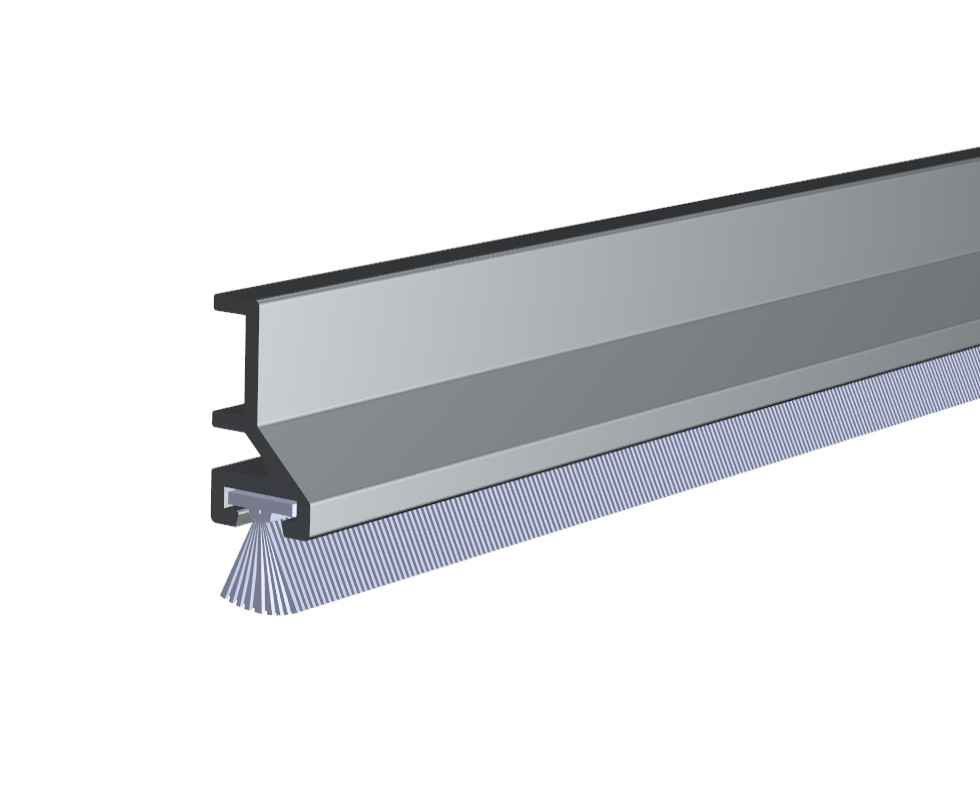

Perimeter seal ATS B is an aluminium profile with a velvet brush to prevent draughts around sliding doors and sliding windows.
The draught profile can be easily mounted on the frame using Ellen draught strip nails. And thanks to the soft velvet brush, the profile has a low closing resistance.
Description
- Aluminium profile (quality 6060 T66)
- Velvet brush (soft PP) in grey
- Quick and easy to assemble
- Sealing of gaps up to 8 mm
- Application: for sliding doors and windows
- Can be cut to length

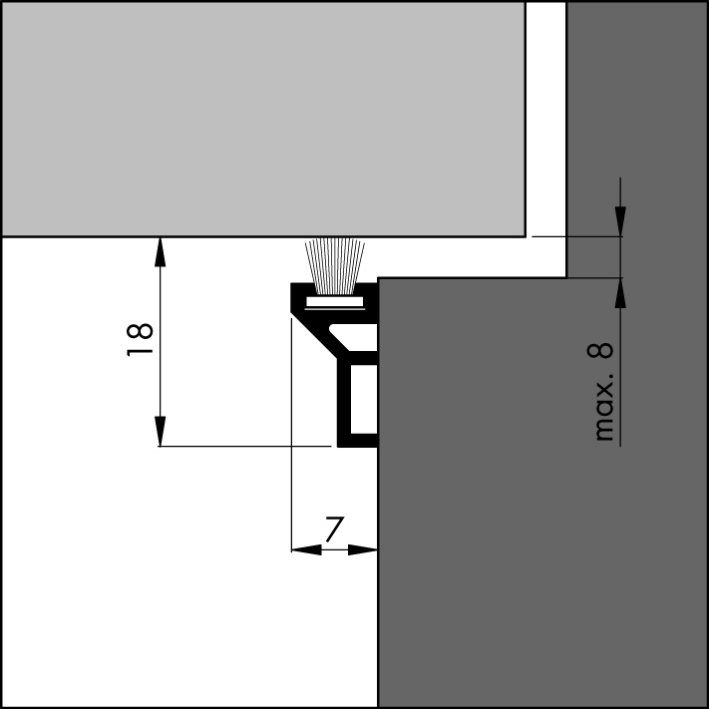

Technical details
- Max gap: 8 mm
- Width x height: 7 mm x 18 mm
- Ellen nails ø1,6 x 25 mm
- Profile is pre-drilled: 1,8 mm
Specifications
All standard lengths can be cut to size.
| LENGTH | ART.NR | COLOUR | EAN (PC.) | UNIT |
| 230 cm | 010300023 | Alu. | 8711286101009 | 25 pcs./tube |
Note: It is possible to purchase the wear strip individually at your local hardware store or home improvement center.
Installation advice
Draughts around doors and windows can easily be stopped by correctly installing the perimeter seal. Read the supplied installation instructions and follow the step-by-step plan.
Prepare the necessary materials in advance:
- Tape measure or folding rule
- Pencil
- Hacksaw and file
- Drill with Phillips bit
Step-by-step guide: installing perimeter seal ATS B
- Measure the length in the window frame to determine the length of the perimeter seal.
- Mark the correct length on the profile.
- Saw the profile to size.
- File off any sharp edges of the aluminium that may have formed.
- Place the perimeter seal in the window frame and nail it in place.
Note: place the profile with light pressure against the door or window to prevent excessive closing resistance.
