DRAUGHT PROOFING DOORS & WINDOWS

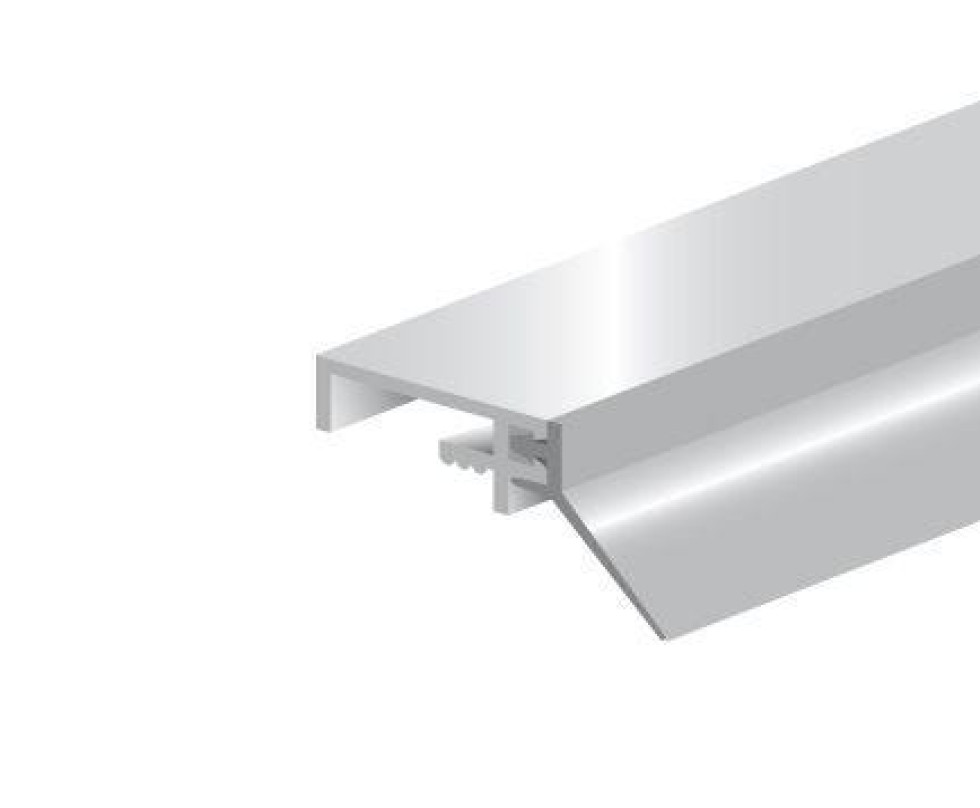

Perimeter seal ANB 1N is an aluminium draught excluder with plastic seal for inward and outward opening windows and doors. The profile is suitable for frames with a clearance of 6 mm.
Can optionally be combined with surface-mounted profile ANB 2N for the bottom or intermediate sill.
Description
- Aluminium profile (quality 6060 T66)
- Plastic (TPE) seal in black
- Low closing resistance
- Easy installation
- 3.2 mm pre-drilled and countersunk screw holes
- Application: inward and outward moving doors and windows
- Can be cut to the right length

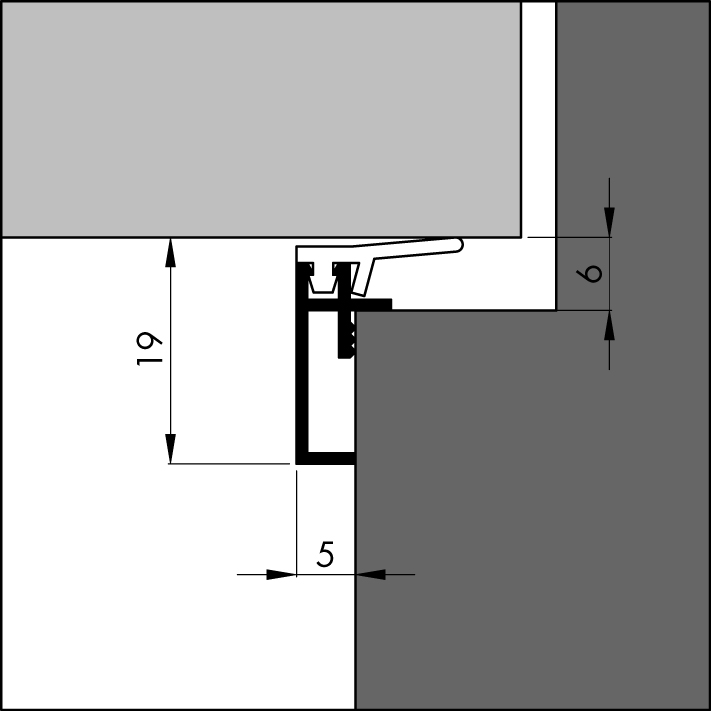

Technical details
- Max gap: 6 mm
- Width x height: 5 mm x 19 mm
- Mounting on the frame
Specifications
All standard lengths can be cut to size.
| LENGTH | ART.NR | COLOUR | EAN (PC.) | UNIT |
| 300 cm | 300300230 | Alu. | 8711286241231 | 25 pcs./tube |
Note: It is possible to purchase the wear strip individually at your local hardware store or home improvement center.
Performance
Classification according to NEN EN 12365: W43133.
Installation advice
Draft can easily be stopped by correctly mounting the perimeter seal. Read the supplied mounting instructions and follow the step-by-step plan.
Prepare the necessary materials in advance:
- Tape measure or folding rule
- Pencil
- Saw and file
- Drill with Phillips bit
Step-by-step guide: installing perimeter seal ANB 1N
- Measure the width of the top of the frame to determine the length of the perimeter seal.
- Mark the correct length on the profile
- Saw the profile to size.
- File off any sharp edges of the aluminium that may have formed.
Place the perimeter seal on the frame and screw it in place. - Repeat the above steps for the hinge side and then for the locking side.
Note: When combined with the ANB 2N, first install the 2N before measuring and mounting the 1N!
