DRAUGHT PROOFING DOORS & WINDOWS

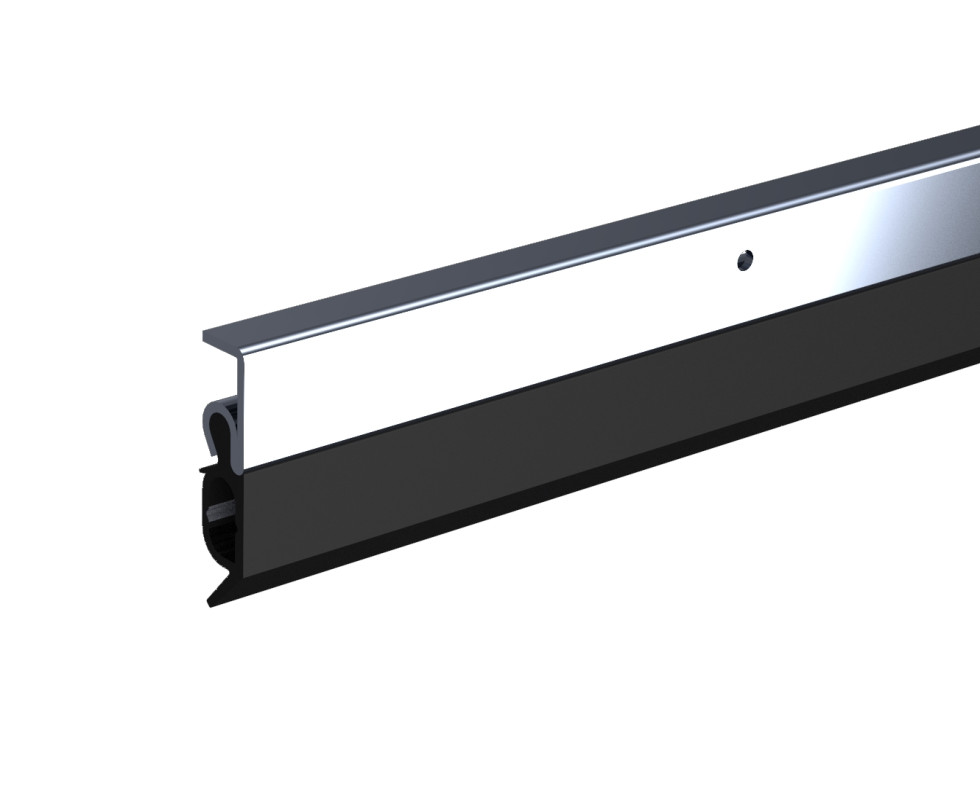

Perimeter seal Elro XL is a draught profile for mounting in the reveal of the frame for inward and outward opening windows and doors.
The surface-mounted profile prevents draughts from entering your home, because the profile closes the gap between the frame and the door or window.
The Elro XL can seal very large gaps, up to 13 mm. In addition to an aluminium profile with black seal, it is also available in a white painted aluminium profile with white seal, both in RAL9010.
Description
- Aluminium rolled profile - quality 6060 T66
- Plastic (TPE) seal
- Quick and easy to install
- Sealing of very large gaps
- Draught excluder in the reveal of the door
- Application: inward and outward opening windows and doors
- Easy to cut to length
- Also available in white aluminium > perimeter seal Elro XL - white
Technical details
- Max gap: 13 mm
- Width x height: 5 mm x 20 mm
- Standard lengths 230 and 300 cm
- Mounting: Ellen nails 1,6x25 mm (RVS for exterior use, galvanized for indoor use)
Specifications
All standard lengths can be cut to size.
| LENGTH | ART.NR | COLOUR | EAN (PC.) | UNIT |
| 230 cm | 050200223 | Alu. | 8711286142248 | 25 pcs./tube |
| 300 cm | 050200230 | Alu. | 8711286142255 | 25 pcs./tube |
| 230 cm | 050201223 | White | 8711286142262 | 25 pcs./tube |
| 300 cm | 050201230 | White | 8711286142279 | 25 pcs./tube |
Note: It is possible to purchase the wear strip individually at your local hardware store or home improvement center.
Performance
Classification according to NEN EN 12365: W45153
Installation advice
Draughts around doors and windows can easily be stopped by correctly installing the perimeter seal. Read the supplied installation instructions and follow the step-by-step plan.
Prepare the necessary materials in advance:
- Tape measure or folding rule
- Pencil
- Hacksaw and file
- Drill with Phillips bit
Step-by-step guide: installing perimeter seal Elro XL
- Measure the width of the top of the frame to determine the length of the perimeter seal.
- Mark the correct length on the perimeter seal.
- Saw the profile to size.
- File off any edges of the aluminium or plastic that may have formed.
- Close the door. Place the perimeter seal on the frame and nail it in place. Make sure that the seal closes the gap over the entire length.
- Then measure length the hinge side and repeat the steps above to place the perimeter seal on the hinge side.
- Repeat the steps above to place it on the closing side.
