DRAUGHT, NOISE, SMOKE AND FIRE PROOFING DOORS
The EllenMatic Slim Soundproof drop seal is the solution for making doors and spaces soundproof, smokeproof and fireproof. The automatic drop seal completely seals the gap under the door when the door is closed. And thanks to the built-in 'no-break' function, the interior springs back if there are obstacles under the door.
- Soundproof 50 dB
- Fireproof: 30 and 60 minutes
- Smokeproof: cold smoke and hot smoke

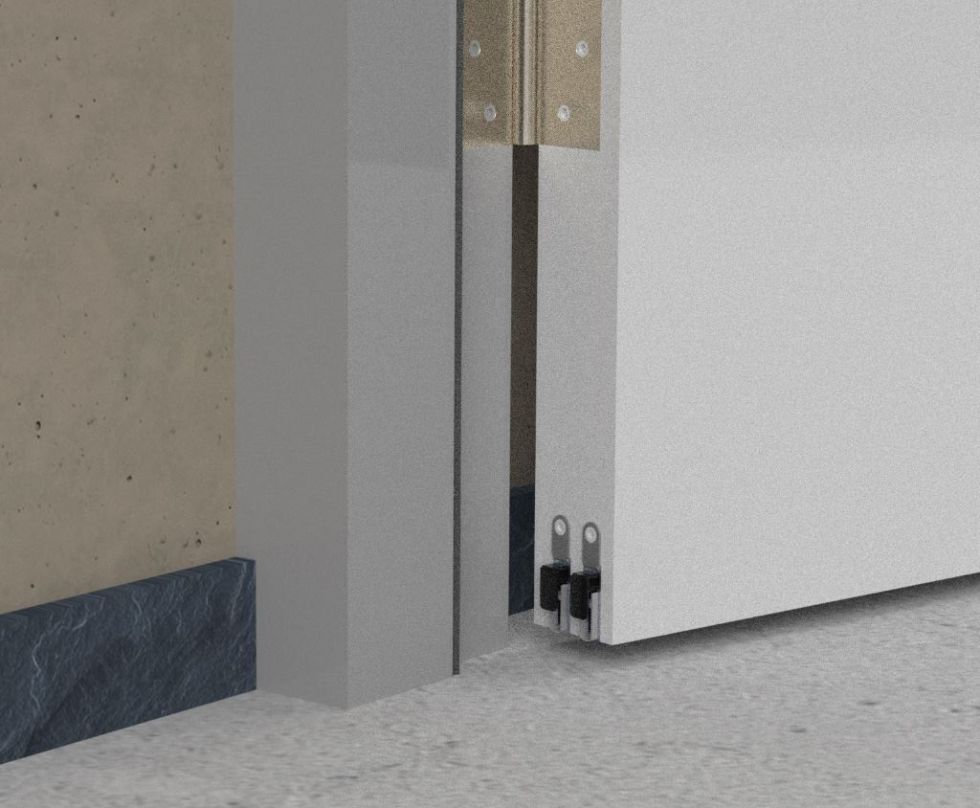

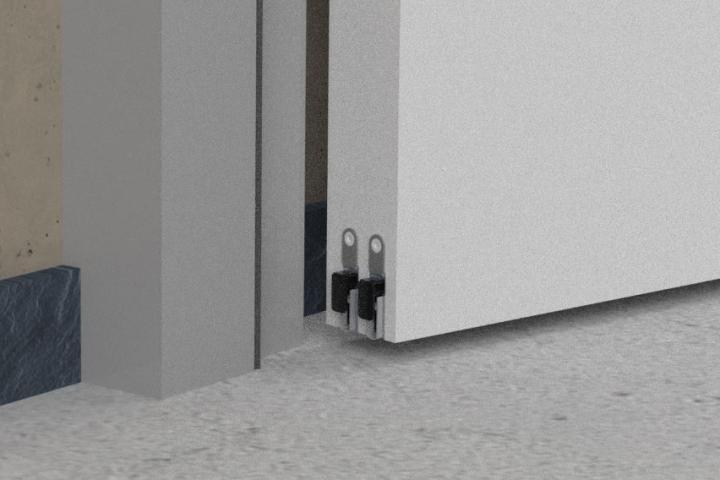

Ideal for double use or in combination with an espagnolette. In addition, the Slim Soundproof in surface-mounted cassette is an aesthetic solution for glass doors.
Description
- Automatic sealing

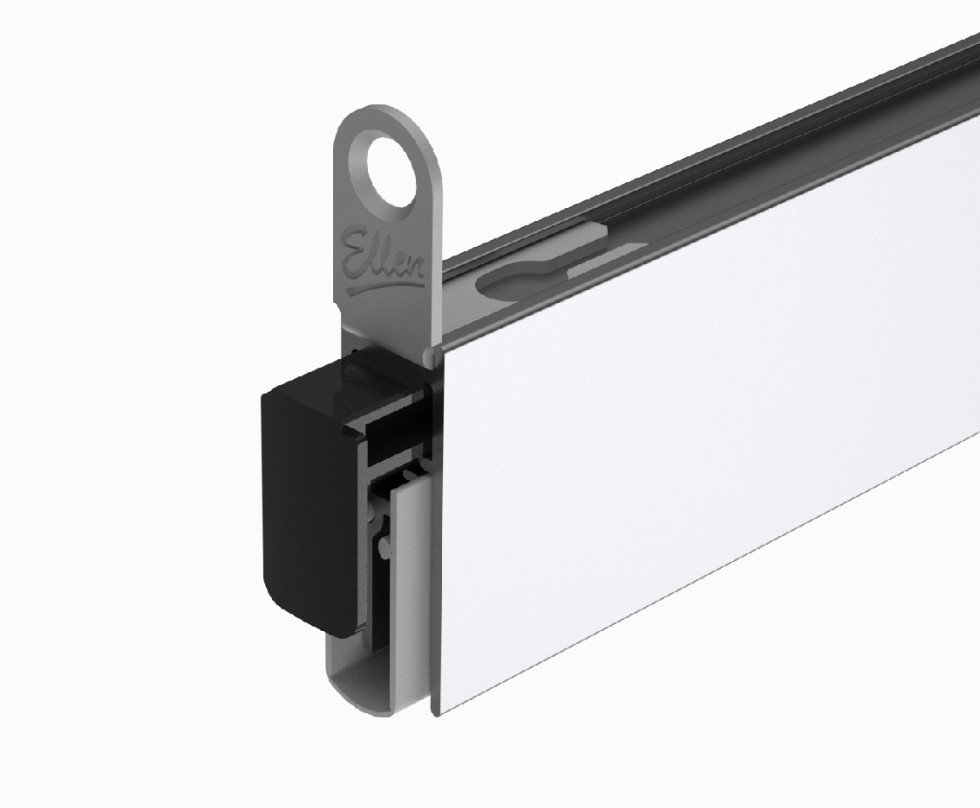

- Aluminum housing with silicone seal
- Soundproof 50 dB
- Fireproof: 30 and 60 minutes
- Smokeproof (according to NEN-EN 13501-2 “Sa”, “Sm” and NEN-EN 1634-3) in execution

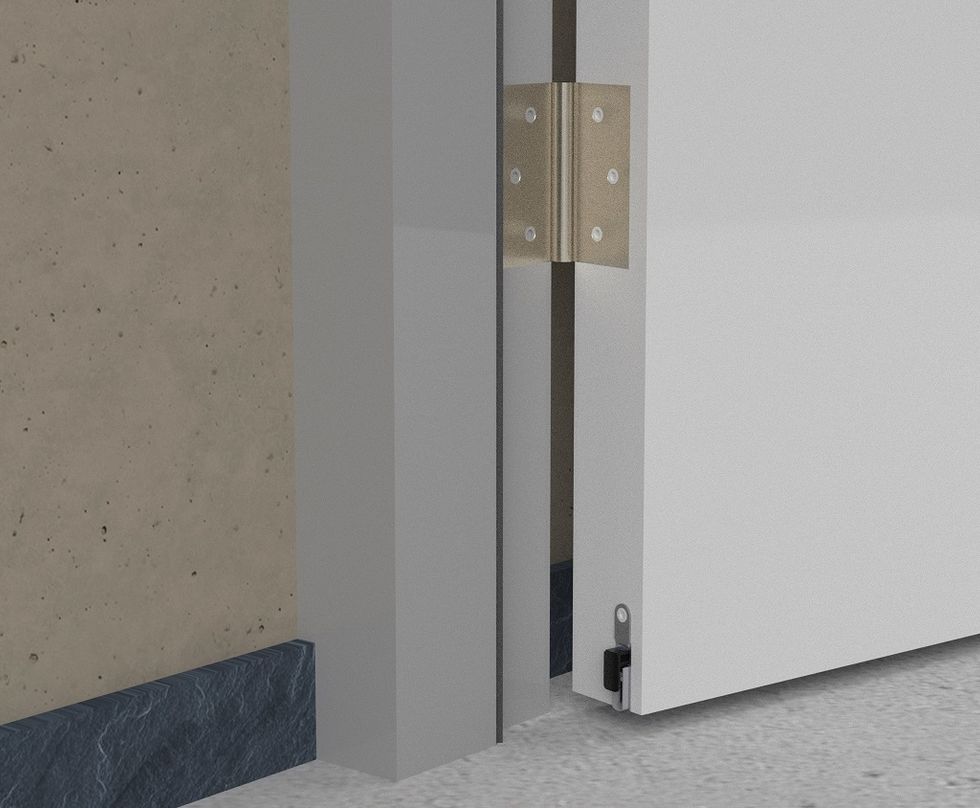

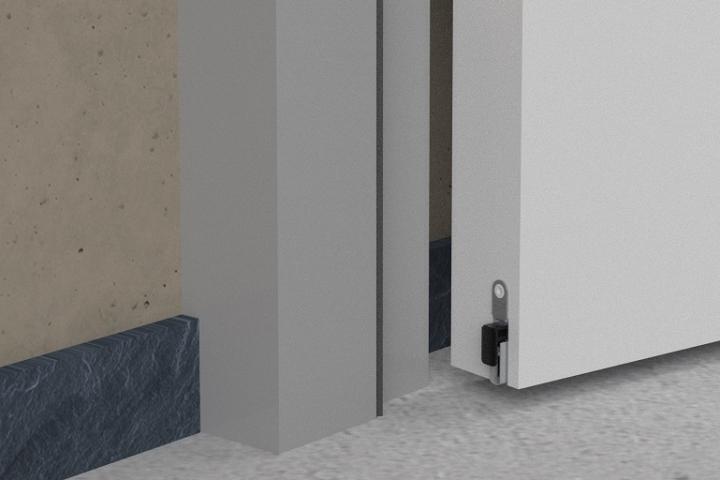

- Single-sided operation on the hinge side
- Perpendicular movement of the internals without lateral movement

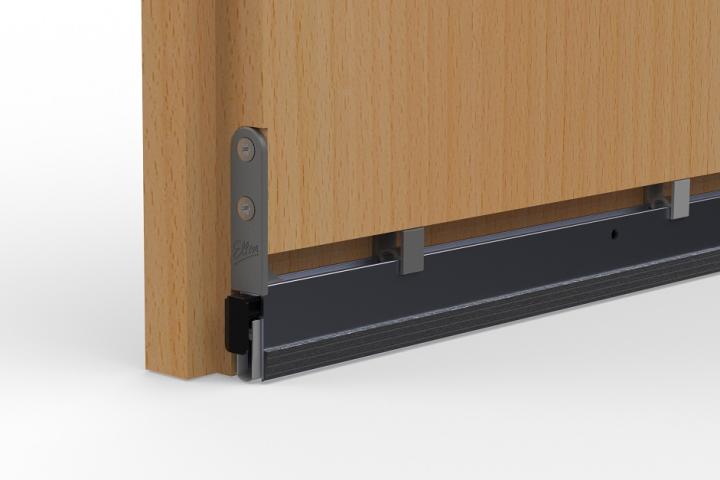

- Application: wooden interior doors

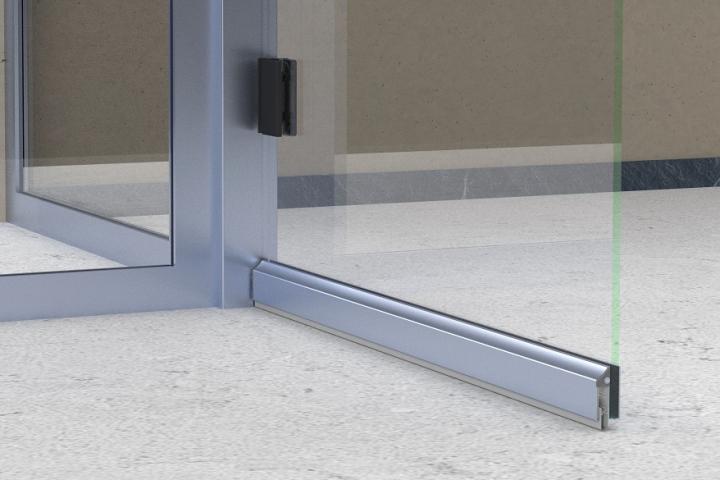

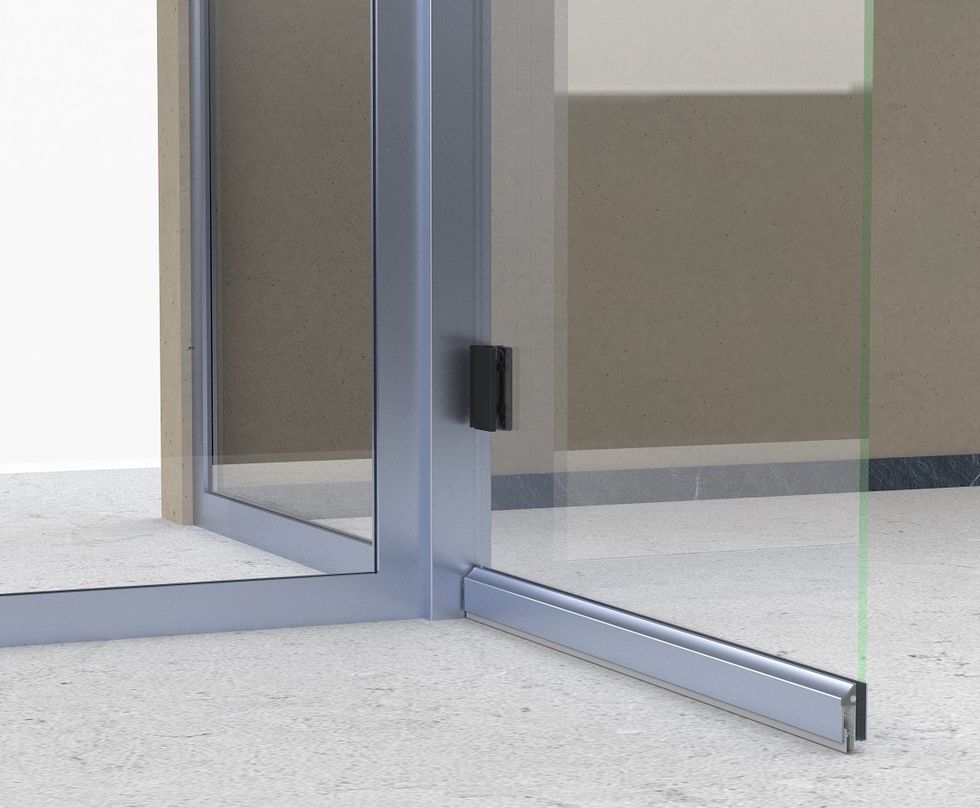

- In surface-mounted cassette perfect for glass doors
Technical details

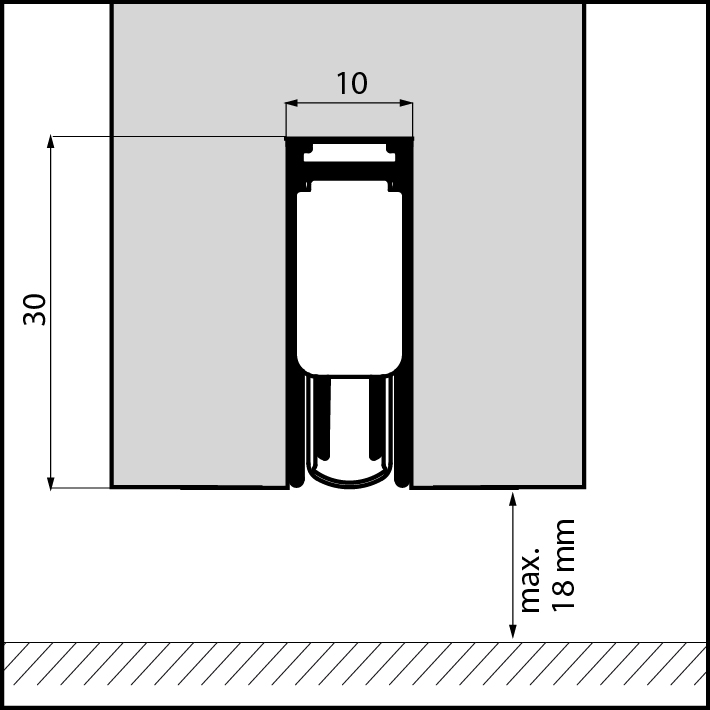

- Max gap: 18 mm
- Groove size: 10 x 30 mm
- Standard lengths can be shortened by 150 mm
- Customization possible
- Minimum length: 300 mm
- Max length: 1600 mm

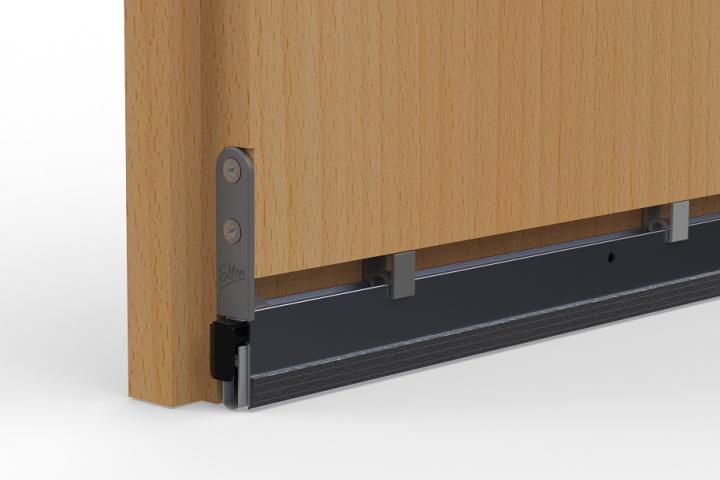

- Fixation by using suspension plates
Specifications drop seal
All standard lengths can be shortened by 150 mm.
| LENGTH | ART.NR | EAN (PC.) | UNIT |
| 628 mm | 203800121 | 8711286268009 | 10 pc. |
| 728 mm | 203800122 | 8711286268023 | 10 pc. |
| 828 mm | 203800123 | 8711286268047 | 10 pc. |
| 928 mm | 203800124 | 8711286268061 | 10 pc. |
| 1028 mm | 203800125 | 8711286268085 | 10 pc. |
| 1128 mm | 203800126 | 8711286268207 | 10 pc. |
| 1228 mm | 203800127 | 8711286268221 | 10 pc. |
Note: It is possible to purchase the product individually at your local hardware store or home improvement center.
Customized lengths of the EllenMatic Slim Soundproof can be shortened as well:
| LENGTH FROM | TO | SHORTEST LENGTH |
| 300 mm | 480 mm | 301 mm |
| 481 mm | 730 mm | 481 mm |
| 731 mm | 930 mm | 661 mm |
| 931 mm | 1030 mm | 841 mm |
| 1031 mm | 1230 mm | 1021 mm |
| 1231 mm | 1380 mm | 1201 mm |
| 1381 mm | 1600 mm | 1381 mm |
Installation advice
Draught, noise, smoke and fire can easily be stopped by correctly installing the drop seal. Read the supplied installation instructions, watch the video and follow the step-by-step plan.
Prepare the necessary materials in advance:
- Tape measure or folding rule
- Pencil
- Hacksaw
- File
- Drill with Philips bit
Step-by-step guide: installing EllenMatic Slim Soundproof
- Measure the groove dimensions in the door to ensure that the drop seal fits in the groove
- Then measure the width of the door to determine the length of the drop seal
- Remove the mounting plates and activator button
- Pull the seal back towards the activator button side
- Mark the correct length on the drop seal
Note: shorten on the non-activator button side! - Cut the drop seal to size
- File off any burrs that may have formed on the aluminium
- Slide the seal back. Ensure that there is enough seal protruding edge on each side for optimum sealing of the corners
- Cut off the excess seal
- Slide the drop seal into the groove and secure with the mounting plates
- Slide the activator button into the opening until it clicks into place
- Adjust the drop seal until the desired sealing is achieved
- Test the sealing using a piece of paper > the paper must be secure, but must not tear
