DRAFT, SOUND, SMOKE AND FIRE PROTECTION OF DOORS

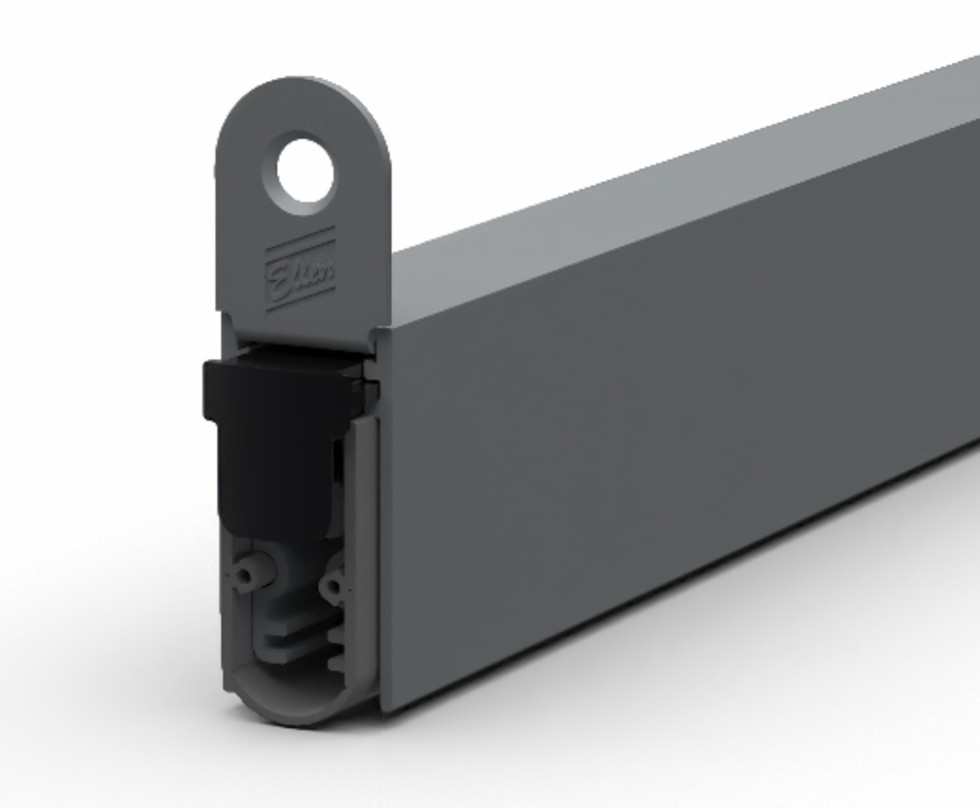

The EllenMatic Soundproof drop seal is the sound, smoke and fire resistant drop seal for wooden doors. The Soundproof ensures automatic closure of the gap under a door.
- Soundproof 51 dB*
- Fire resistant: 30, 60 and 90 minutes*
- Smoke resistant: cold smoke and hot smoke*
Thanks to the built-in 'no-break' function, the interior springs back if there are obstacles under the door.
* Tested and certified with a maximum gap of 7mm
Description
- Aluminium housing with silicone seal
- Automatic closure
- Sound proofing 51 dB
- Fire resistant: 30, 60 and 90 minutes
- Smoke proofing according to NEN-EN 13501-2 “Sa” (cold smoke) and NEN-EN 1634-3 "S200" (hot smoke)
- Single sided operated from the hinge side
- Perpendicular movement of the inner mechanism without lateral movement
- Manually adjustable activation button for fine adjustment
- Application: wooden interior doors or exterior doors in a sheltered environment
- Can be used in combination with a threshold replacement. For this we recommend Secucare products.
- Can also be combined with a run-on profile. For this we recommend Storax.
Technical details

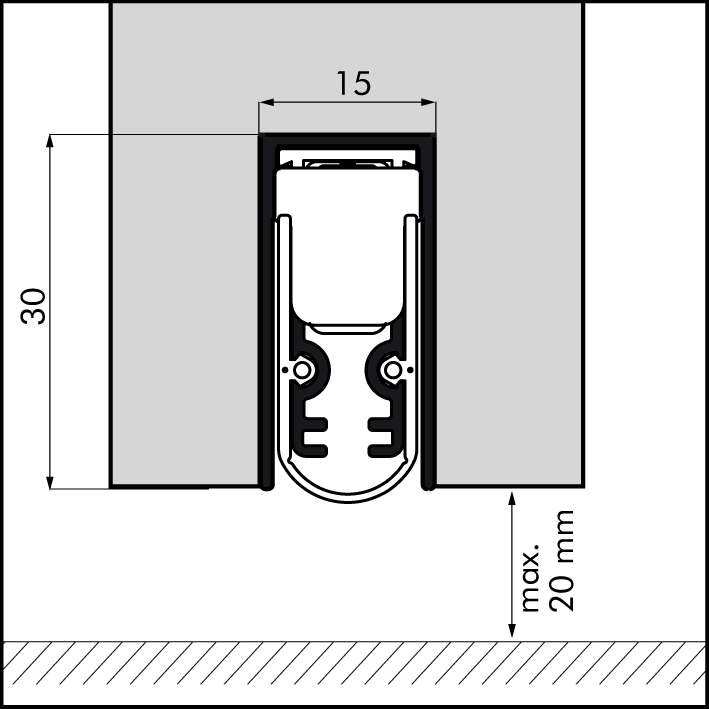

- Gap coverage: 20 mm
- Groove size: 15 x 30 mm
- Standard lengths can be shortened by 150 mm
- Customization possible
- Minimal length as automatic drop seal is 300 mm
- Max length 1600 mm
- Lengths between 150 and 300 mm possible as non-automatic seal
- Fixation by using suspension plates
Specifications drop seal
All standard lengths can be shortened by 150 mm.
| LENGTH | ART.NR | EAN (PC.) | UNIT |
| 628 mm | 203400151 | 8711286890101 | 6 pc. |
| 728 mm | 203400152 | 8711286890200 | 6 pc. |
| 828 mm | 203400153 | 8711286890309 | 6 pc. |
| 928 mm | 203400154 | 8711286890408 | 6 pc. |
| 1028 mm | 203400155 | 8711286890507 | 6 pc. |
| 1128 mm | 203400126 | 8711286233892 | 10 pc. |
| 1228 mm | 203400127 | 8711286234004 | 10 pc. |
Note: It is possible to purchase the product individually at your local hardware store or home improvement center.
Customized lengths of the EllenMatic Soundproof can also be shortened:
| LENGTH FROM | TO | SHORTEST LENGTH |
| 300 mm | 480 mm | 301 mm |
| 481 mm | 730 mm | 481 mm |
| 731 mm | 930 mm | 661 mm |
| 931 mm | 1030 mm | 841 mm |
| 1031 mm | 1230 mm | 1021 mm |
| 1231 mm | 1380 mm | 1201 mm |
| 1381 mm | 1600 mm | 1381 mm |
Installation advice
Draught, noise, smoke and fire can easily be stopped by correctly installing the drop seal. Read the supplied installation instructions, watch the video and follow the step-by-step plan.
Prepare the necessary materials in advance:
- Tape measure or folding rule
- Pencil
- Hacksaw
- File
- Drill with Philips bit
Step-by-step guide: installing EllenMatic Soundproof
- Measure the groove dimensions in the door to ensure that the drop seal fits in the groove
- Then measure the width of the door to determine the length of the drop seal
- Remove the mounting plates and activator button
- Pull the seal back towards the activator button side
- Mark the correct length on the drop seal
Note: shorten on the non-activator button side! - Cut the drop seal to size
- File off any burrs that may have formed on the aluminium
- Slide the seal back. Ensure that there is enough seal protruding edge on each side for optimum sealing of the corners
- Cut off the excess seal

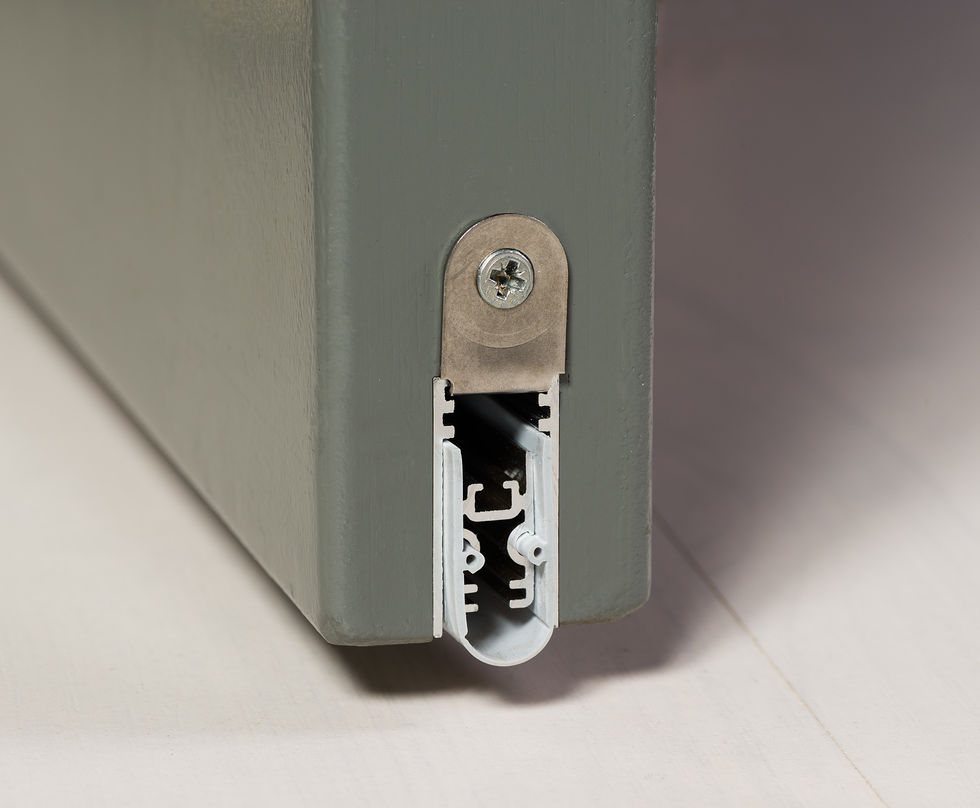

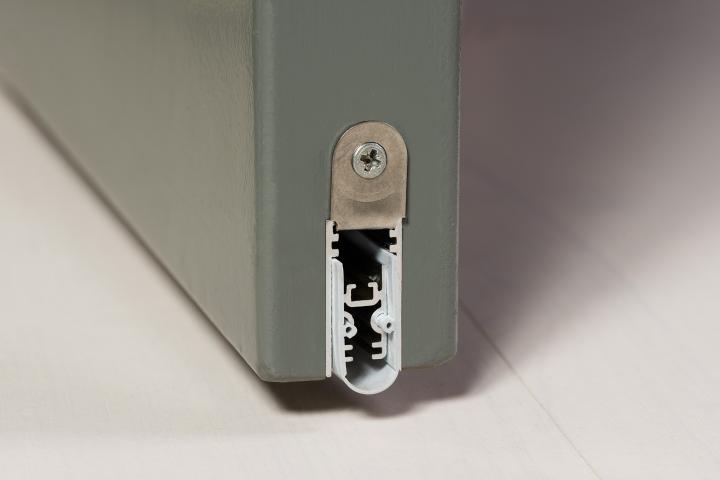

- Slide the drop seal into the groove and secure with the mounting plates
- Slide the activator button into the opening until it clicks into place
- Adjust the drop seal until the desired sealing is achieved
- Test the sealing using a piece of paper > the paper must be secure, but must not tear
