DRAUGHT PROOFING DOORS

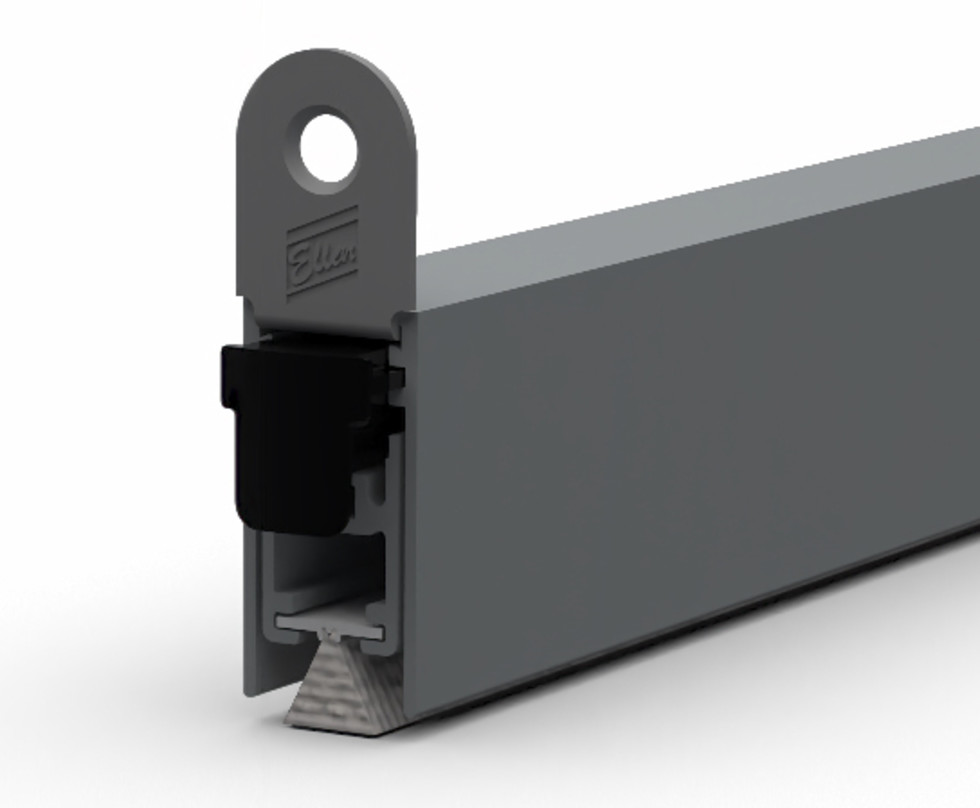

The EllenMatic Brush is the automatic drop seal that prevents draughts in indoor environments. The drop seal completely closes the gap under the door.
Thanks to the soft velvet brush, the Brush is ideal for wooden floors, laminate and tiles.
Suitable for wooden interior doors with a maximum gap under the door of 20 mm.
Description
- Draught proofing
- Aluminium housing
- Soft grey velvet brush
- Automatic sealing
- Suitable for wooden floors, laminate and tiles.
- Single sided activation at the hinge side
- Manually adjustable activator button
- Application: wooden interior doors
- Can be cut to length
Technical details
- Max gap: 20 mm

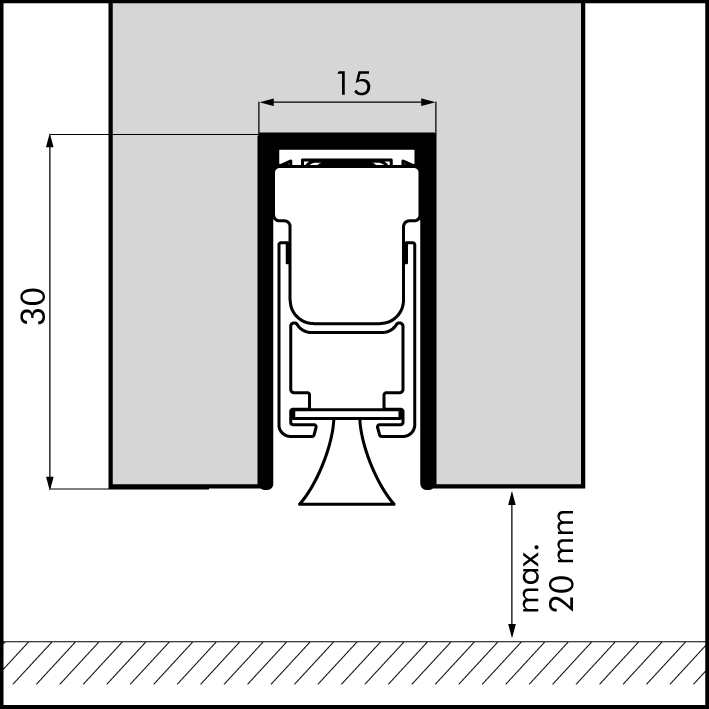

- Groove size: 15 x 30 mm
- Standard lengths can be shortened by 150 mm
- Fixation by using the steenless steel suspension plates
Specifications drop seal
All standard lengths can be shortened by 150 mm.
| LENGTH | ART.NR | EAN (PC.) | UNIT |
| 628 mm | 203900151 | 8711286891504 | 6 pc. |
| 728 mm | 203900152 | 8711286891603 | 6 pc. |
| 828 mm | 203900153 | 8711286891702 | 6 pc. |
| 928 mm | 203900154 | 8711286891801 | 6 pc. |
| 1028 mm | 203900155 | 8711286891900 | 6 pc. |
| 1128 mm | 203900126 | 8711286234400 | 10 pc. |
| 1228 mm | 203900127 | 8711286234417 | 10 pc. |
Note: It is possible to purchase the product individually at your local hardware store or home improvement center.
Customized lengths of the EllenMatic Brush can be shortened as well:
| LENGTHS FROM | TO | SHORTEST LENGTH |
| 300 mm | 480 mm | 301 mm |
| 481 mm | 730 mm | 481 mm |
| 731 mm | 930 mm | 661 mm |
| 931 mm | 1030 mm | 841 mm |
| 1031 mm | 1230 mm | 1021 mm |
| 1231 mm | 1380 mm | 1201 mm |
| 1381 mm | 1600 mm | 1381 mm |
Installation advice
Draft in the house can easily be stopped by correctly installing the dropseal. Read the supplied installation instructions, watch the video and follow the step-by-step plan.
Prepare the necessary materials in advance:
- Tape measure or folding rule
- Pencil
- Hacksaw
- File
- Drill with Phillips bit
Step-by-step guide: installing EllenMatic Brush
- Measure the groove dimensions in the door to ensure that the drop seal fits in the groove
- Then measure the width of the door to determine the length of the drop seal
- Remove the mounting plates and activator button
- Pull the seal back towards the activator button side
- Mark the correct length on the drop seal
Note: shorten on the non-activator button side! - Cut the drop seal to size
- File off any burrs that may have formed on the aluminium
- Slide the brush seal back.
- Cut off the excess brush seal
- Slide the drop seal into the groove and secure with the mounting plates
- Slide the activator button into the opening until it clicks into place
- Adjust the drop seal until the desired sealing is achieved
- Test the sealing using a piece of paper > the paper must be slightly secure, but must not tear
