DRAUGHT AND SOUND PROOFING DOORS

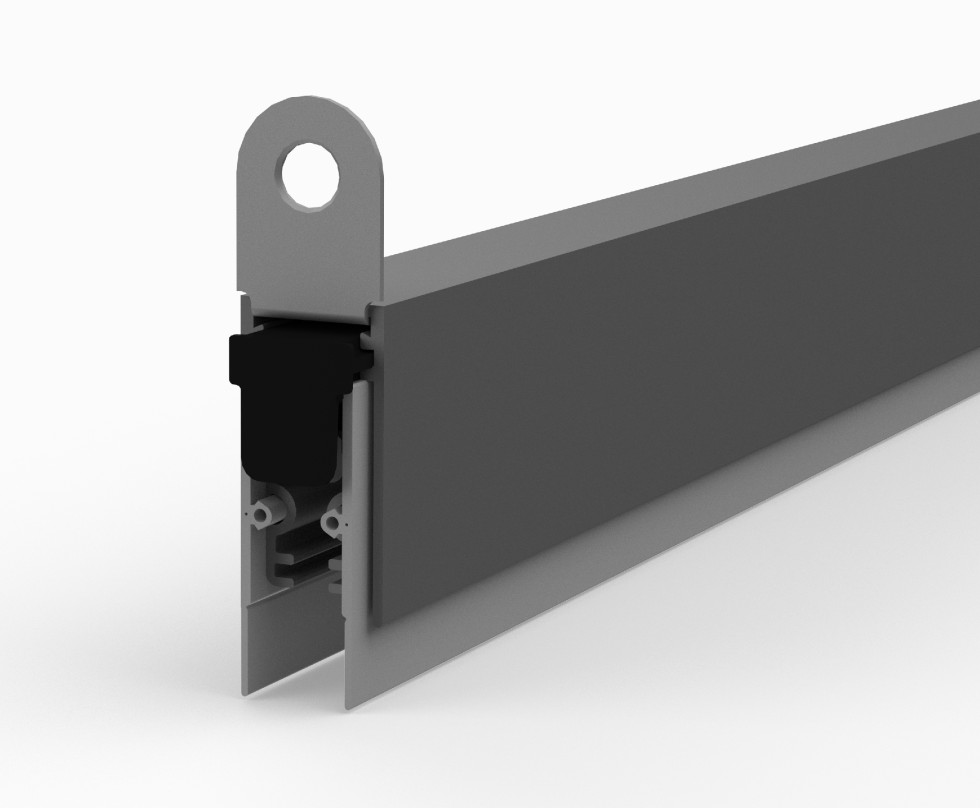

The EllenMatic Optimal Seal is an automatic drop seal for wooden interior and exterior doors.
The Optimal Seal is a real problem solver. The double seals make this product ideal for uneven surfaces. The 'No-Break' function ensures that the interior springs back if there are obstacles under the door.
Description
- Aluminium housing
- Automatic sealing
- Double flexible silicon seal , ideal for uneven surfaces
- Perpendicular movement of the inner mechanism without lateral movement
- Application: wooden interior doors and exterior doors in a sheltered environment
- Fixation by using the steenless steel suspension plates
- Manually adjustable activator button
Technical details

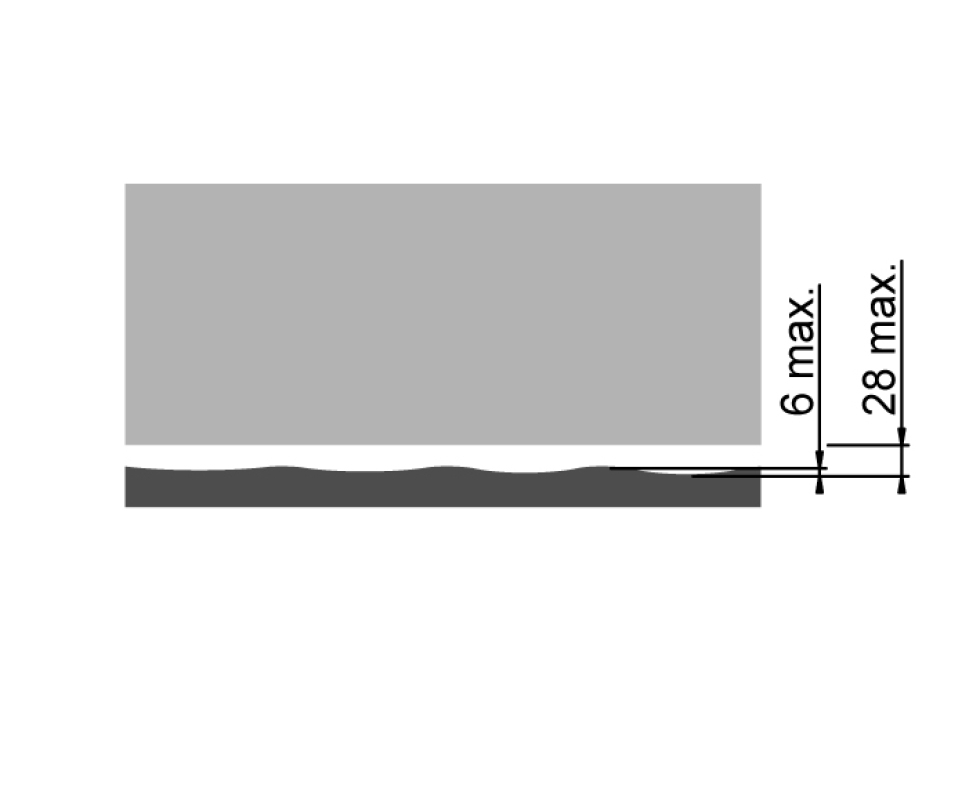

- Max gap: 28 mm
- Minimal gap: 8,5 mm

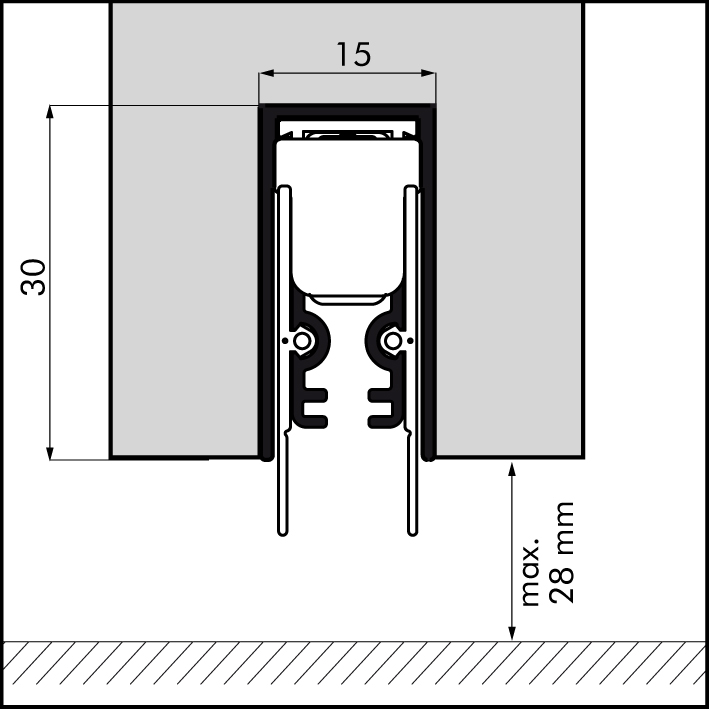

- Groove size: 15 x 30 mm
- Standard lengths can be shortened by 150 mm
Specifications drop seal
All standard lengths can be shortened by 150 mm.
| LENGTH | ART.NR | EAN (PC.) | UNIT |
| 628 mm | 203300121 | 8711286240470 | 10 pc. |
| 728 mm | 203300122 | 8711286240487 | 10 pc. |
| 828 mm | 203300123 | 8711286240494 | 10 pc. |
| 928 mm | 203300124 | 8711286240609 | 10 pc. |
| 1028 mm | 203300125 | 8711286240616 | 10 pc. |
| 1128 mm | 203300126 | 8711286240623 | 10 pc. |
| 1228 mm | 203300127 | 8711286240630 | 10 st. |
Note: It is possible to purchase the product individually at your local hardware store or home improvement center.
Customized lengths of the EllenMatic Optimal Seal can also be shortened:
| LENGTH FROM | TO | SHORTEST LENGTH |
| 300 mm | 480 mm | 301 mm |
| 481 mm | 730 mm | 481 mm |
| 731 mm | 930 mm | 661 mm |
| 931 mm | 1030 mm | 841 mm |
| 1031 mm | 1230 mm | 1021 mm |
| 1231 mm | 1380 mm | 1201 mm |
| 1381 mm | 1600 mm | 1381 mm |
Montage advies
Draft and noise in the house can easily be stopped by correctly installing the drop seal. Read the supplied installation instructions, watch the video and follow the step-by-step plan.
Prepare the necessary materials in advance:
- Tape measure or folding rule
- Pencil
- Hacksaw
- File
- Drill with Phillips bit
Step-by-step guide: installing EllenMatic Optimal Seal
- Measure the groove dimensions in the door to ensure that the drop seal fits in the groove
- Then measure the width of the door to determine the length of the drop seal
- Remove the mounting plates and activator button
- Pull the seal back towards the activator button side
- Mark the correct length on the drop seal
Note: shorten on the non-activator button side! - Cut the drop seal to size
- File off any burrs that may have formed on the aluminium
- Slide the seal back. Ensure that there is enough seal protruding edge on each side for optimum sealing of the corners
- Cut off the excess seal
- Slide the drop seal into the groove and secure with the mounting plates
- Slide the activator button into the opening until it clicks into place
- Adjust the drop seal until the desired sealing is achieved
- Test the sealing using a piece of paper > the paper must be secure, but must not tear
