DRAUGHT PROOFING DOORS & WINDOWS

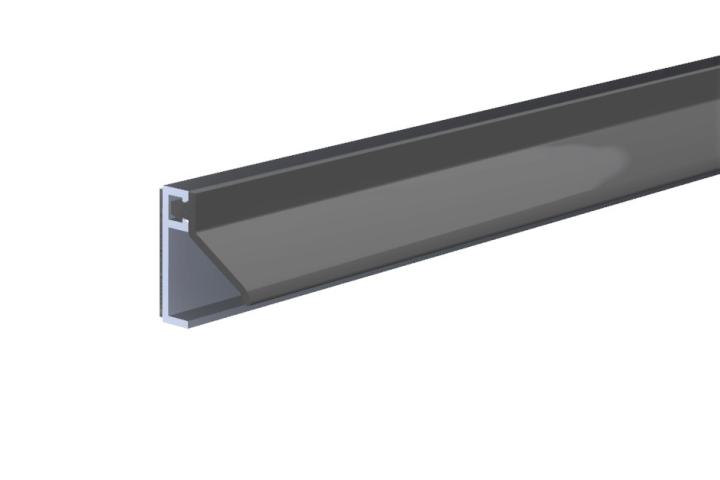

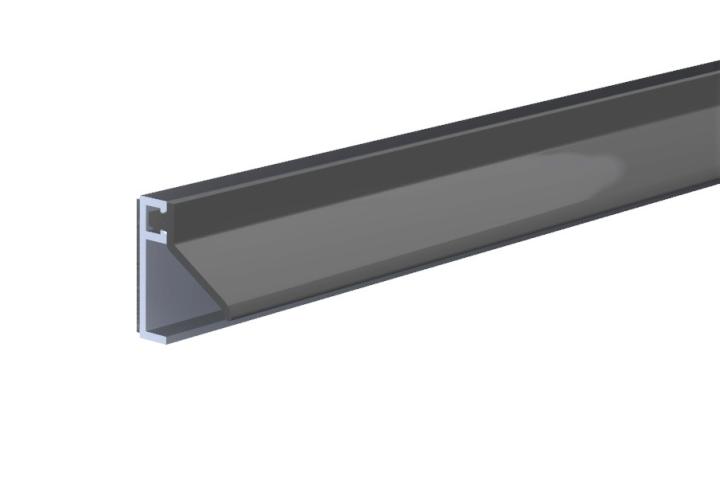

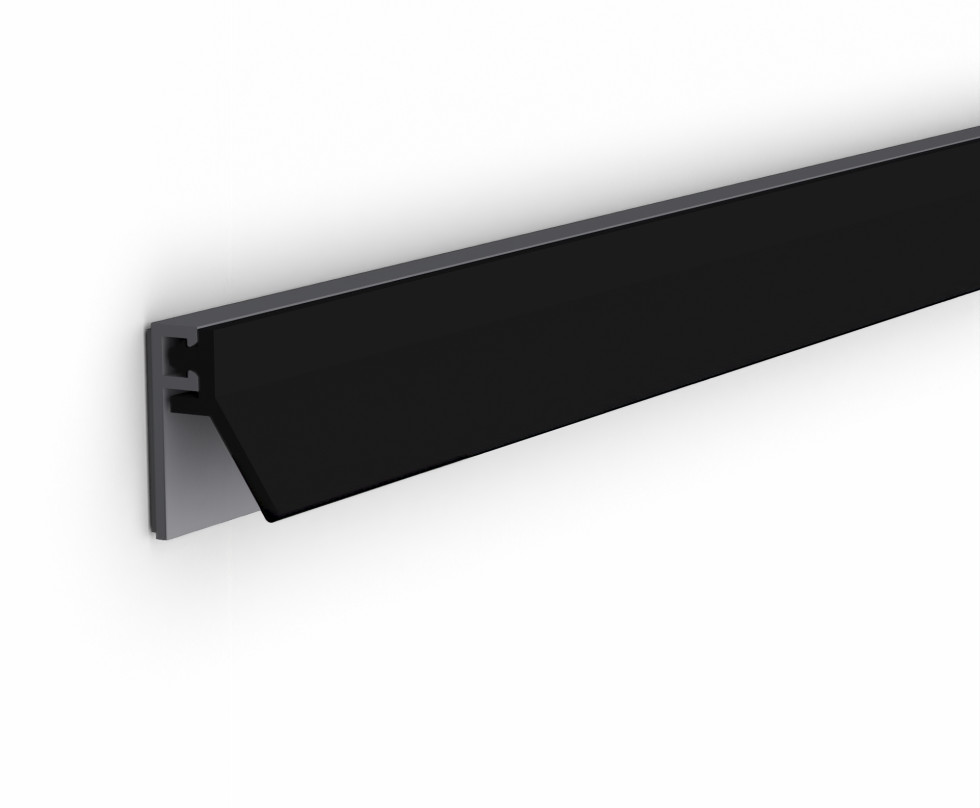

Rebate perimeter seal AIB 4N ZK is a draught excluder to prevent draughts around windows and doors. The draught excluder is equipped with self-adhesive tape for easy installation in the frame of inward and outward opening windows and doors.
The draught excluder is available with self-adhesive tape for wooden frames and for steel frames.
Description
- Aluminium profile
- Plastic seal (TPE)
- Quick and easy to attach
- Self-adhesive tape
- For wooden and steel frames
- Application: inward and outward moving doors and windows
- Customization possible
Technical details

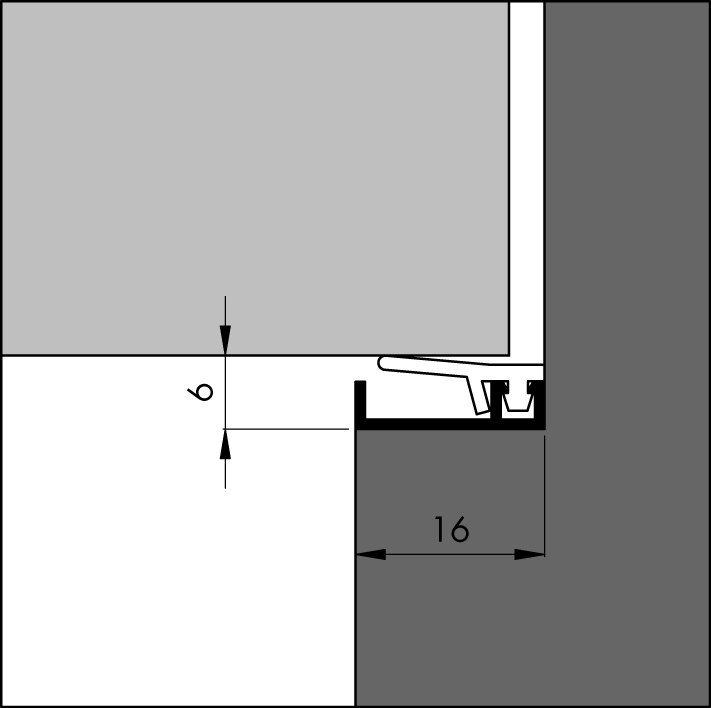

- Max gap: 6 mm
- Width x heigt: 16 mm x 6 mm
- Clearance gap: 6 mm
Specifications
All standard lengths can be cut to size.
| LENGTH | ART.NR | COLOUR | EAN (PC.) | UNIT |
| 230 cm | 310502223 | Alu. | 8711286262448 | 25 pcs./tube |
| 300 cm | 310502230 | Alu. | 8711286262431 | 25 pcs./tube |
Note: It is possible to purchase the wear strip individually at your local hardware store or home improvement center.
Performance
Classification according to NEN EN 12365: W43133.
Montage advies
Draft can easily be stopped by correctly installing the rebate perimeter seal. Read the supplied installation instructions, watch the video and follow the step-by-step plan.
Prepare the necessary materials in advance:
- Tape measure or folding rule
- Pencil
- Hacksaw and file
Step-by-step guide: installing rebate perimeter seal AIB 4N ZK
- Measure the width of the top of the frame
- Cut the profile to size.
- Draw the correct length on the profile
- Cut the profile to size
- File off any sharp edges of the aluminium that may have formed
- Place the rebate perimeter seal. Press firmly.
- Measure the closing side of the door, shorten the profile to the correct size and place the rebate perimeter seal from top to bottom
- Finally, measure the hinge side of the door, shorten the profile to the correct size and place the rebate perimeter seal from top to bottom
