DRAUGHT PROOFING DOORS & WINDOWS
Rebate perimeter seal AIB 3N XL is the solution for a draughty front door or back door. The silicone seal ensures optimum airtightness and impact damping.

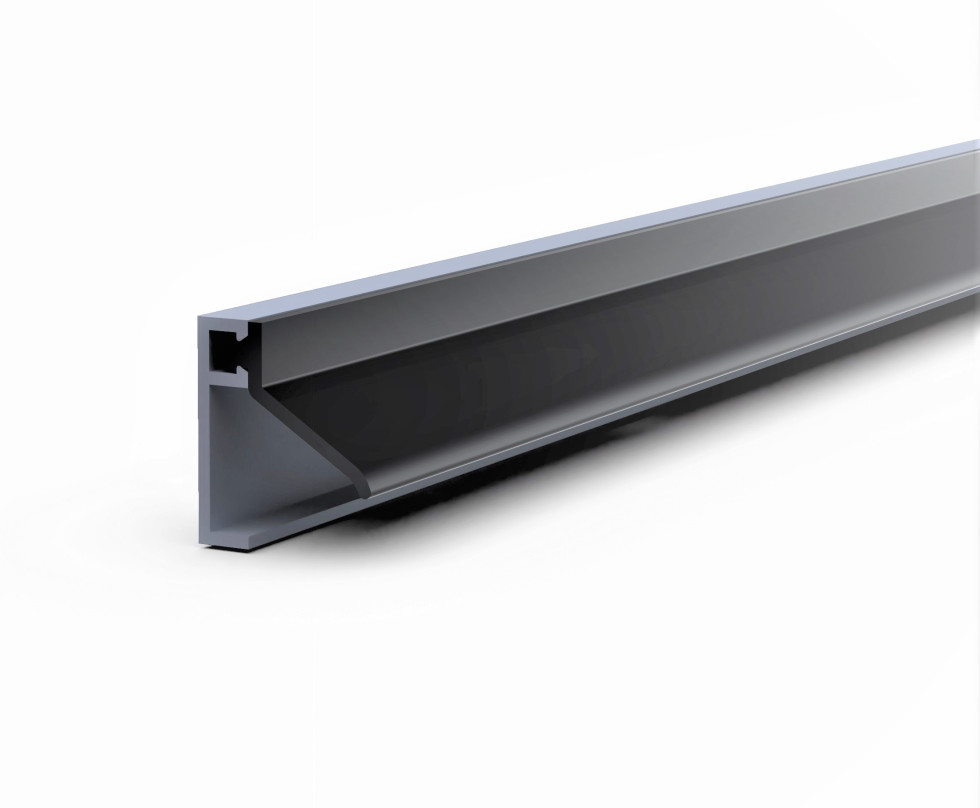

The aluminium draught profile is mounted in the rebate of the window or door frame. Correct mounting is essential for the profile to function properly.
Description
- Aluminium profile
- Silicone seal
- Large operating range, maximum gap 13 mm
- Easy installation
- The draught excluder can be attached using a tacker
- Application: inward and outward moving doors and windows
- Customization possible
Technical details

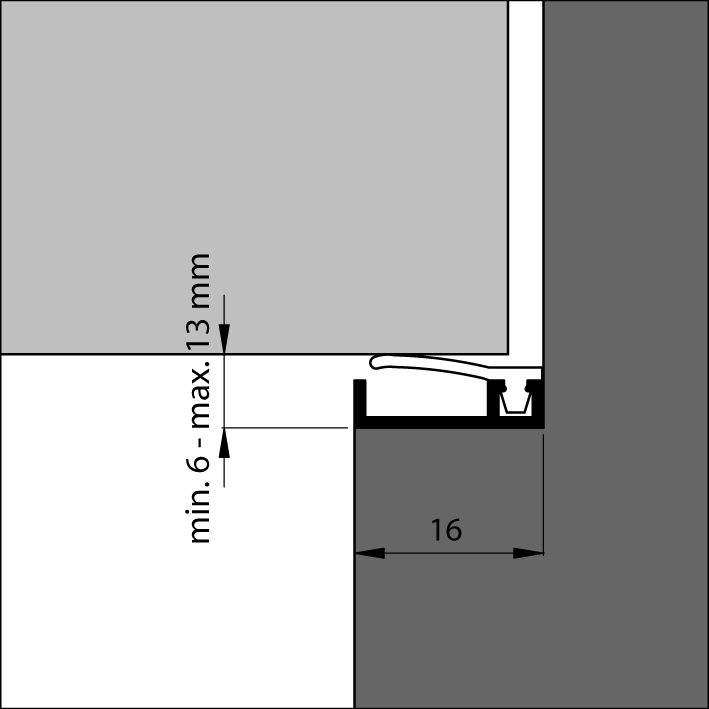

- Gap coverage: 6 mm - 13 mm
- Rebate width: 16 mm
- Clearance: 6 mm
- Mount using 2,5 x 16 mm screws
- Pre-drilled 2,8 mm
Specifications
All standard lengths can be cut to size.
| LENGTH | ART.NR | COLOUR | EAN (PC.) | UNIT |
| 230 cm | 310110923 | Alu. | 8711286260270 | 25 pcs./tube |
| 300 cm | 310110930 | Alu. | 8711286260287 | 25 pcs./tube |
Note: It is possible to purchase the wear strip individually at your local hardware store or home improvement center.
Performance
- C-value 0,03238 dm³/s.m 1. Paⁿ (class 3)
- Classification according to NEN EN 12365: W54177
Installation advice
Draught can easily be stopped by correctly installing the rebate perimeter seal. The wind pressure ensures that the sealing lip is pushed against the rotating part on the closing and top side.
Read the supplied installation instructions, watch the video and follow the step-by-step plan.
Prepare the necessary materials in advance:
- Tape measure or folding rule
- Pencil
- Hacksaw and file
- Drill with Phillips bit
Step-by-step guide: installing rebate perimeter seal AIB 3N XL
- Measure the width of the top of the frame
- Cut the profile to size. Note: average the hole pattern for optimal attachment
- Draw the correct length on the profile
- Cut the profile to size
- File off any sharp edges of the aluminium that may have formed
- Place the rebate perimeter seal > Pay attention to the correct placement direction
- Measure the closing side of the door, shorten the profile to the correct size and place the rebate perimeter seal from top to bottom
- Finally, measure the hinge side of the door, shorten the profile to the correct size and place the rebate perimeter seal from top to bottom
