DRAUGHT PROOFING DOORS & WINDOWS

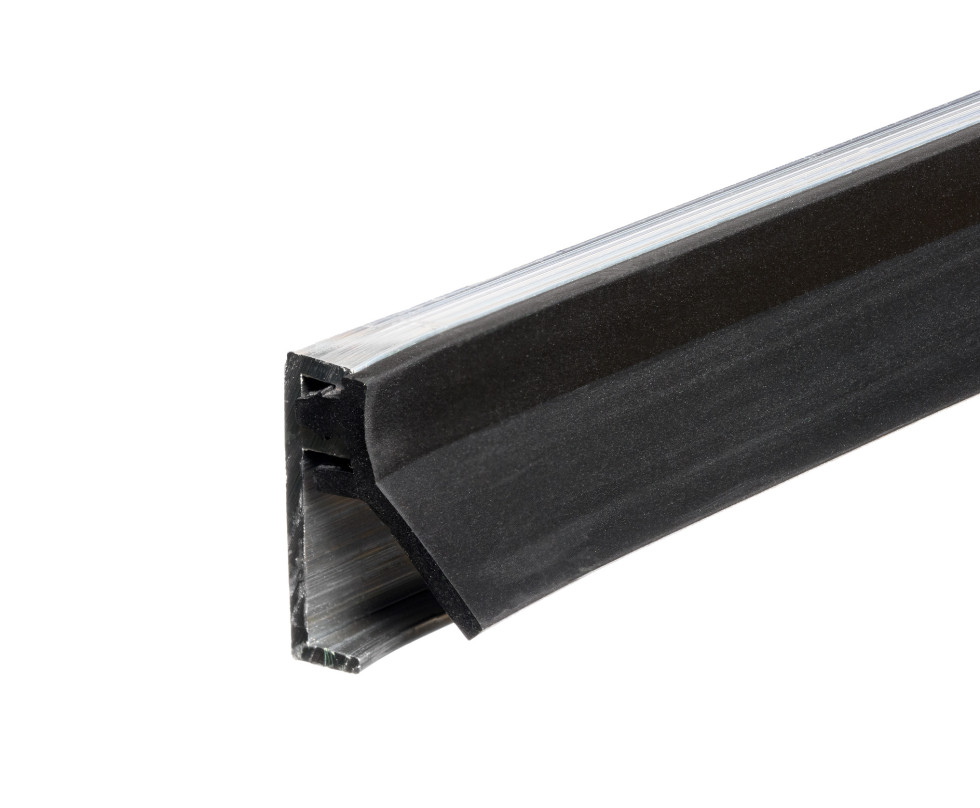

Aluminium rebate perimeter seal AIB 4N is a draught profile to prevent draughts at windows and doors. The plastic seal (TPE) has a low closing resistance for optimum ease of use.
The draught profile can be used for inward and outward opening windows and doors.
Description
- Aluminium profile (quality 6060 T66)
- Plastic (TPE) seal
- Low closing resistance
- Quick and easy to attach
- Can also be mounted with tacker
- Application: inward and outward moving doors and windows
- Customization possible
Technical details
- Max gap: 6 mm
- Rebate width: 16 mm
- Clearance gap: 6 mm
- Pre-drilled: 2,8 mm
- Mount using screws n ø2,5 x 16 mm or nails ø1,6 x 25 mm
Specifications
All standard lengths can be cut to size.
| LENGTH | ART.NR | COLOUR | EAN (PC.) | UNIT |
| 230 cm | 310500223 | Alu. | 8711286262205 | 25 pcs./tube |
| 300 cm | 310500230 | Alu. | 8711286262236 | 25 pcs./tube |
Note: It is possible to purchase the wear strip individually at your local hardware store or home improvement center.
Performance
Classification according to NEN EN 12365: W43133.
Installation advice
Draft can easily be stopped by correctly installing the rebate perimeter seal. Read the supplied installation instructions, watch the video and follow the step-by-step plan.
Prepare the necessary materials in advance:
- Tape measure or folding rule
- Pencil
- Hacksaw and file
- Drill with Phillips bit
Step-by-step guide: installing rebate perimeter seal AIB 4N
- Measure the width of the top of the frame
- Cut the profile to size. Note: average the hole pattern for optimal attachment
- Draw the correct length on the profile
- Cut the profile to size
- File off any sharp edges of the aluminium that may have formed
- Place the rebate perimeter seal
- Measure the closing side of the door, shorten the profile to the correct size and place the rebate perimeter seal from top to bottom
- Finally, measure the hinge side of the door, shorten the profile to the correct size and place the rebate perimeter seal from top to bottom
