DRAUGHT PROOFING DOORS & WINDOWS

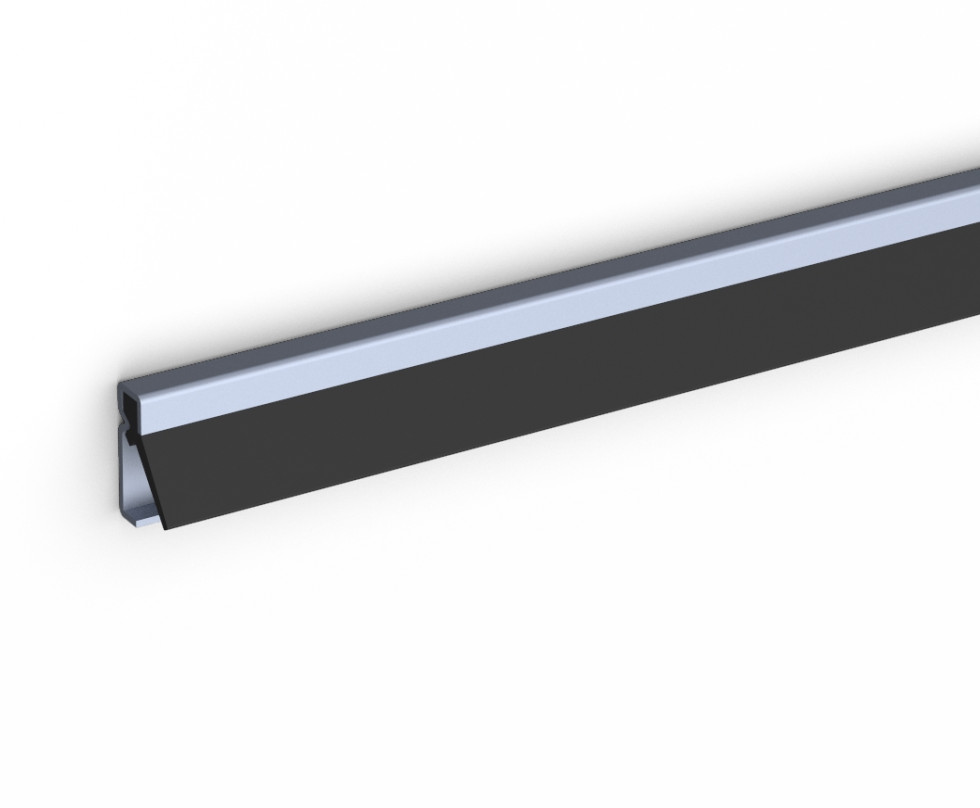

Rebate perimeter seal AIB 4G is a draught excluder to prevent draughts around windows and doors.
This draught excluder can be used for inward and outward opening windows and doors.

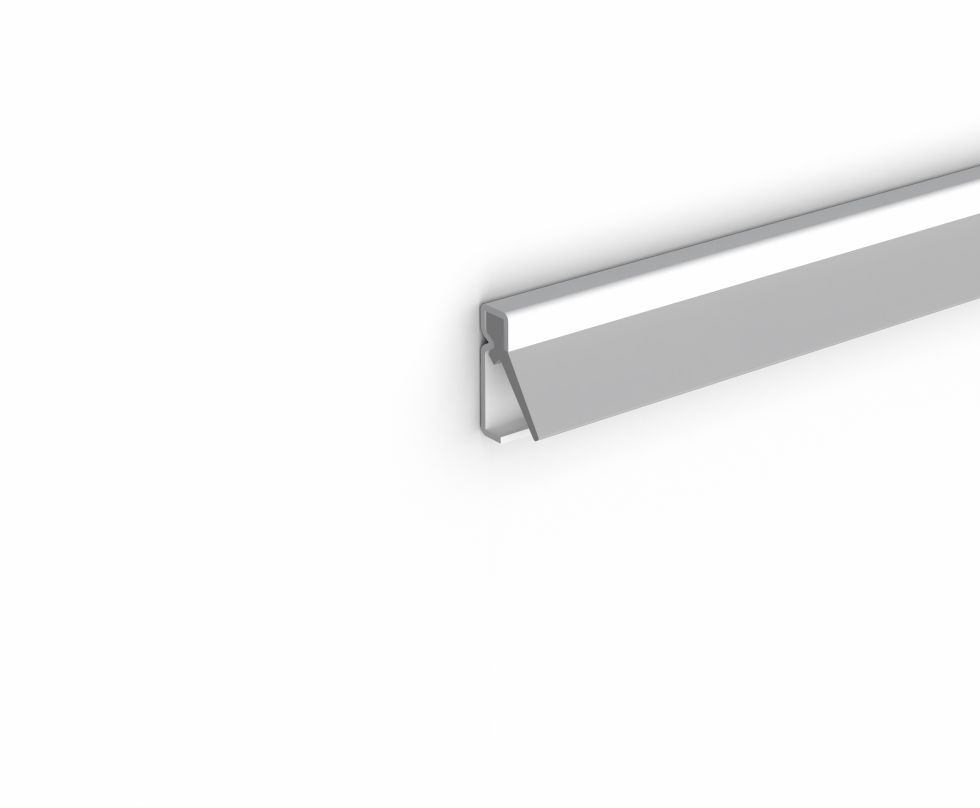

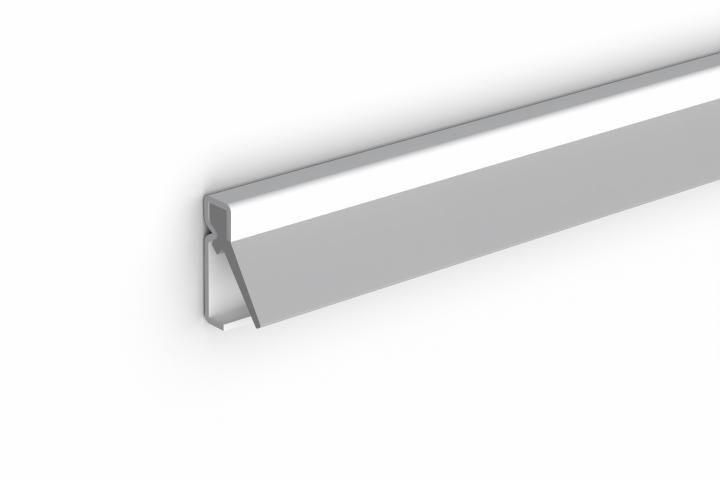

Also available in a completely white version (RAL9010).
Description
- Aluminium rolled profile (quality 6060 T66)
- Plastic seal (TPE)
- Quick and easy to attach
- Can also be mounted with a tacker
- Application: inward and outward moving doors and windows
- Also available in white

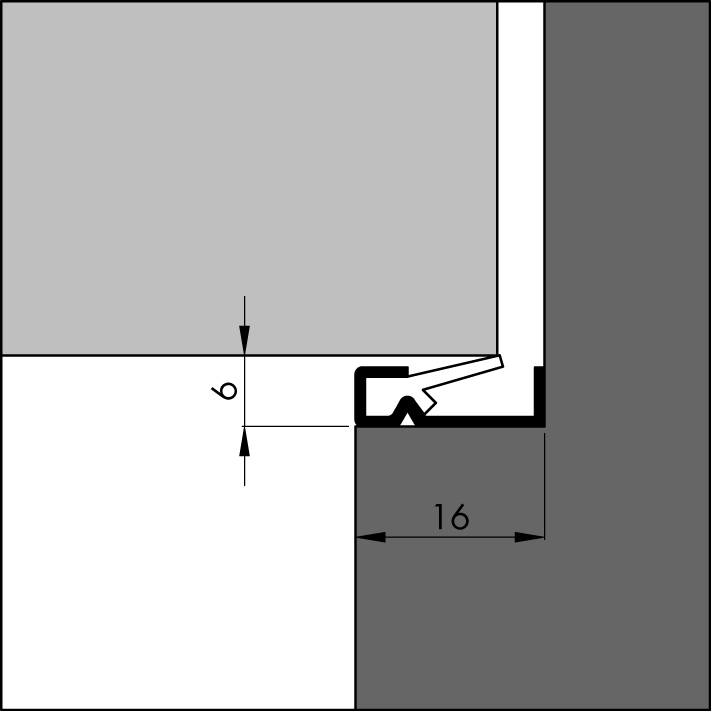

Technical details
- Max gap: 9,5 mm
- Rebate width: 16 mm
- Clearance gap: 6 mm
- Pre-drilled: 2,8 mm
- Mount using Ellen screws ø2,5 x 16 mm or Ellen nails ø1,6 x 25 mm
Specifications
All standard lengths can be cut to size.
Articles with pre-drilled holes:
| LENGTH | ART.NR | COLOUR |
EAN (PC.) | UNIT |
| 220 cm | 320100222 | Alu. | 8711286270224 | 25 pcs./tube |
| 230 cm | 320100223 | Alu. | 8711286270200 | 25 pcs./tube |
| 240 cm | 320100225 | Alu. | 8711286270248 | 25 pcs./tube |
| 300 cm | 320100230 | Alu. | 8711286270231 | 25 pcs./tube |
| 230 cm | 320201223 | White | 8711286271207 | 25 pcs./tube |
| 300 cm | 320201230 | White | 8711286271238 | 25 pcs./tube |
Articles without pre-drilled holes:
| LENGTH | ART.NR | COLOUR | EAN (PC.) | UNIT |
| 220 cm* | 320101222 | Alu. | 8711286273225 | 25 pcs./tube |
| 230 cm* | 320101224 | Alu. | 8711286273249 | 25 pcs./tube |
| 240 cm* | 320101225 | Alu. | 8711286273256 | 25 pcs./tube |
| 300 cm* | 320101223 | Alu. | 8711286273232 | 25 pcs./tube |
Note: It is possible to purchase the wear strip individually at your local hardware store or home improvement center.
Performance
Classification according to NEN EN 12365: W43133.
Installation advice
Draft can easily be stopped by correctly mounting the rebate perimeter seal. The wind pressure ensures that the sealing lip is pushed against the rotating part on the closing and top side.
Read the supplied mounting instructions, watch the video and follow the step-by-step plan.
Prepare the necessary materials in advance:
- Tape measure or folding rule
- Pencil
- Hacksaw and file
- Drill with Phillips bit
Step-by-step guide: installing rebate perimeter seal AIB 4G
- Measure the width of the top of the frame
- Cut the profile to size. Note: average the hole pattern for optimal attachment
- Draw the correct length on the profile
- Cut the profile to size
- File off any sharp edges of the aluminium that may have formed
- Place the rebate perimeter seal
- Measure the closing side of the door, shorten the profile to the correct size and place the rebate perimeter seal from top to bottom
- Finally, measure the hinge side of the door, shorten the profile to the correct size and place the rebate perimeter seal from top to bottom
