DRAUGHT PROOFING DOORS

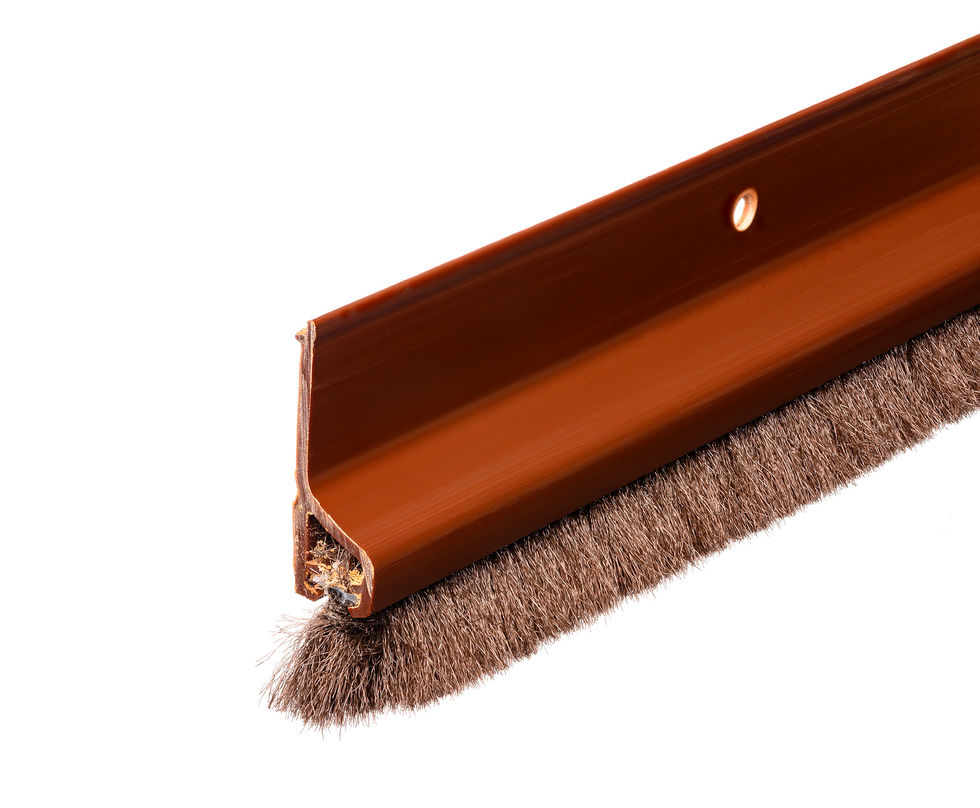

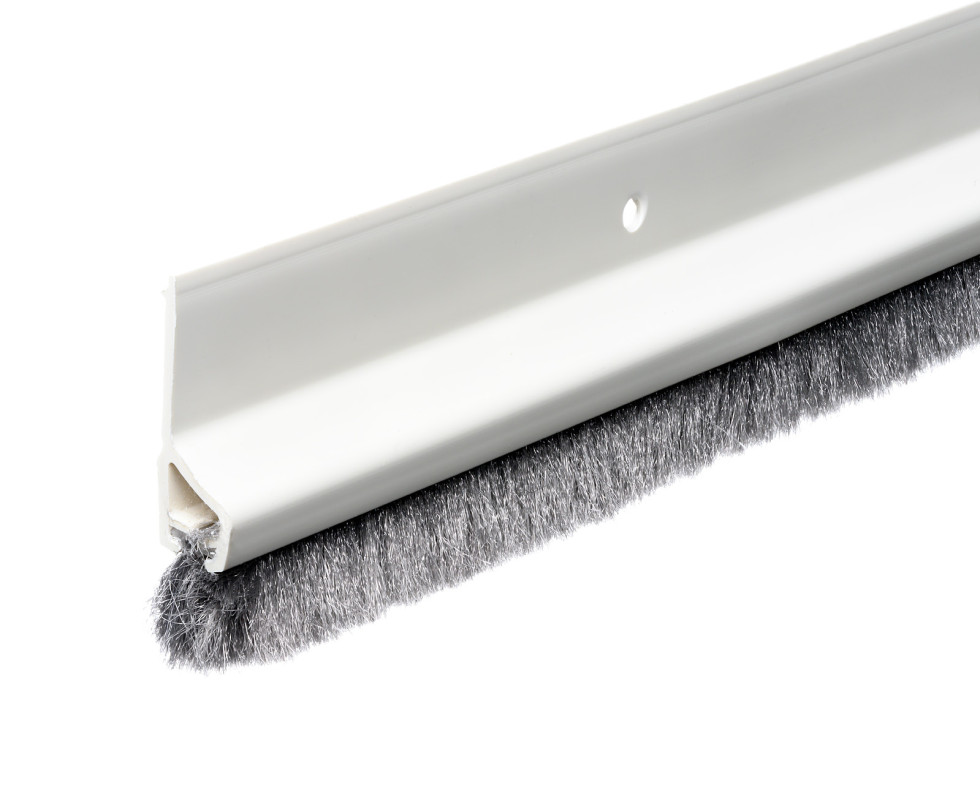

Hard plastic door bottom seal with velvet brush, for mounting on the bottom of the door.
The profile is suitable for interior doors without a dust threshold. Ideal for 'threshold-free' houses where floors run from one room to the next.
Available in white, brown and black.
Description
- Hard plastic profile
- Soft velvet brush
- Available in white, brown and black
- Draught proofing
- Application: interior doors
- Pre-drilled 2,8 mm, with countersunk screw holes
- Can be cut to the right length
Technical details
- Max gap: 20 mm
- Width x height: 8 mm x 40 mm
- Standard length: 100 cm
Specifications
All standard lenghts can be cut to size.
| LENGTH | ART.NR | COLOUR | EAN (PC.) | UNIT |
| 100 cm | 110501050 | Wit | 8711286861200 | 6 pc. |
| 100 cm | 110502050 | Bruin | 8711286861408 | 6 pc. |
| 100 cm | 110504050 | Zwart | 8711286339228 | 6 [c. |
Note: It is possible to purchase the product individually at your local hardware store or home improvement center.
Installation advice
To ensure the door bottom seal functions properly, it is important to install it correctly. Please read the included mounting instructions and follow the step-by-step guide.
Prepare the necessary materials in advance:
- Tape measure or folding ruler
- Pencil
- Hacksaw and file
- Drill with a Phillips bit
Step-by-step guide: installing door bottom seal PDS 3B Deco
- Measure the width of the door to determine the length of the door bottom seal
- Mark the correct length on the door bottom seal. Note: average the hole pattern for optimal fixation
- Cut the door bottom seal to size
- File off any burrs that may have formed on the plastic
- Place the door bottom seal on the bottom of the door, with the brush sealing of the gap between the door and the floor
- Screw the door bottom seal in place
