DRAUGHT PROOFING DOORS

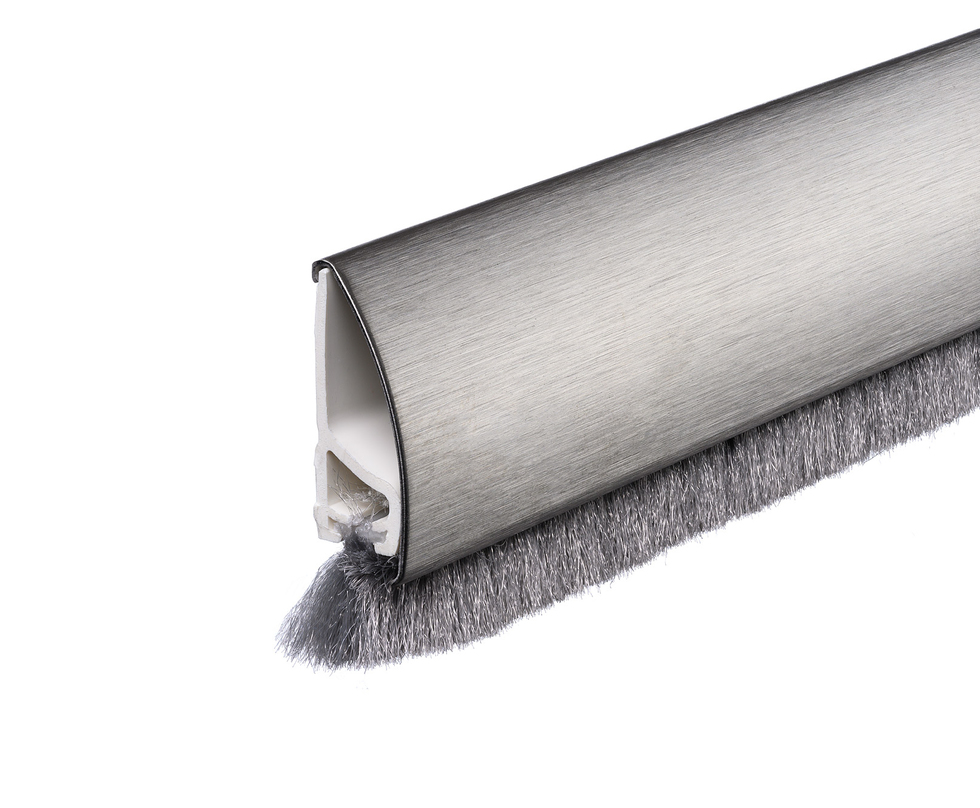

Stainless steel door bottom seal for sealing off gaps between the door and the floor. The profile is fitted with a soft velvet brush, which is ideal for 'threshold-free' homes with a wooden floor or other hard surfaces.
This door bottom seal is suitable for interior doors as well as sliding doors, where dust thresholds are missing.

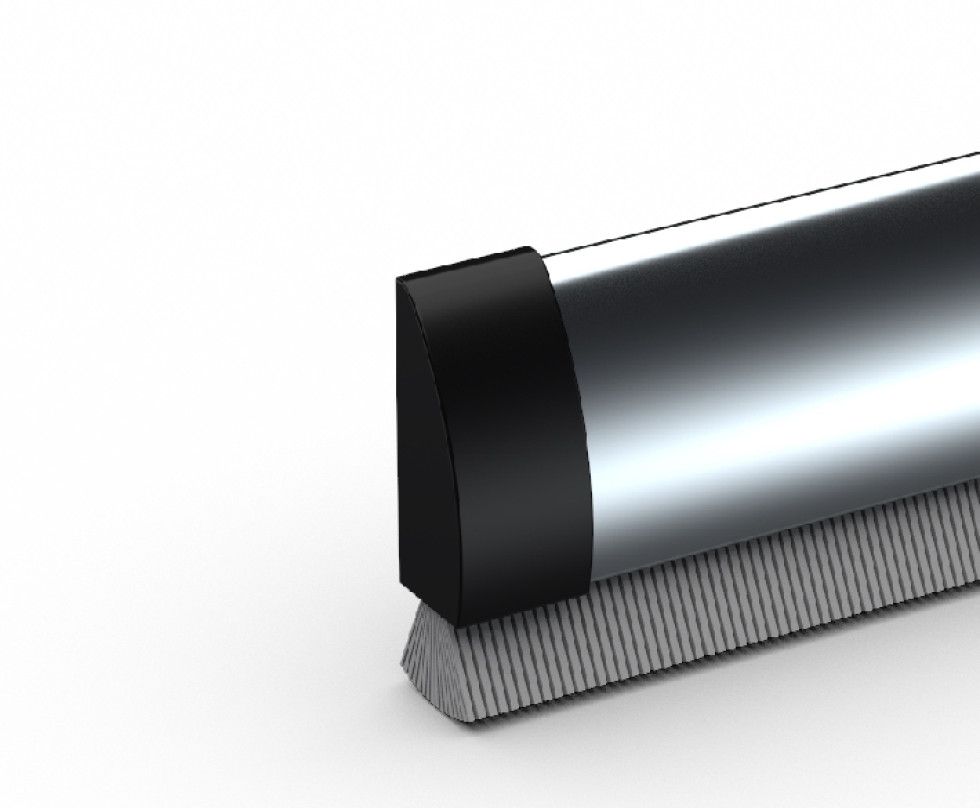

The end caps ensure a stylish look.
Description
- Stainless steel profile
- Soft velvet brush
- Draught proofing doors
- End caps included
- Application: interior and sliding doors
- Screws not visible
- Screws for mounting included
- Can be cut to size

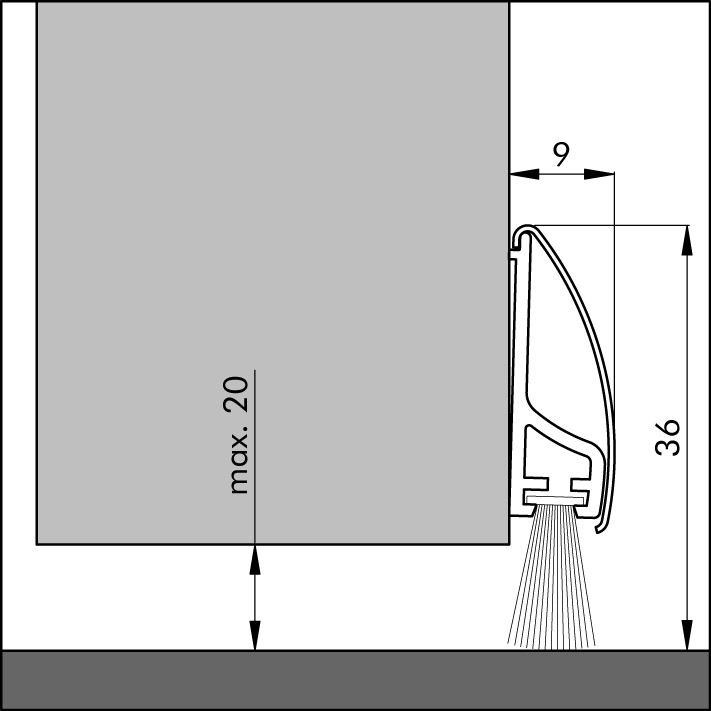

Technical details
- Max gap: 20 mm
- Width x height: 9 mm x 36 mm
- Standard length 100 cm
Specifications
Standard lengths can be cut to size.
| LENGTH | ART.NR | COLOUR | EAN (PC.) | UNIT |
| 100 cm | 030600050 | Ano. | 8711286860302 | 6 pc. |
Note: It is possible to purchase the product individually at your local hardware store or home improvement center.
Installation advice
To ensure the door bottom seal functions properly, it is important to install it correctly. Please read the included mounting instructions and follow the step-by-step guide.
Prepare the necessary materials in advance:
- Tape measure or folding ruler
- Pencil
- Hacksaw and file
- Drill with a Phillips bit
Step-by-step guide: installing door bottom seal Inox de Luxe
- Measure the width of the door to determine the length of the door bottom seal
- Mark the correct length on the door bottom seal. Note: average the hole pattern for optimal fixation
- Cut the door bottom seal to size
- File off any burrs that may have formed on the aluminum
- Place the door bottom seal on the bottom of the door, with the brush sealing of the gap between the door and the floor
- Screw the door bottom seal in place
- Place the end caps
