DRAUGHT PROOFING DOORS

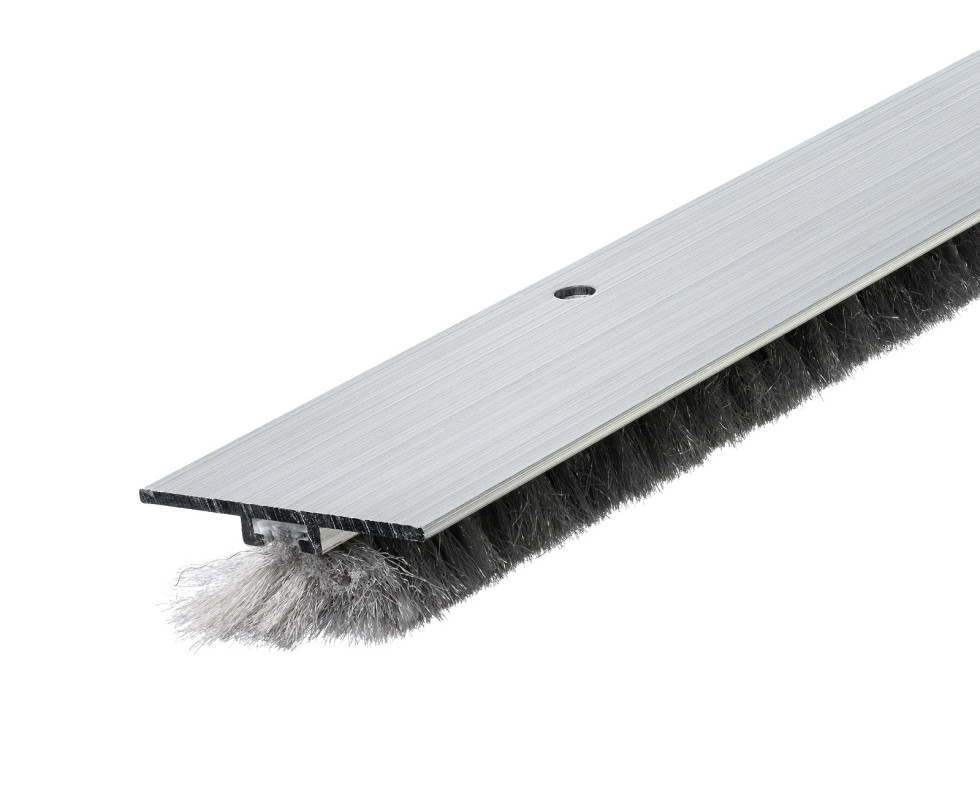

Aluminium door bottom seal for 'invisible' mounting under the door.
The profile is equiped with a soft velvet brush, which is ideal for 'threshold-free' homes with a wooden floor or other hard surfaces.
The DBS Invisible is suitable for interior doors, where dust thresholds are absent.
Description
- Aluminium profile
- Grey velvet brush
- Invisible under the door
- Draught proofing doors
- Application: interior doors
- 100 cm variant contains screws for mounting
- Can be cut to the right length
Technical details

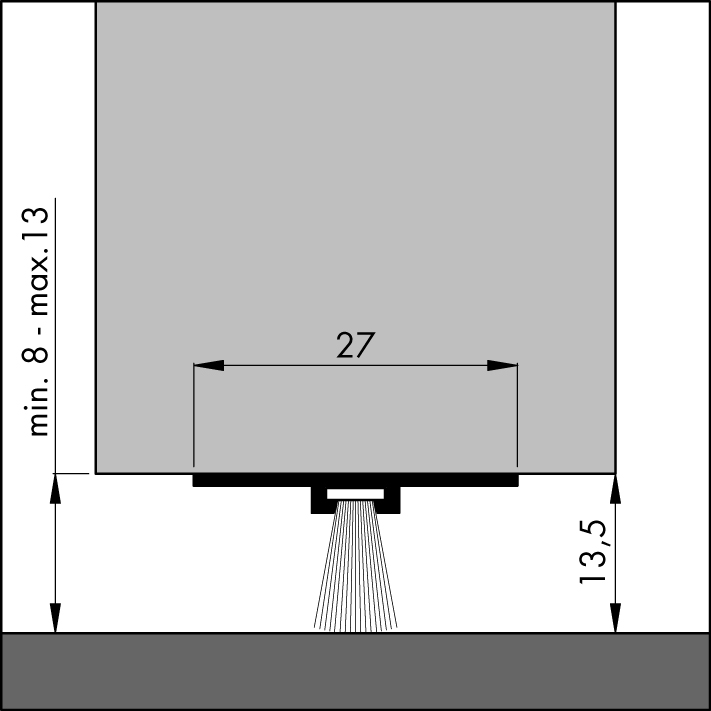

- Gap coverage 8 mm - 13 mm
- Total width 27 mm
- Pre-drilled 2,8 mm
Specifications
All standard lengths can be cut to size.
| LENGTH | ART.NR | COLOUR | EAN (PC.) | UNIT |
| 100 cm | 030700050 | Alu | 8711286861606 | 6 pc. |
| 300 cm | 030700030 | Alu | 8711286116232 | 10 pc. |
Note: It is possible to purchase the product individually at your local hardware store or home improvement center.
Installation advice
To ensure the door bottom seal functions properly, it is important to install it correctly. Please read the included mounting instructions and follow the step-by-step guide.
Prepare the necessary materials in advance:
- Tape measure or folding ruler
- Pencil
- Hacksaw and file
- Drill with a Phillips bit
Step-by-step guide: installing door bottom seal DBS Invisible
- Measure the width of the door to determine the length of the door bottom seal
- Mark the correct length on the door bottom seal. Note: average the hole pattern for optimal fixation
- Cut the door bottom seal to size
- File off any burrs that may have formed on the aluminum
- Place the door bottom seal on the bottom of the door, with the brush sealing of the gap between the door and the floor
- Screw the door bottom seal in place
