DRAUGHT PROOFING DOORS

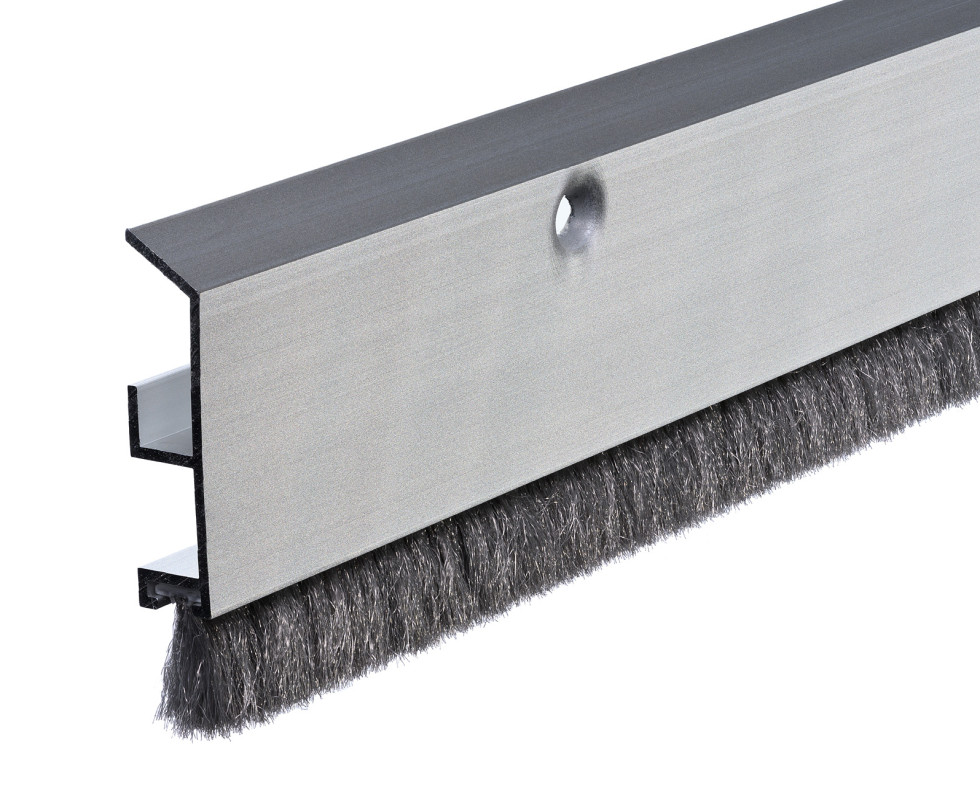

Aluminium profile to be placed on the bottom of doors to prevent draught. The profile is fitted with a soft velvet brush, ideal for spaces without tresholds like wooden floors or other hard surfaces.
The ADS B Robust can be used for interior doors or sliding doors. The anodization ensures a beautiful looking profile that fits in many interior styles.
The centre support in the profile makes it possible to seal a large gap under the door.
Description
- Anodised aluminium profile
- Soft grey velvet brush
- Draught proofing inside the house
- Large gap coverage
- Application: interior and sliding doors
- For different 'rough' surfaces without tresholds
- 100 cm variant contains screws for mounting
- Pre-drilled 3,2 mm with countersunk screw holes

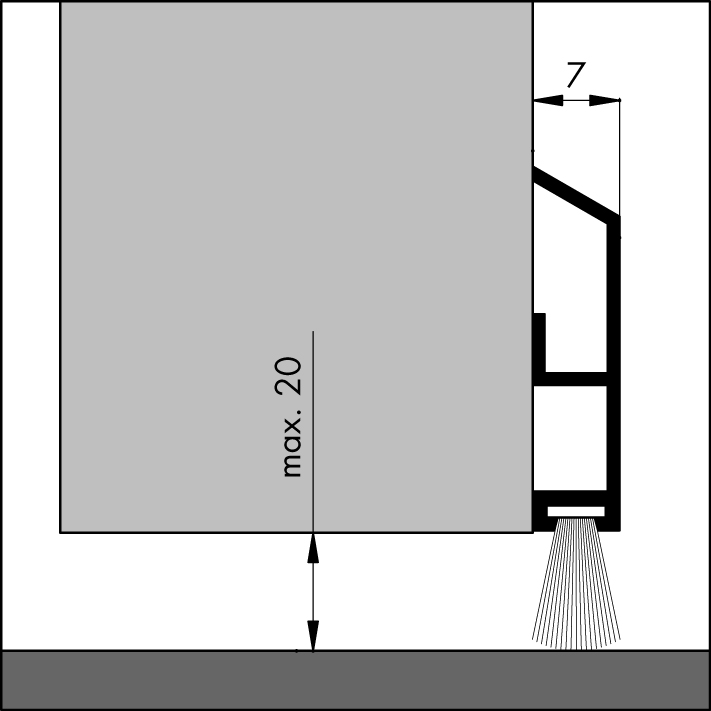

Technical details
- Max gap: 20 mm
- Width x height: 7 mm x 40 mm
- Can be cut to size
Specifications
All standard lengths can be shortened
| LENGTH | ART.NR | COLOUR | EAN (PC.) | UNIT |
| 100 cm | 030550050 | Ano. | 8711286860203 | 6 pc. |
| 300 cm | 030550030 | Ano. | 8711286114238 | 10 pc. |
Note: It is possible to purchase the product individually at your local hardware store or home improvement center.
Installation advice
To ensure the door bottom seal functions properly, it is important to install it correctly. Please read the included mounting instructions and follow the step-by-step guide.
Prepare the necessary materials in advance:
- Tape measure or folding ruler
- Pencil
- Hacksaw and file
- Drill with a Phillips bit
Step-by-step guide: installing door bottom seal ADS B Robust
- Measure the width of the door to determine the length of the door bottom seal
- Mark the correct length on the door bottom seal. Note: average the hole pattern for optimal fixation
- Cut the door bottom seal to size
- File off any burrs that may have formed on the aluminum
- Place the door bottom seal on the bottom of the door, with the brush sealing of the gap between the door and the floor
- Screw the door bottom seal in place
