DRAFT-PROOFING DOOR
Aluminum wear strip with TPE seal against draft. Perfectly compatible with Ellen perimeter seals.

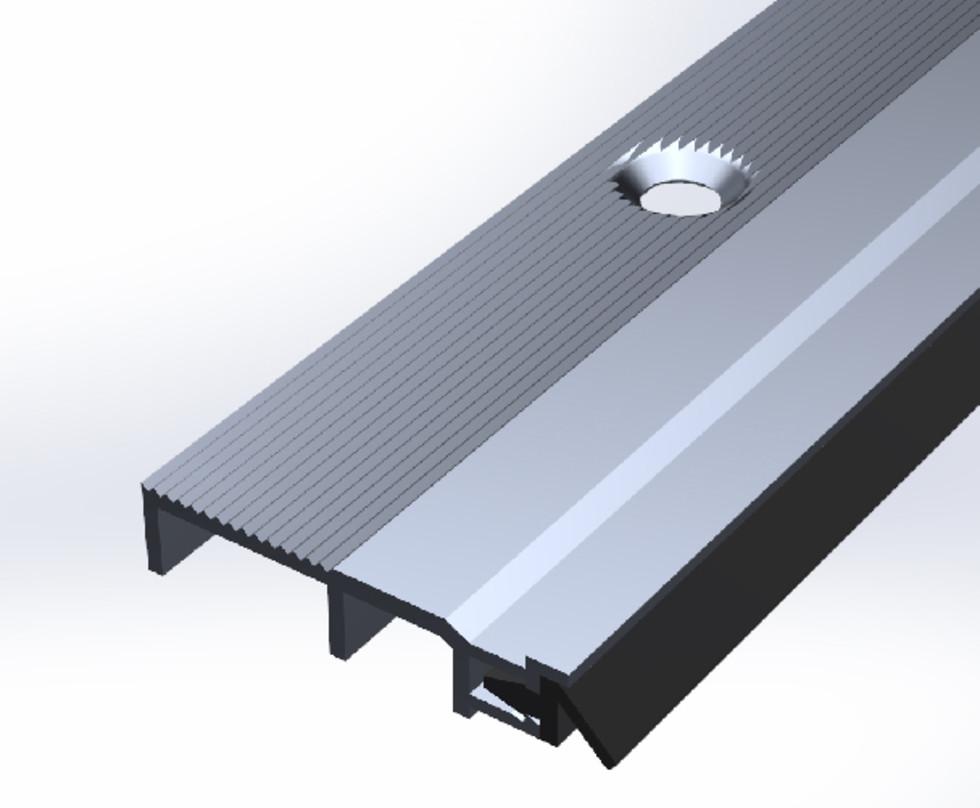

The wear strip ARP 5 - R5 protects the threshold under back doors, patio doors, and balcony doors from wear and tear. Additionally, the profile features an anti-slip design, reducing the risk of slipping on a smooth threshold indoors.
Description
- Aluminum wear strip with seal
- TPE (plastic) seal
- Partially protects the threshold
- Anti-slip and draft-proof profile
Application:
- Suitable for back doors, patio doors, and balcony doors
- Designed for outward-opening doors, such as back doors
- Compatible with DTS BU-V thresholds
Features:
- Can be cut to the desired length
- Pre-drilled 5.8 mm countersunk screw holes
- 100 cm variant includes screws

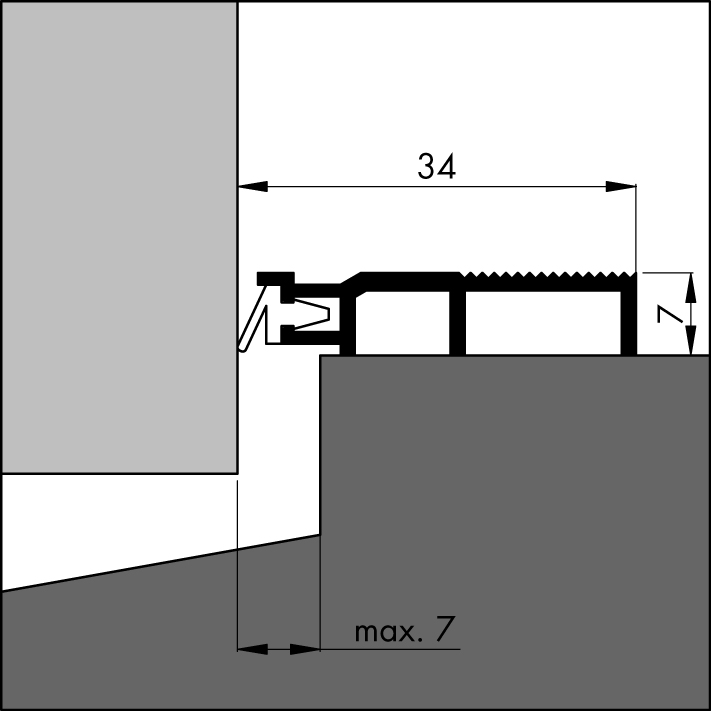

Technical details
- Maximum gap: 7 mm
- Width x height: 34 mm x 7 mm
Specifications
All standard lengths can be cut to size.
| LENGTH | ART. NO. | COLOUR | EAN (PC.) | UNIT |
| 100 cm | 020700050 | Alu. | 8711286840106 | 6 pc. |
| 300 cm | 020700230 | Alu. | 8711286109234 | 10 pc. |
Note: It is possible to purchase the wear strip individually at your local hardware store or home improvement center.
Performance
Classification according to NEN EN 12365: W34143
Installation advice
To ensure the wear strip functions properly, it is important to install it correctly. Please read the included mounting instructions and follow the step-by-step guide.
Prepare the necessary materials in advance:
- Tape measure or folding ruler
- Pencil
- Hacksaw and file
- Drill with a Phillips bit
Step-by-step guide: Installing wear strip ARP 5 - R5
- Measure the length of the threshold to determine the required length of the wear strip.
- Mark the correct length on the wear strip.
- Cut the wear strip to size.
- File off any burrs that may have formed on the aluminum.
- Place the wear strip on the threshold, ensuring the seal is positioned against the door.
- Secure the wear strip with screws.
