DRAFT-PROOFING FRONT DOOR

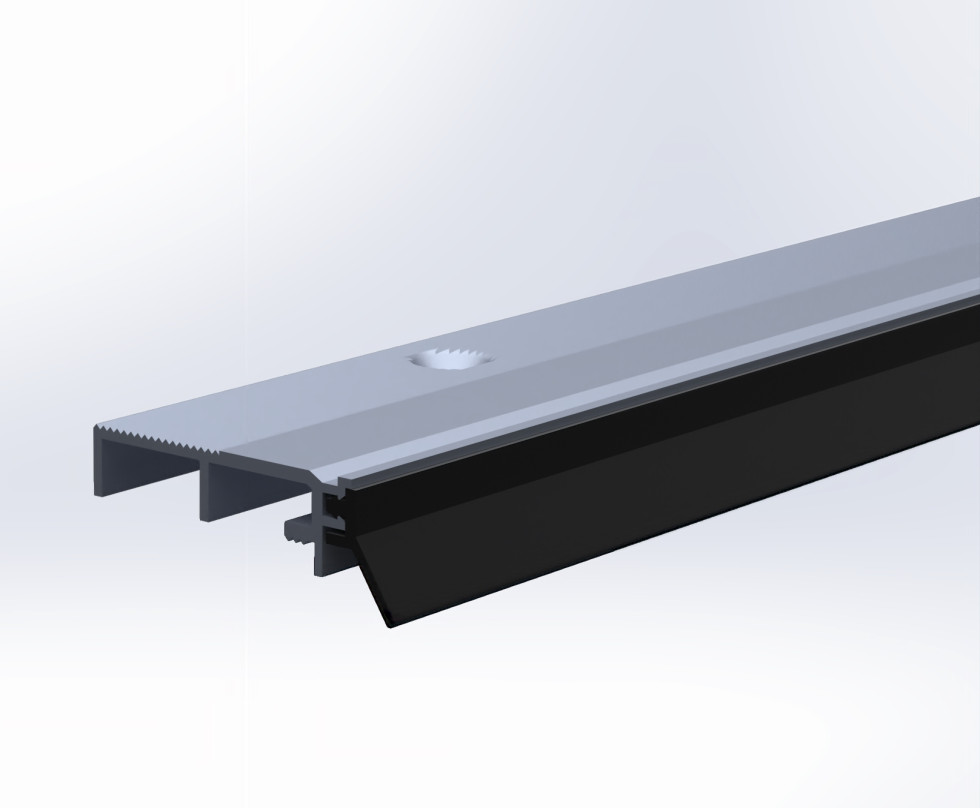

Raised aluminum wear strip with a TPE seal. The wear strip protects the threshold (sill) from wear and keeps drafts out. Thanks to the grooves in the profile, it also helps prevent slipping on a smooth threshold.
Suitable for outward-opening doors with a clearance of 6 mm.
Description
- Aluminum wear strip with seal
- TPE (plastic) seal
- Protects the entire threshold
- Anti-slip and draft-proof
- For doors with a 6 mm clearance
Application:
- For outward-opening doors
Features:
- Can be cut to size

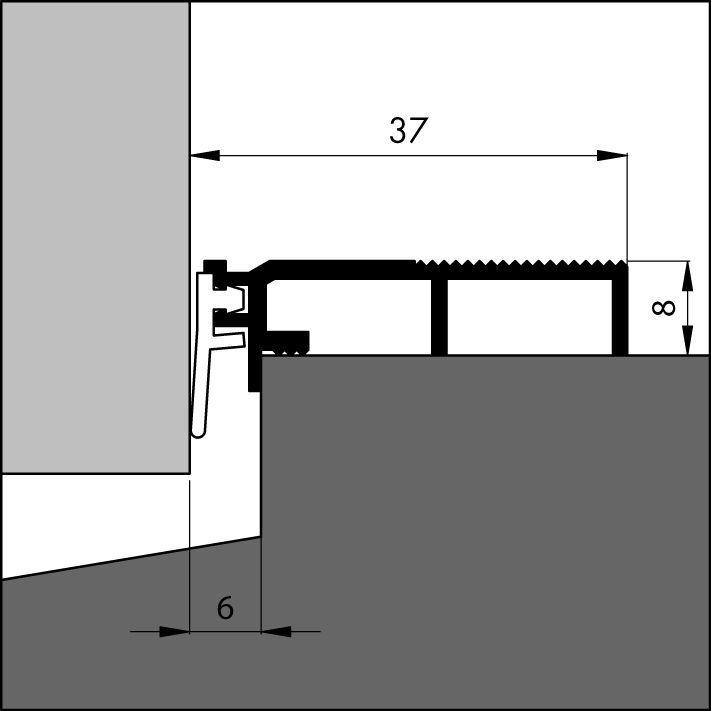

Technical details
- Maximum gap: 6 mm
- Wear strip width: 37 mm
- Height: 8 mm
- Pre-drilled: 5,8 mm
- Countersunk screw holes
Specifications
All standard lengths can be cut to size.
| LENGTH | ART. NO. | COLOUR | EAN (PC.) | UNIT |
| 100 cm | 330700210 | Alu. | 8711286293254 | 10 pc. |
| 300 cm | 330702230 | Alu. | 8711286293230 | 10 pc. |
Note: It is possible to purchase the wear strip individually at your local hardware store or home improvement center.
Performance
Classification according to NEN EN 12365: W43133.
Installation advice
To ensure the wear strip functions properly, it is important to install it correctly. Please read the included MOUNTING instructions and follow the step-by-step guide.
Prepare the necessary materials in advance:
- Tape measure or folding ruler
- Pencil
- Hacksaw and file
- Drill with a Phillips bit
Step-by-step guide: Installing wear strip ANB 6N
- Measure the length of the threshold to determine the required length of the wear strip.
- Mark the correct length on the wear strip.
- Cut the profiles to size.
- File off any burrs that may have formed on the aluminum.
- Place the wear strip on the threshold, ensuring the plastic seal is positioned against the door.
- Secure the wear strip with screws.
