DRAFT-PROOFING DOOR
Aluminum wear strip with a TPE seal against drafts. Suitable for doors with a 6 mm clearance.

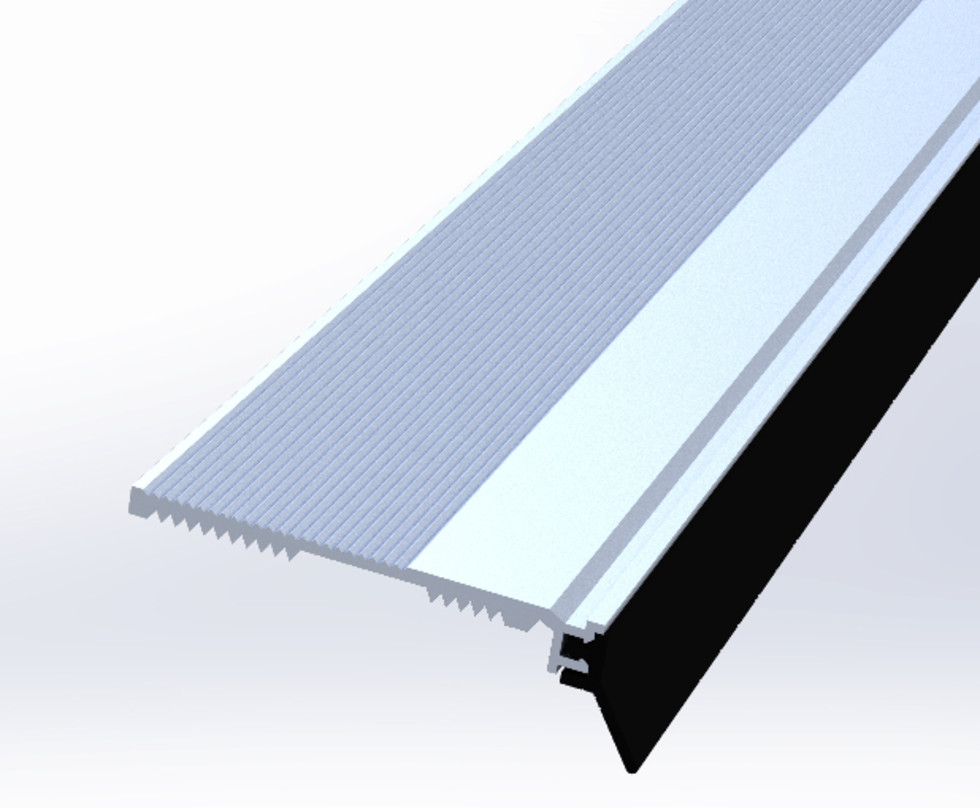

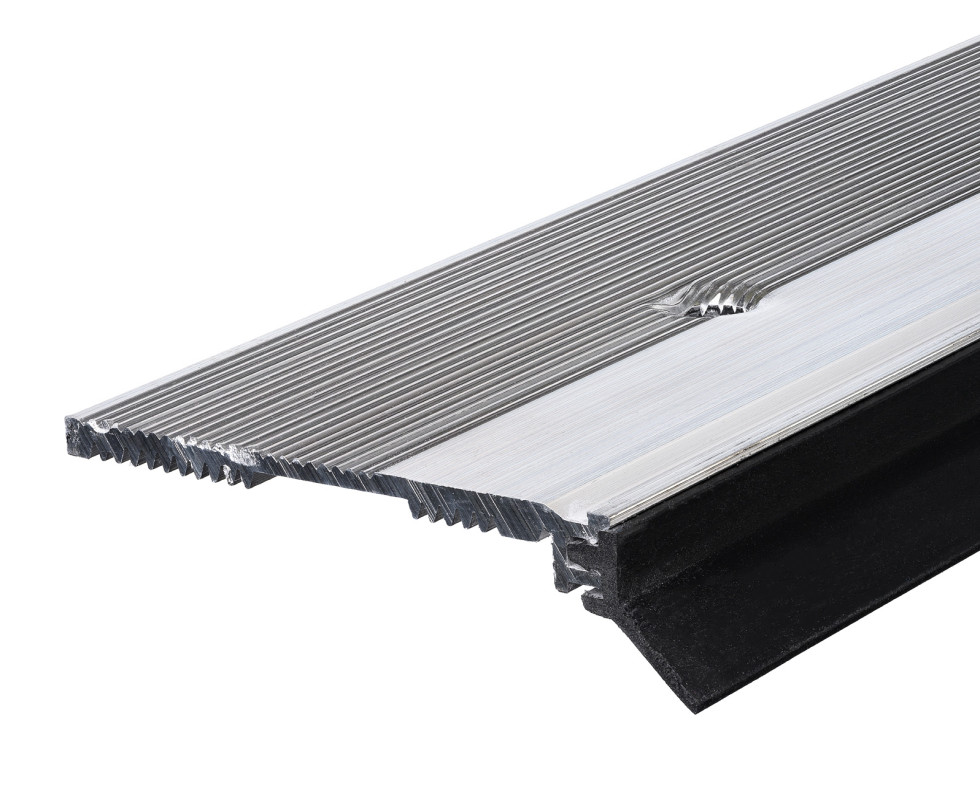

The ANB 7 - N7 wear strip protects almost the entire threshold under the back door, patio door, and balcony door from wear. Thanks to the ribbed profile, it also provides an anti-slip surface, preventing slips on a smooth threshold.
Description
- Aluminum wear strip with seal
- TPE (plastic) seal
- Protects the entire threshold
- Anti-slip and draft-proof
- For doors with a 6 mm clearance
Application:
- Suitable for back doors, patio doors, and balcony doors
- For outward-opening doors
Features:
- Can be cut to size
- Pre-drilled 5.8 mm countersunk screw holes
- Includes screws for installation

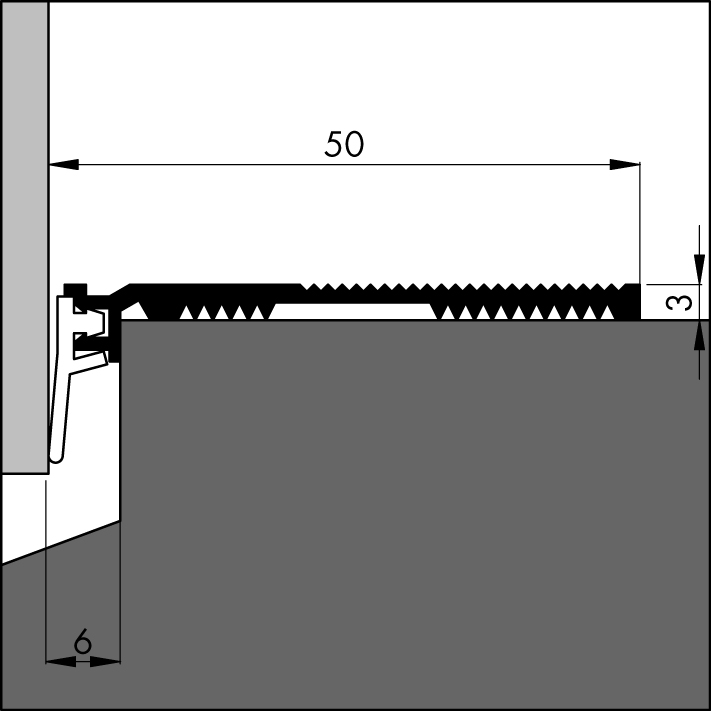

Technical details
- Maximum gap: 6 mm
- Wear strip width: 50 mm
- Custom sizes available
- Profile can be supplied without pre-drilled holes
Specifications
All standard lengths can be cut to size.
| LENGTH | ART. NO. | COLOUR | EAN (PC.) | UNIT |
| 100 cm | 330900250 | Alu. | 8711286840502 | 6 pc. |
| 100 cm | 330900210 | Alu. | 8711286294206 | 10 pc. |
| 300 cm | 330900230 | Alu. | 8711286294237 | 10 pc. |
|
300 cm |
330901230 undrilled | Alu. | 8711286294640 | 10 pc. |
Note: It is possible to purchase the wear strip individually at your local hardware store or home improvement center.
Performance
Classification according to NEN EN 12365: W43133.
Installation advice
To ensure the wear strip functions properly, it is important to install it correctly. Please read the included installation instructions and follow the step-by-step guide.
Prepare the necessary materials in advance:
- Tape measure or folding ruler
- Pencil
- Hacksaw and file
- Drill with a Phillips bit
Step-by-step guide: Installing wear strip ANB 7 - N7
- Measure the length of the threshold to determine the required length of the wear strip.
- Mark the correct length on the wear strip.
- Cut the profiles to size.
- File off any burrs that may have formed on the aluminum.
- Place the wear strip on the threshold, ensuring the plastic seal is positioned against the door.
- Secure the wear strip with screws.
