DRAFT-PROOFING DOOR

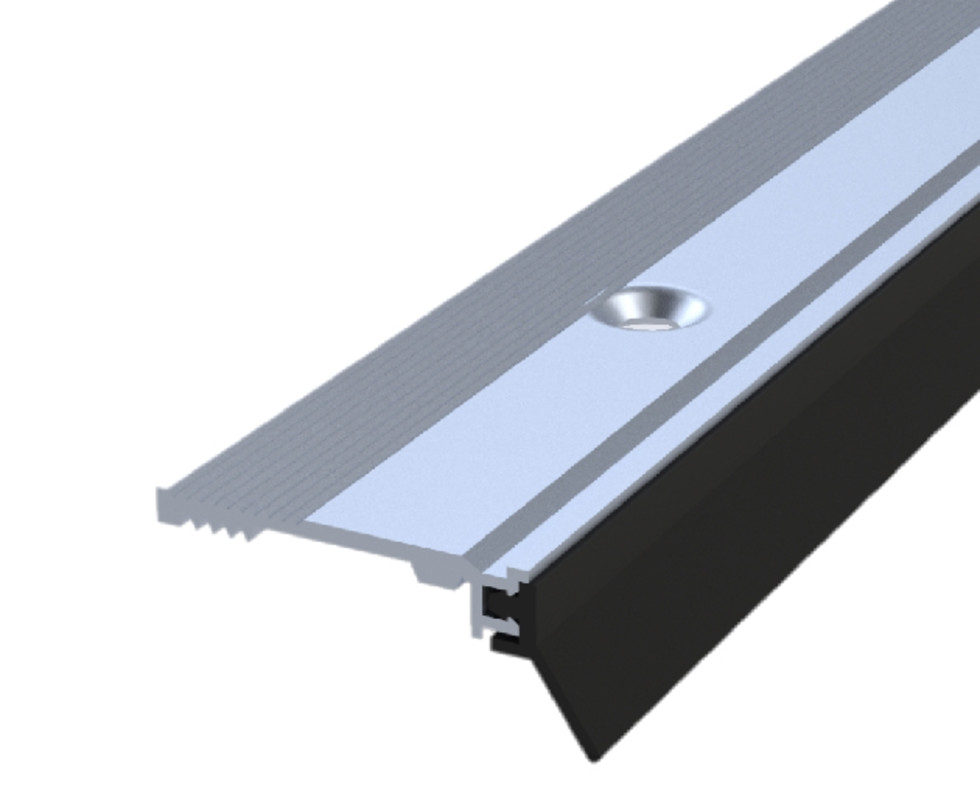

Aluminum wear strip with TPE seal against draft. For doors with a 6 mm clearance.
The wear strip ANB 6 - N6 protects the threshold under a back door, patio door, and balcony door from wear and tear. Additionally, it provides an anti-slip surface, preventing accidental slips on a smooth threshold inside the home.
Description
- Aluminum wear strip with seal
- TPE (plastic) seal
- Partially protects the threshold
- Anti-slip and draft-proof
- For doors with a 6 mm clearance
Application:
- Suitable for back doors, patio doors, and balcony doors
Features:
- Can be trimmed to size
- Pre-drilled 5.8 mm countersunk screw holes
- Individually packed 100 cm variant includes screws for installation
Technical details

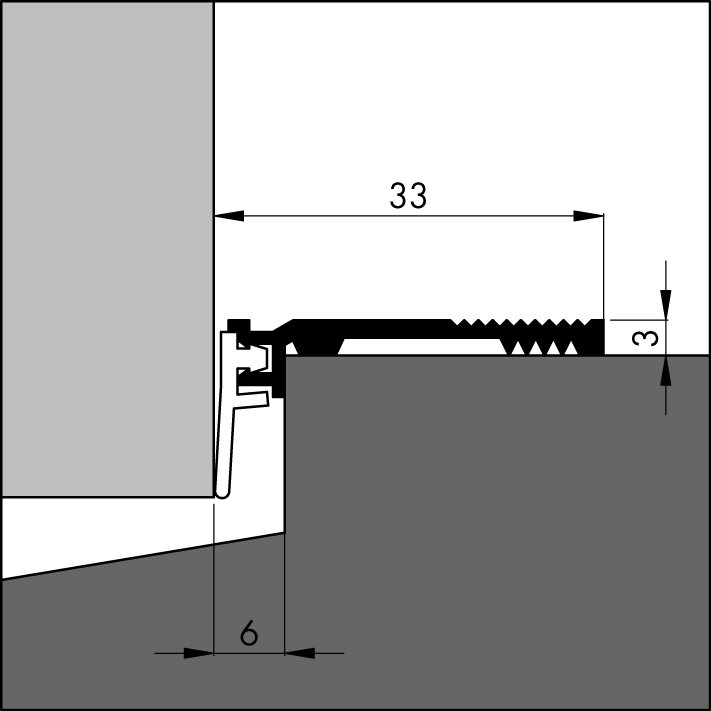

- Maximum gap: 6 mm
- Wear strip width: 33 mm
- Custom sizes available
- Profile can be supplied without pre-drilled holes
Specifications
All standard lengths can be cut to size.
| LENGTH | ART. NO. | COLOUR | EAN (PC.) | UNIT |
| 100 cm | 330500250 | Alu. | 8711286840304 | 6 pc. |
| 100 cm | 330500210 | Alu. | 8711286291205 | 10 pc. |
| 300 cm | 330500230 | Alu. | 8711286291236 | 15 pc. |
|
300 cm |
330501230 undrilled | Alu. | 8711286291656 | 15 pc. |
Note: it is possible to purchase the wear strip individually at your local hardware store or home improvement center.
Performance
Classification according to NEN EN 12365: W43133.
Installation advice
To ensure the wear strip functions properly, it is important to install it correctly. Please read the included mounting instructions and follow the step-by-step guide.
Prepare the necessary materials in advance:
- Tape measure or folding ruler
- Pencil
- Hacksaw and file
- Drill with a Phillips bit
Step-by-step guide: Installing wear strip ANB 6 - N6
- Measure the length of the threshold to determine the required length of the wear strip.
- Mark the correct length on the wear strip.
- Cut the profiles to size.
- File off any burrs that may have formed on the aluminum.
- Place the wear strip on the threshold, ensuring the plastic seal is positioned against the door.
- Secure the wear strip with screws.
