Holder profile EllenMatic Elegance Cassette

Holder profile EllenMatic Elegance Cassette

Aluminium holder profile for the youngest generation of EllenMatic drop seals. 'Upgrade' existing interior doors with the best drop seals. The holder profile is mounted on the underside of the door leaf.

Surface-mounted cassette is suitable for:

EllenMatic Soundproof
EllenMatic Brush
EllenMatic Uni-Proof
EllenMatic Optimal seal

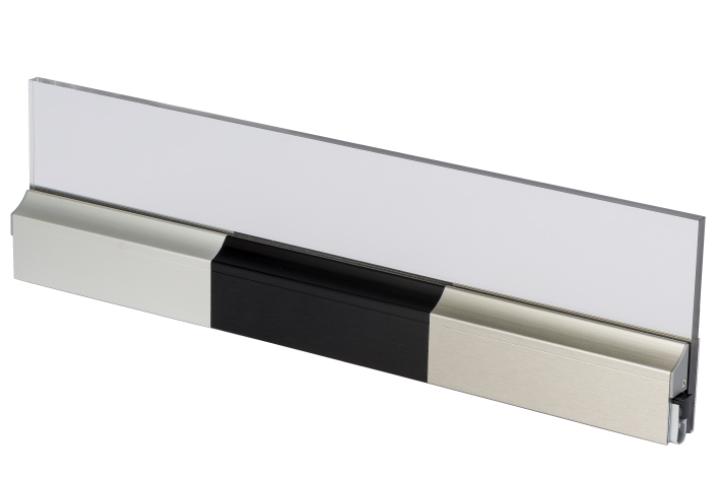

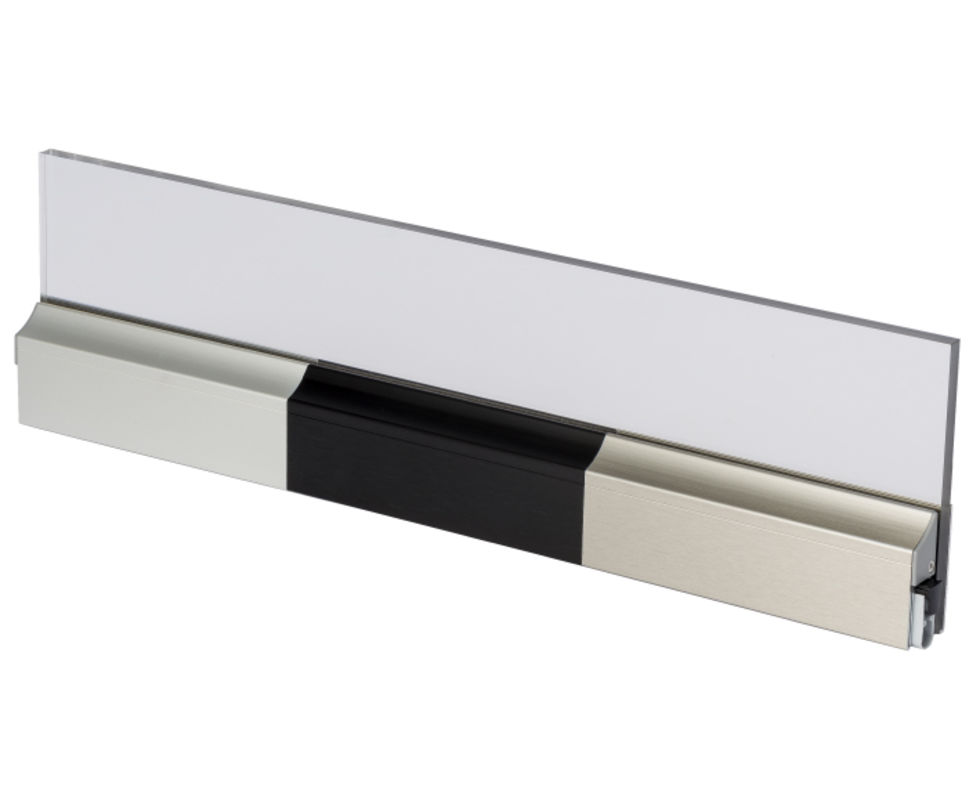

Combine the surface-mounted cassette with the EllenMatic Elegance protection plate to protect the underside of the wooden door from damage or to prevent people from looking in from the back of the drop seal on glass doors.

Description

  • Anodised aluminium housing
  • Holderprofile for the following drop seals: EllenMatic Brush, EllenMatic Soundproof, EllenMatic Uni-Proof and EllenMatic Optimal seal
  • Aesthetically pleasing solution
  • The drop seal is shortened by 1 mm by the part that is incorporated into the Elegance cassette

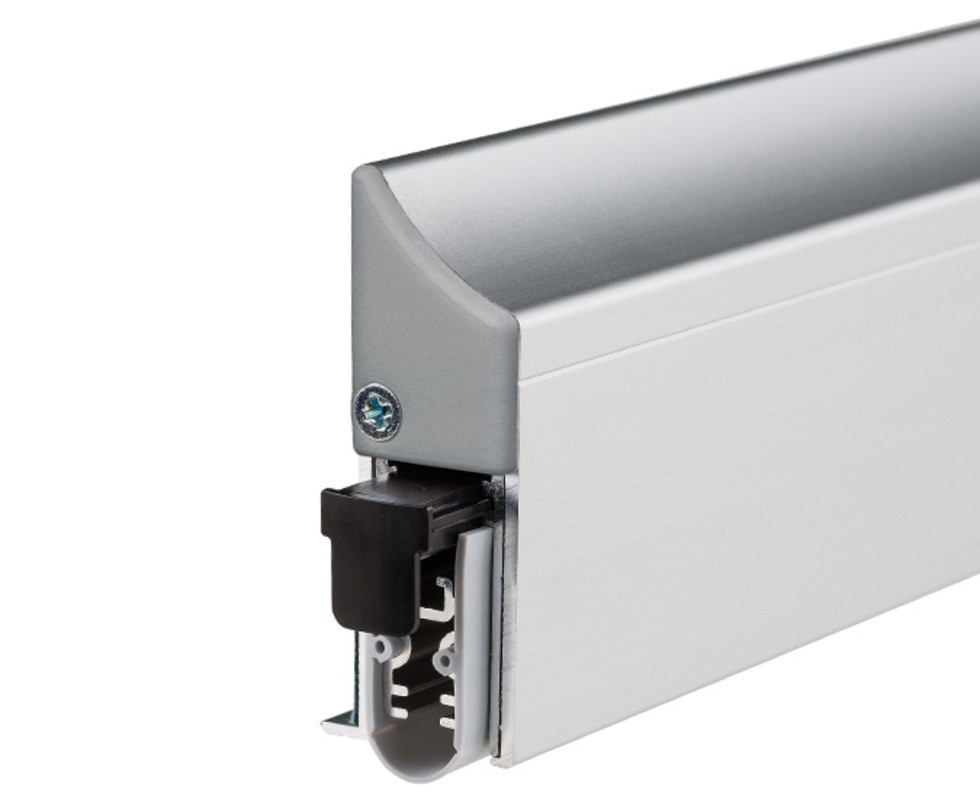

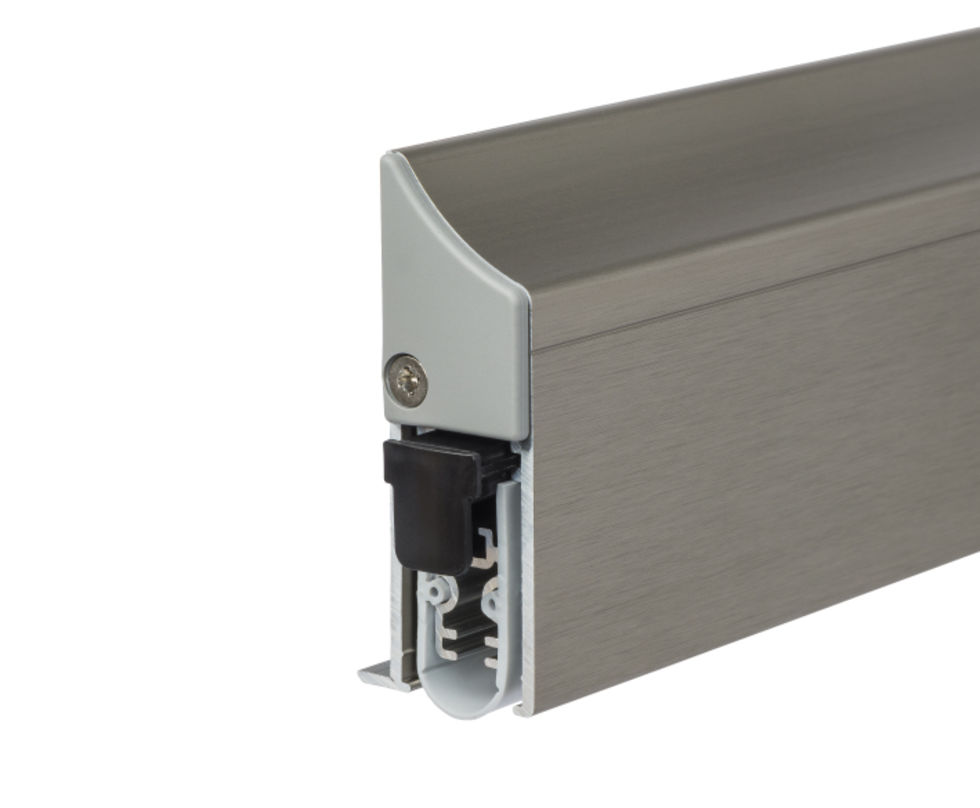

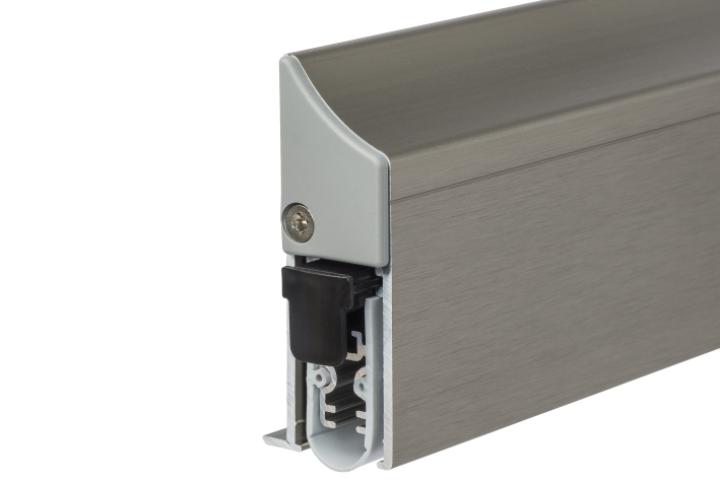

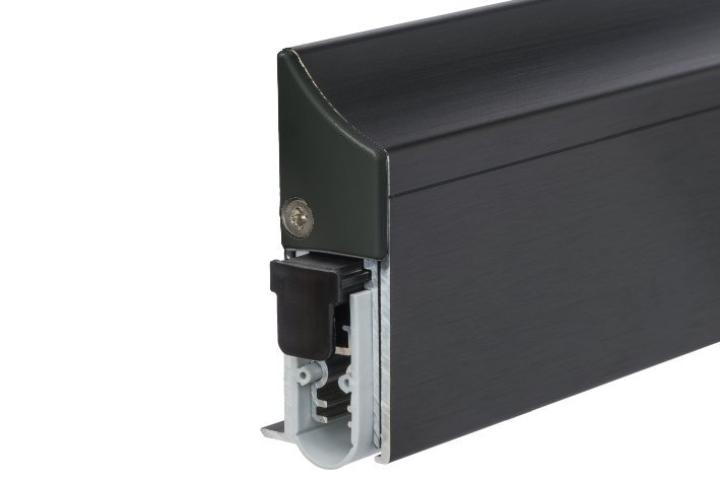

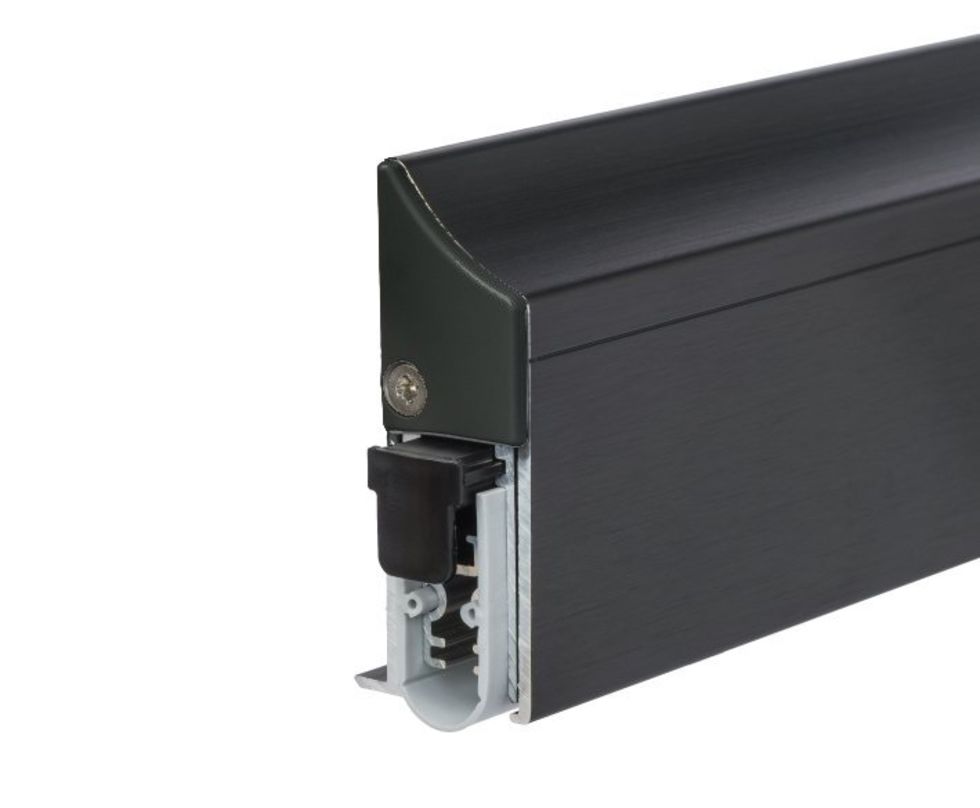

  • Available in anodised (VOM1), brushed black (VOM7) and brushed stainless steel

  • Note: The EllenMatic Elegance Cassette must be 6 mm shorter than the exact length between the door frame (1 mm clearance is required on both sides, and there must be room for the end caps).

Technical details

  • Max gap: 20 mm

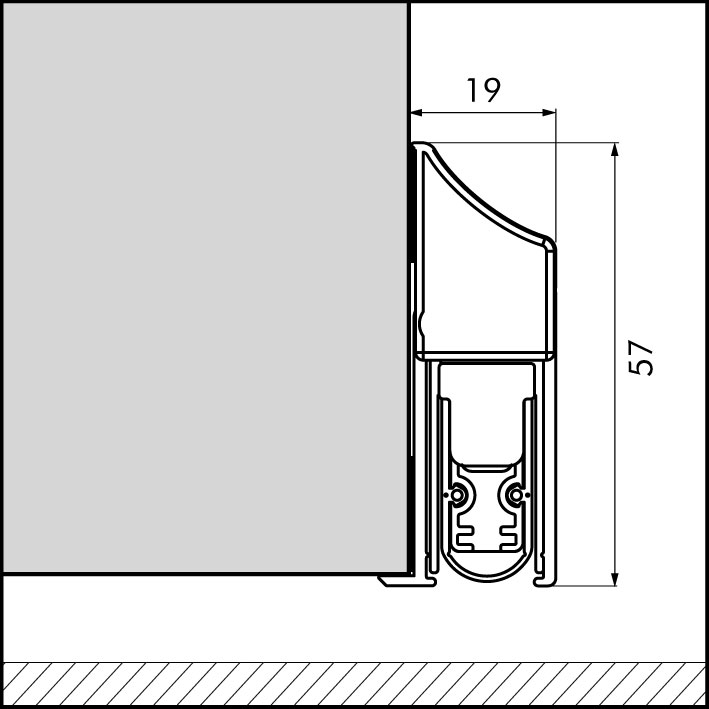

  • Total height: 57 mm
  • Can be cut to length
  • Customization possible
  • Max length: 1600 mm
  • 5 years guarantee

EllenMatic opbouwcassette Elegance

Specifications holder profile

All standard lengths can be cut to size.

LENGTH ART.NR COLOUR EAN (PC.) UNIT
1000 mm 208000510 VOM1 8711286893706 6 pc./box
1000 mm 208000310 RVS 8711286236220 5 pc./box
1000 mm 208000410 VOM7 8711286236237 5 pc./box

Note: It is possible to purchase the product individually at your local hardware store or home improvement center.

Installation advice

Draught, noise, smoke and fire can easily be stopped by correctly mounting the cassette with drop seal. Read the supplied mounting instructions, watch the video and follow the step-by-step plan.

Prepare the necessary materials in advance:

  • Cloth and degreaser
  • Tape measure or folding rule
  • Square
  • Pencil
  • Scissors
  • Hacksaw and file
  • Drill with Phillips bit



Step-by-step guide: installing the holder profile EllenMatic Elegance Cassette

  1. Measure the width of the door on the side where the cassette is placed (exact length between the door frame)
    Note: then subtract 6 mm from this (this is necessary to place the end caps)
  2. Mark the correct length on the cassette
  3. Cut the cassette to size
  4. File off any burrs that may have formed on the aluminium
  5. Clean and degrease the door thoroughly with the cloth and degreaser
  6. Remove the protective layer from the self-adhesive tape on the cassette
  7. Attach the cassette to the door. Leave 3 mm free on both sides and press firmly!
  8. Take the drop seal (Soundproof, Uni-proof, Brush, Optimal seal) and mark the correct size. Note: the drop seal must be 1 mm shorter than the cassette
  9. Cut the drop seal to size and file off the burrs from the aluminium
    Slide the drop seal into the cassette and screw the cover caps on
