PROTECTING DOORS
Aesthetically pleasing solution to protect the bottom of the door leaf from damage.
Combine the protection plate with a drop seal in the surface mounted EllenMatic Elegance Cassette to simultaneously prevent draughts in your home or office.
Suitable for wooden doors and glass doors.
Description
- Anodised aluminium
- Protects the door leaf
- Fixation by using the self-adhesive tape
- Application: wooden doors or glass doors
- Available in anodised aluminium (VOM1), brushed black (VOM7) and brushed stainless steel
Technical details

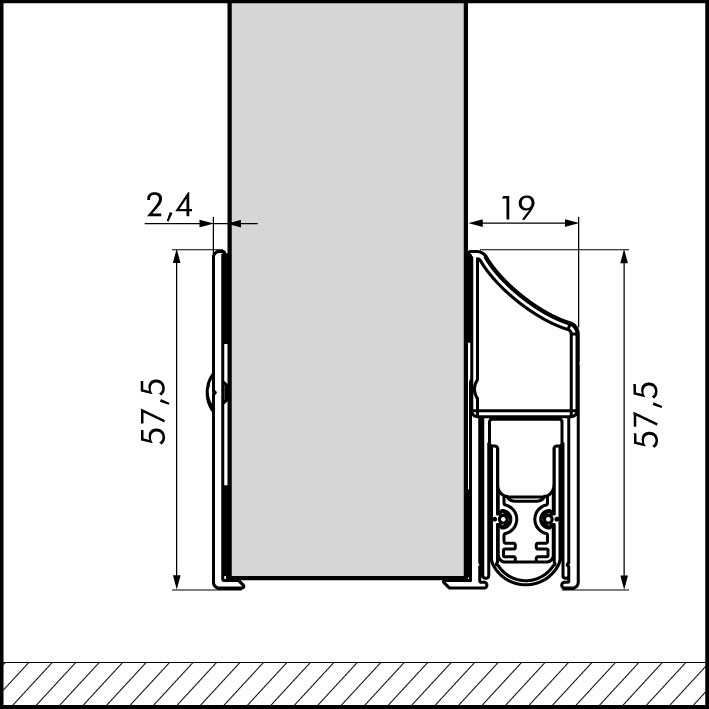

- Width x height: 2,4 mm x 57,5 mm
- Max length: 1600 mm
- Can be cut to length
- Customization possible
- 5 years guarantee
Specifications protection plate
All lengths can be cut to size.
| LENGTH | ART.NR | COLOUR |
EAN (PC.) | UNIT |
| 1030 mm | 209000103 | VOM1 | 8711286236213 | 5 pc. |
| 1030 mm | 209003103 | RVS | 8711286236244 | 5 pc. |
| 1030 mm | 209004103 | VOM7 | 8711286236251 | 5 pc. |
Note: It is possible to purchase the product individually at your local hardware store or home improvement center.
Installation advice
Draught, noise, smoke and fire can easily be stopped by correctly mounting the cassette with drop seal. Read the supplied mounting instructions, watch the video and follow the step-by-step plan.
Prepare the necessary materials in advance:
- Cloth and degreaser
- Tape measure or folding rule
- Square
- Pencil
- Scissors
- Hacksaw and file
- Drill with Phillips bit
Step-by-step guide: installing EllenMatic Elegance Protection plate
- Measure the width of the door where the protective plate will be placed
- Mark the correct length on the protective plate
- Cut the protective plate to size
- File off any burrs that may have formed on the aluminium
- Clean and degrease the door thoroughly with the cloth and degreaser
- Remove the protective layer from the self-adhesive tape on the protective plate
- Attach the cassette to the door and press firmly
