DRAUGHT PROOFING DOORS & WINDOWS

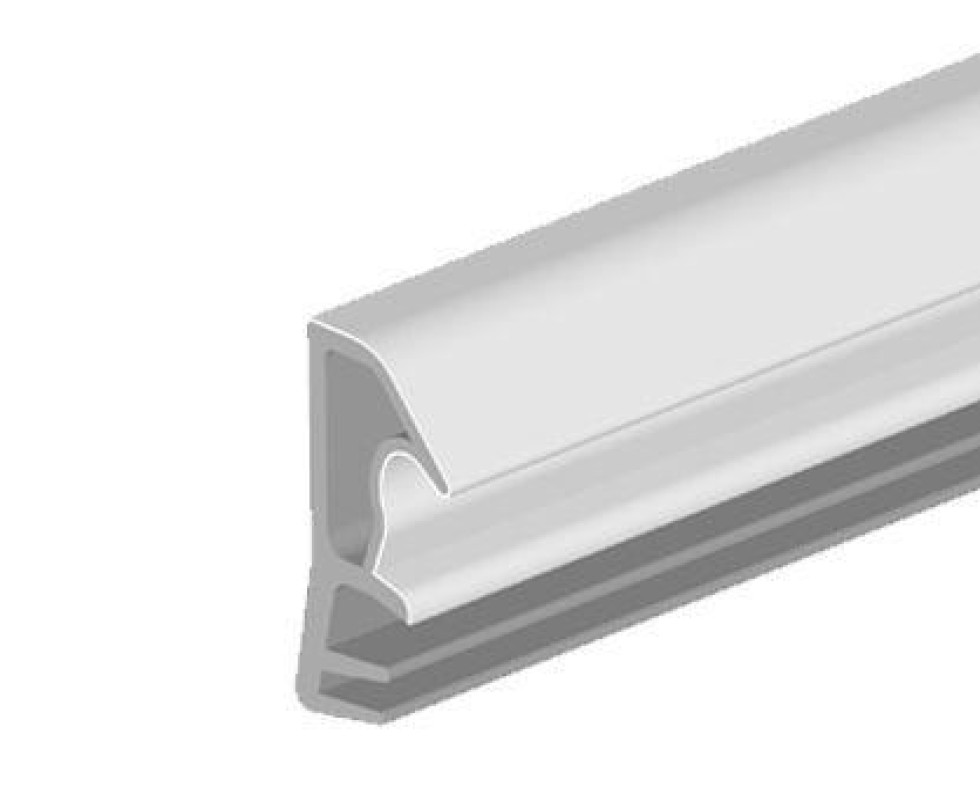

This draught-proof peripheral frame seal is suitable for windows and doors. Gaps and seams can be sealed well by mounting the plastic (TPE) welding seal.
The frame seal is acrylic-resistant, is fitted with protective film and has a low closing resistance. Circular frame seal in windows and doors with a rebate width of 12 mm.
Extremely suitable as a replacement for existing frame seals.
Description
- Plastic (TPE) welding seal
- Draught proofing
- Acrylic resistant
- Provided with protective film
- Low closing resistance
- Application: doors and windows
- Can be mounted tension-free in the groove from the reel
Technical details

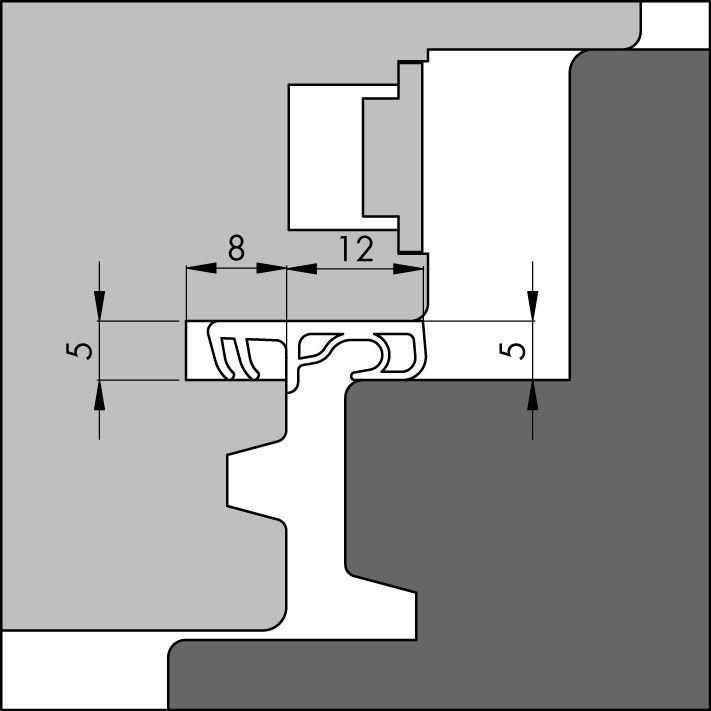

- Groove width x depth = 5 mm x 8 mm
- Clearance gap: 5 mm
- Clearance width: 12 mm
- Reel length: 180 m
Specifications frame seal
| LENGTH | ART.NR | COLOUR | EAN (PC.) | UNIT |
| 180 m | 670104200 | Black | 8711286804054 | 1 roll/box |
Performance
Classification according to NEN EN 12365: W34164
Installation advice
Draft through gaps and seams around windows and doors can easily be stopped by correctly fitting the frame seal. Please note: for optimum sealing, the window or door must be measured accurately and the frame seal must be accurately cut and welded!
