DRAUGHT PROOFING DOORS

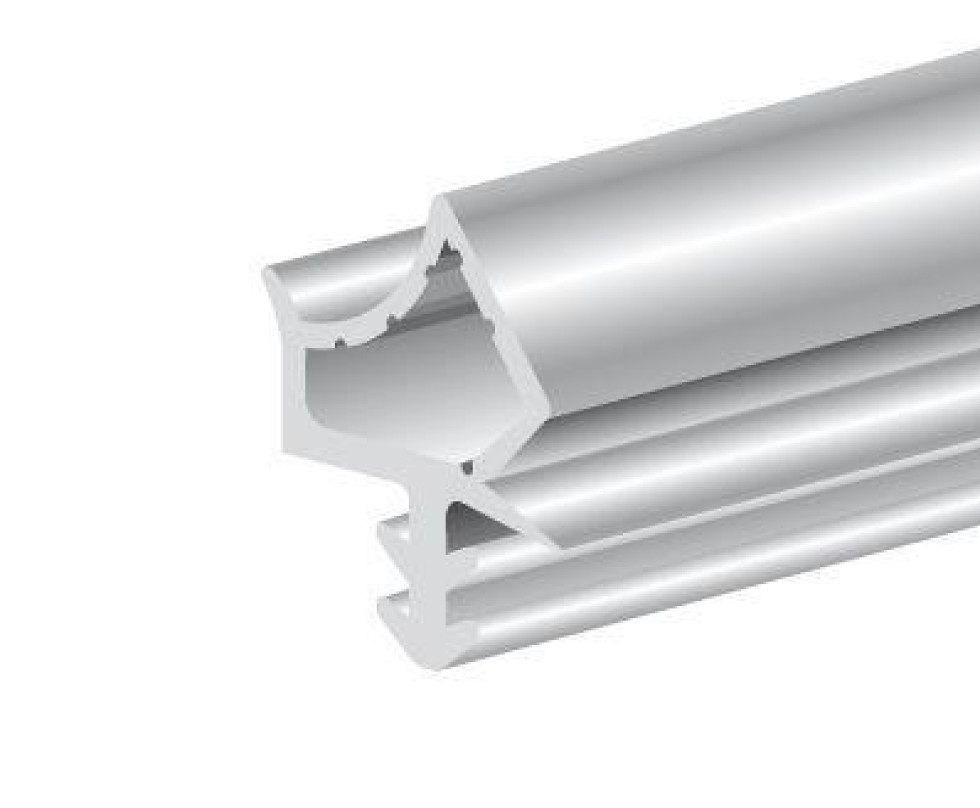

Plastic (TPE) peripheral frame seal for placement in a 12 mm rebate of an interior door frame. Suitable for door situations with a clearance gap varying from 5 to 9 mm.
The profile has a low closing resistance and is acrylic resistant.
Description
- Plastic (TPE) profile
- Low closing resistance
- Resists acrylic-based products
- Application: rebate in interior doors
- Can be cut to size easily
- Can be mounted tension-free in the groove from the reel

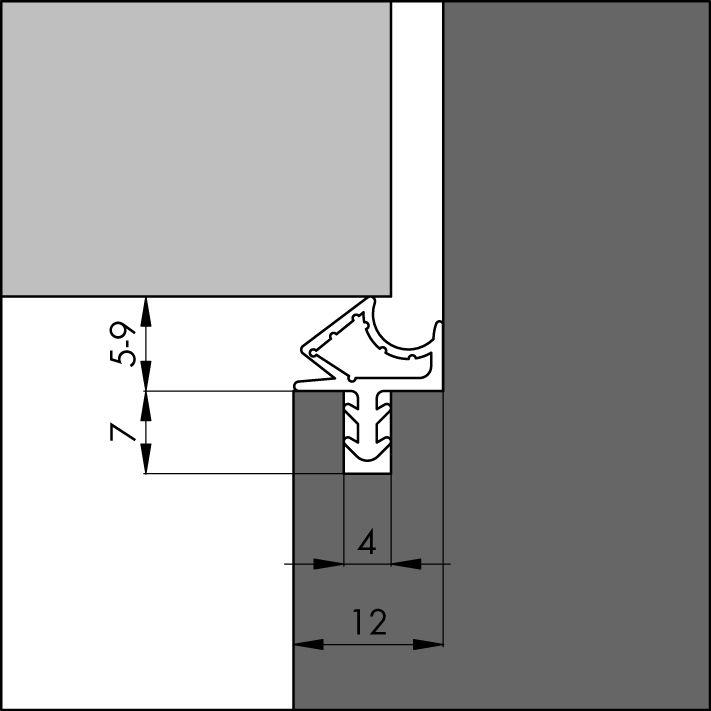

Technical details
- Clearance gap: 5 - 9 mm
- Groove width x depth = 4 mm x 7 mm
- Clearance width: 12 mm
- Reel length: 100 m
Specifications
| LENGTH | ART.NR | COLOUR | EAN (PC.) | UNIT |
| 100 m | 656404200 | Black | 8711286803231 | 1 roll/box |
Installation advice
Draft through gaps around an interior door can easily be stopped by correctly installing the peripheral frame seal. Read the supplied installation instructions, watch the installation instruction video and follow the step-by-step plan.
Prepare the necessary materials in advance:
- Tape measure
- Pen
- Frame cutting pliers or scissors
Step-by-step guide: installing frame seal 4291 AC
- First remove the old frame seal from the frame.
- Check whether the height of the old seal is the same as the new seal.
- Measure the length of the old seal and cut the new seal slightly longer.
- Place the new seal in the frame. Start at the top of the frame.
Work clockwise. - Cut off the excess seal, use frame cutting pliers or scissors for this.
