DRAUGHT PROOFING DOORS & WINDOWS
Gaps and seams around doors and windows are easy to seal with this draught-proof silicone frame seal.
Circular frame seal for windows and doors with a rebate width of 18 mm. The flexible silicone has a low closing resistance and is easy to cut to size, also at an angle.
Also suitable as a replacement for existing frame seals.

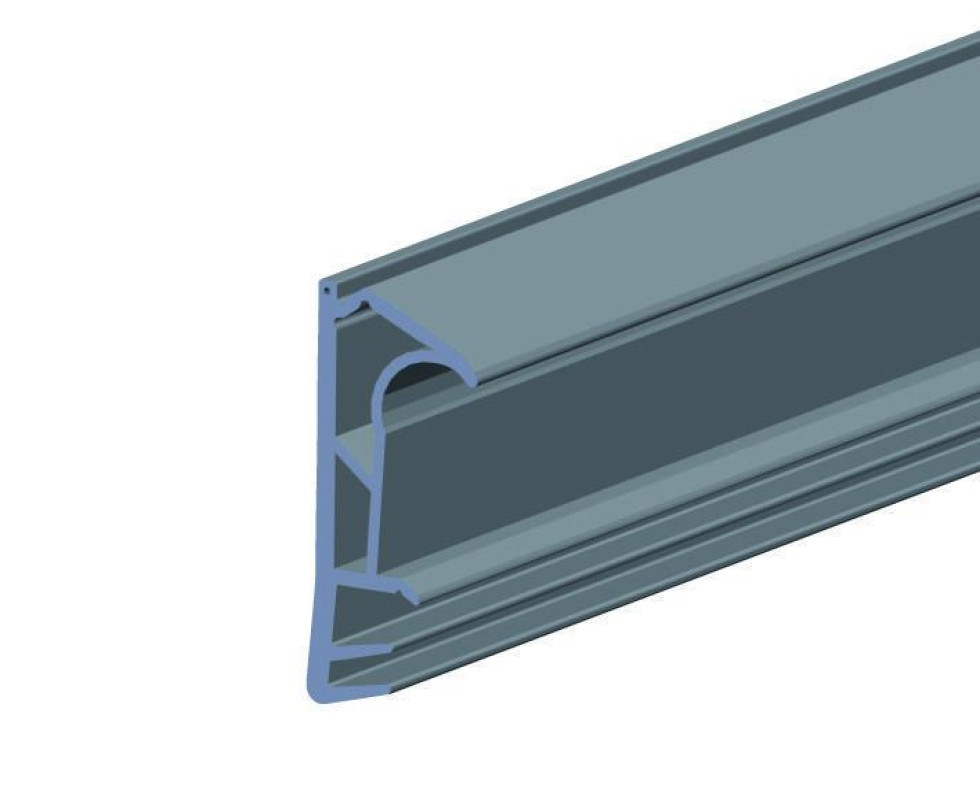

Description
- Flexible silicon peripheral frame seal
- Draught proofing
- Low closing resistance
- With reinforcement wire in the head
- Easy to cut to size, also at an angle
- Application: doors and windows
- Can be mounted tension-free in the groove

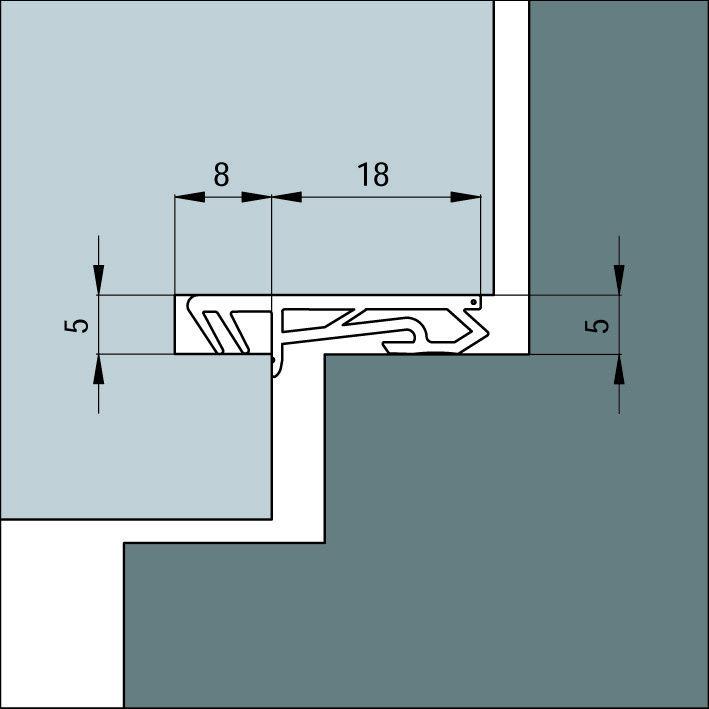

Technical details
- Max gap: 7 mm
- Groove width x depth = 5 mm x 8 mm
- Clearance gap: 5 mm
- Clearance width: 18 mm
- Reel length: 150 m
Specifications frame seal
| LENGTH | ART.NR | COLOUR | EAN (PC.) | UNIT |
| 150 m | 680504901.1 | Black | 8711286805235 | 1 roll/box |
Installation advice
Draft through gaps around an interior door can easily be stopped by correctly installing the peripheral frame seal. Read the supplied installation instructions, watch the installation instruction video and follow the step-by-step plan.
Prepare the necessary materials in advance:
- Tape measure
- Pen
- Frame cutting pliers or scissors
- Chissel
Step-by-step guide: installing peripheral frame seal 1801 SCF
- Remove the old frame seal from the frame
- Check whether the 'head' height of the old frame seal is the same as the new frame seal
- Measure the length of the old frame seal and cut the new frame seal slightly longer
- Place the new frame seal in the frame. Start at the top of the frame in the middle
Work clockwise. - Mark a line in the top right corner of the frame seal
- Cut the frame seal at the location of the line, use frame cutting pliers or a frame cutting aid for this
Note: the frame profile must not be cut completely!
> frame cutting aid: place the frame with the line in the middle and cut out the corner with a chisel
> frame cutting pliers: place the frame with the line in the middle and cut out the corner
