DRAUGHT AND MOISTURE PROOFING WINDOWS

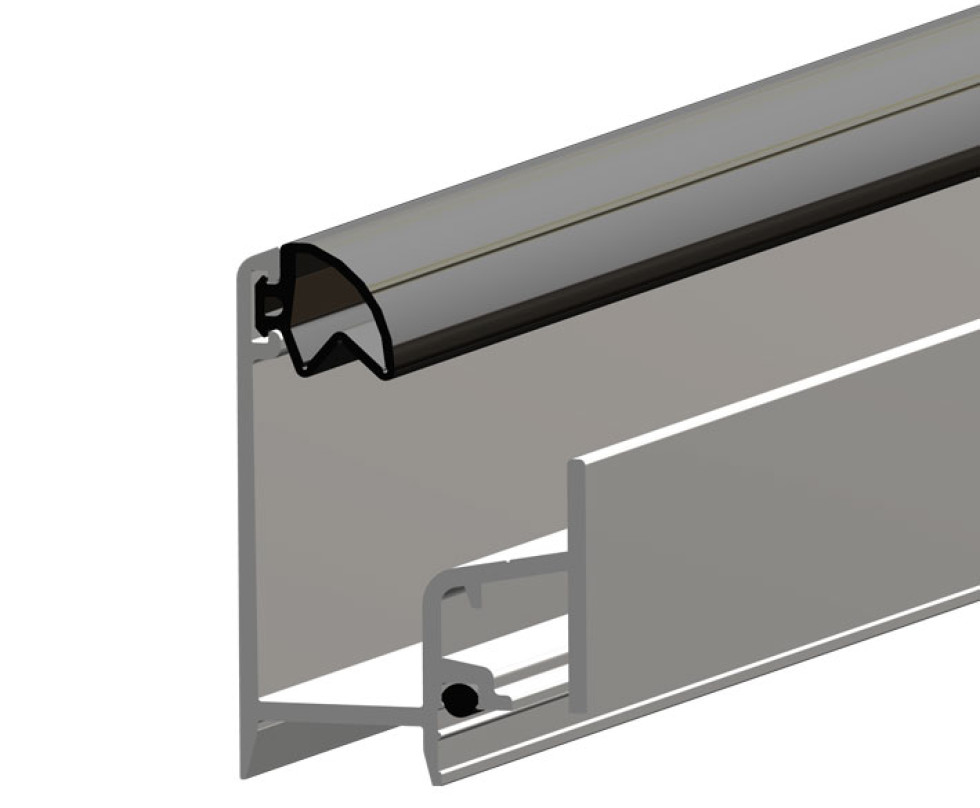

By placing the AV 22-10H stop profile between the frame and the tilt and turn window, you can easily prevent moisture/draft around the window. And if moisture does get into the profile, it can drain away at the bottom.
The aluminium stop profile is anodised. This special treatment makes the aluminium extra hard and wear-resistant. This prevents rust formation and gives the profile a long lifespan.
Description
- Anodized aluminum profile (quality 6060 T66)
- Seal made of TPE with protective foil
- 100% recyclable
- Easy installation
- Available in powder coating (RAL color)
- End caps available as an additional accessory
- Optional: heel seal (string) made of EPDM
- Application: inward opening (tilt and turn) windows
- Customization possible
Technical details

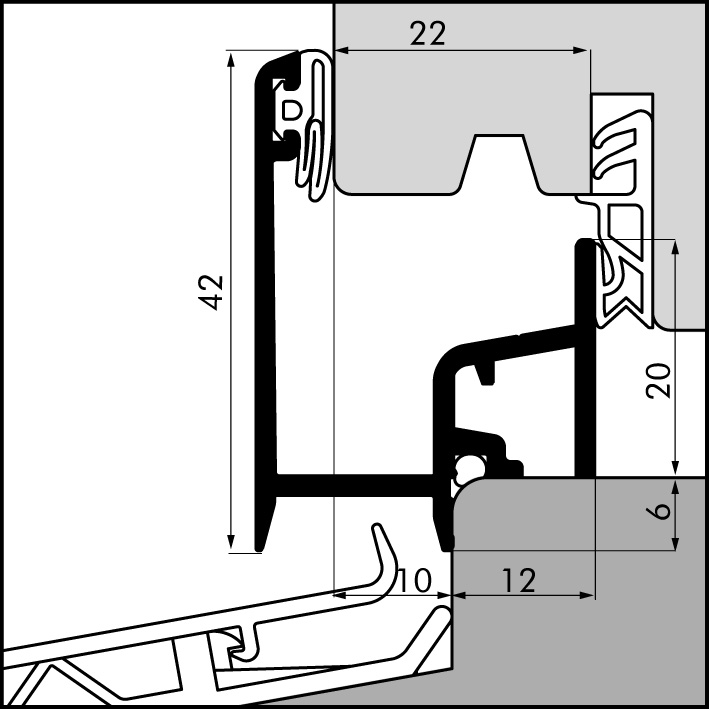

- Gutter 22 -/- 10 mm
- Width x height: 26 mm x 42 mm
- Air permeability: class 4 (600 Pa)
- Watertightness: class 9A (600 Pa)
- KOMO Certified (no. 40069)
Specifications
All standard lengths can be cut to size.
| LENGTH | ART.NR | COLOUR | EAN (PC.) | UNIT |
| 500 cm | 730850950 | VOM1 | 8711286484096 | 6 pc. |
| End cap Left | 790110913 | Grey | 8711286482023 | 50 pc./bag |
| End cap Right | 790110912 | Grey | 8711286482016 | 50 pc./bag |
| Heel seal | 790400002 | Black | 8711286480845 | 50 m. |
Performance
KOMO Certified: no. 40069
Air permeability class 4 (600 Pa) according to EN 12207
Watertightness class 9A (600 Pa) according to EN 12208
Installation advice
For the stop profile to function properly, the correct processing of the profile is essential. Processing instructions can be requested.
Prepare the necessary materials in advance:
- Tape measure or folding rule
- Pencil
- Hacksaw and file
