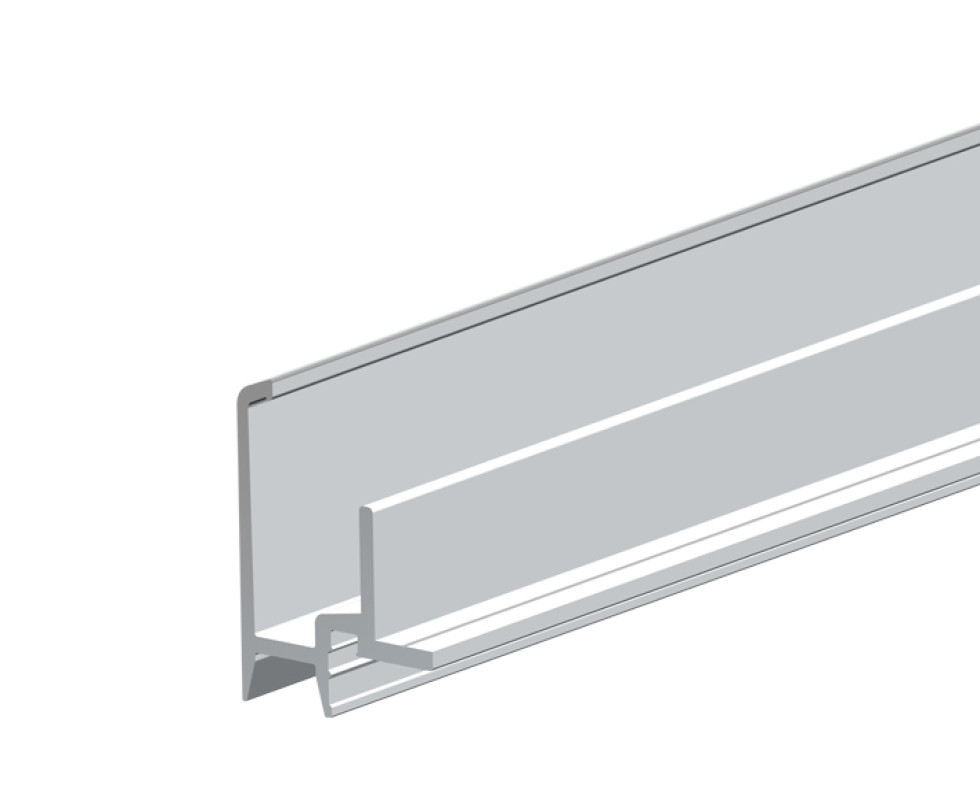

DRAUGHT AND MOISTURE PROOFING WINDOWS
To prevent draught and moisture around an inward-opening window, the AS 15-10 stop profile is the solution. The stop profile ensures that the window has a good seal on the frame and that water/draught cannot enter. Any moisture that ends up in the profile can easily drain away at the bottom.
The aluminium stop profile is anodised. This special treatment makes the aluminium extra hard and wear-resistant. This prevents corrosion and gives the profile a long lifespan.
Description
- Anodized aluminum profile (quality 6060 T66)
- 100% Recyclable
- Easy assembly
- Available in powder coating (RAL color)
- End caps available as an additional accessory
- Optional: heel seal (string) made of EPDM
- Application: inward opening windows
- Customization possible
Technical details
- Gutter 15 -/- 10 mm

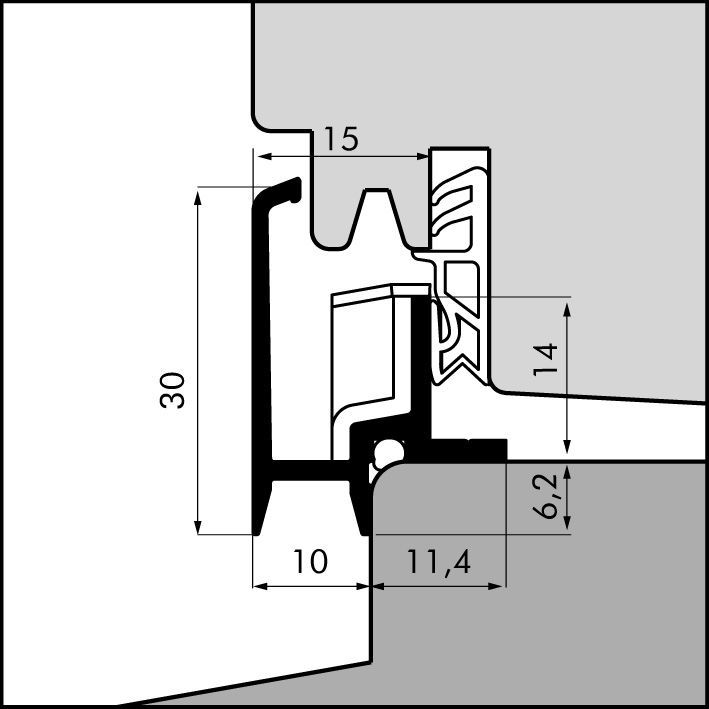

- Width x height: 21.4 mm x 30 mm
- Air permeability: class 4 (600 Pa)
- Watertightness: class 8A (450 Pa)
- KOMO Certified (no. 40069)
Specifications
All standard lengths can be cut to size.
| LENGTH | ART.NR | COLOUR | EAN (PC.) | UNIT |
| 500 cm | 740150950 | VOM1 | 8711286480616 | 6 pc. |
| End cap Left | 790110907 | Grey | 8711286480869 | 50 pc./bag |
| End cap Right | 790110906 | Grey | 8711286480852 | 50 pc./bag |
| Heel seal | 790400002 | Black | 8711286480845 | 50 m. |
Performance
KOMO Certified: no. 40069
Air permeability class 4 (600 Pa) according to EN 12207
Watertightness class 8A (450 Pa) according to EN 12208
Installation advice
For the stop profile to function properly, the correct processing of the profile is essential. Processing instructions can be requested.
Prepare the necessary materials in advance:
- Tape measure or folding rule
- Pencil
- Hacksaw and file
