DRAUGHT PROOFING DOOR

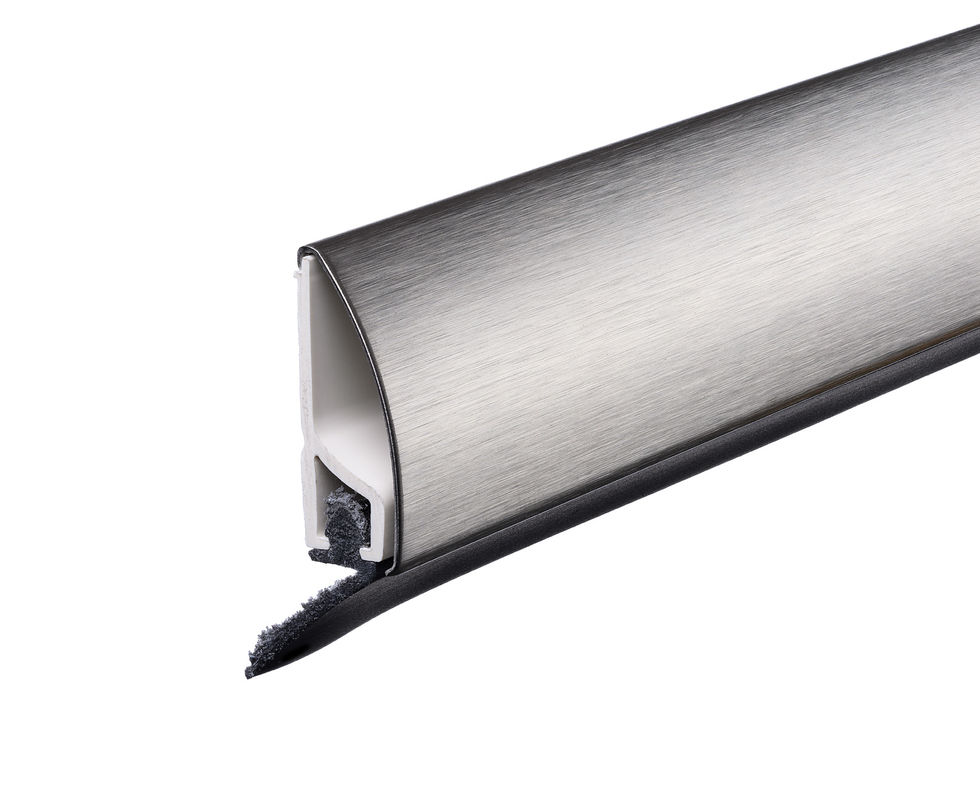

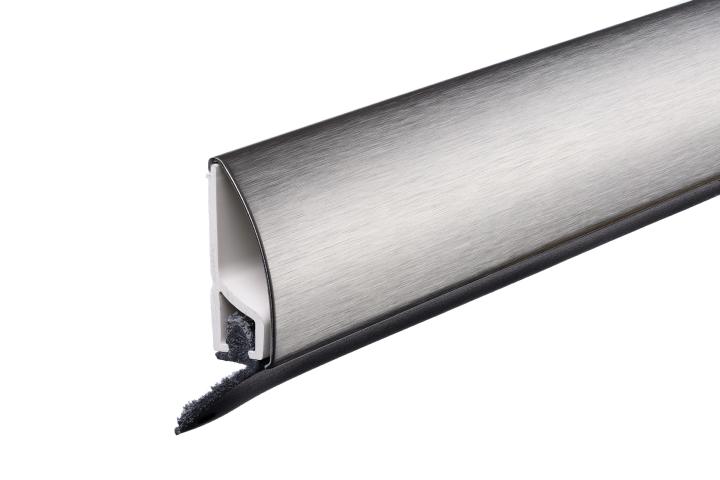

Stainless steel door bottom seal for draught proofing inward opening doors or interior doors with a dust treshold. The profile is fitted with a plastic 9TPE) seal, which closes the gap between door and threshold.

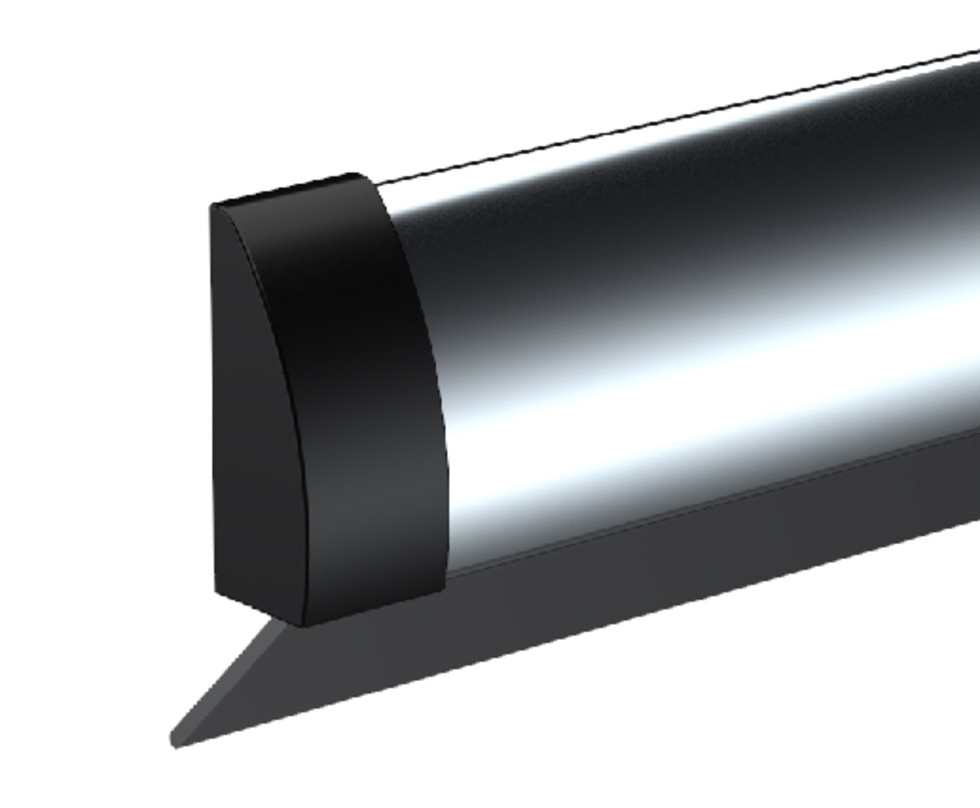

The black end caps create an elegant look.
Description
- Stainless steel profile
- Plastic (TPE) seal
- For draught proofing
- End caps for perfect finish
- Application: bottom of the door
- Can be cut to length
- Screws not visible
- Including screws for mounting
Technical details

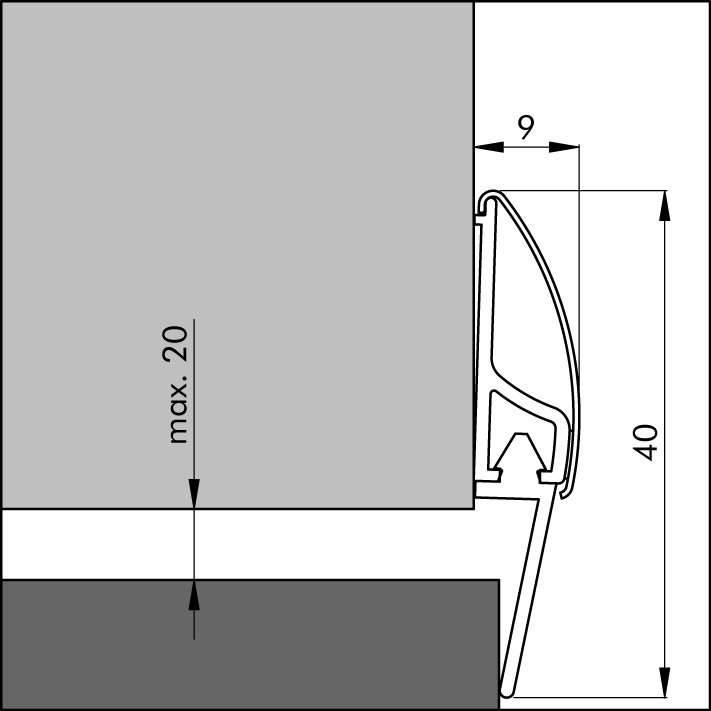

- Max gap: 20 mm
- Width x height: 9 mm x 40 mm
- Standard length 100 cm
Specifications
All lengths can be cut to size.
| LENGTH | ART.NR | COLOUR | EAN (PC.) | UNIT |
| 100 cm | 030200250 | Stainless steel | 8711286861507 | 6 pc. |
Note: It is possible to purchase the product individually at your local hardware store or home improvement center.
Installation advice
To ensure the door bottom seal functions properly, it is important to install it correctly. Please read the included mounting instructions and follow the step-by-step guide.
Prepare the necessary materials in advance:
- Tape measure or folding ruler
- Pencil
- Hacksaw and file
- Drill with a Phillips bit
Step-by-step guide: Installing door bottom seal Inox
- Measure the width of the door to determine the length of the door bottom seal
- Mark the correct length on the door bottom seal. Note: average the hole pattern for optimal fixation
- Cut the door bottom seal to size
- File off any burrs that may have formed on the aluminum
- Place the door bottom seal on the bottom of the door, with the plastic seal against the threshold
- Screw the door bottom seal in place
- Place the end caps
