DRAUGHT PROOFING DOORS

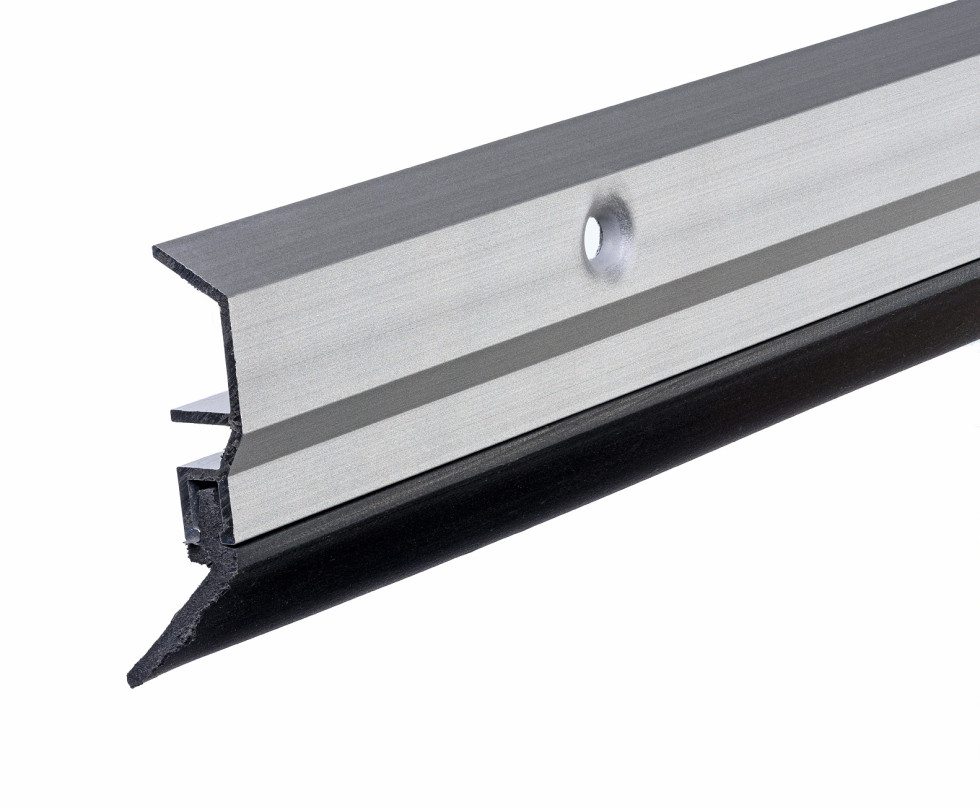

Aluminium door bottom seal for draught proofing inward opening doors or interior doors with a dust threshold. The aluminium profile has a plastic (TPE) seal, which closes the gap between door and threshold perfectly. The 100cm packaged version is anodised and therefore has a timeless appearance.
Description
- Aluminium profile with seal
- 100 cm packaged variant is anodised
- Plastic (TPE) seal
- To prevent draught coming in from under the door
- Application: bottom of the door
- Can be shortened to the required length
- Pre-drilled 3,2 mm with countersunk screw holes
- 100 cm packaged variant contains screws for mounting
Technical details

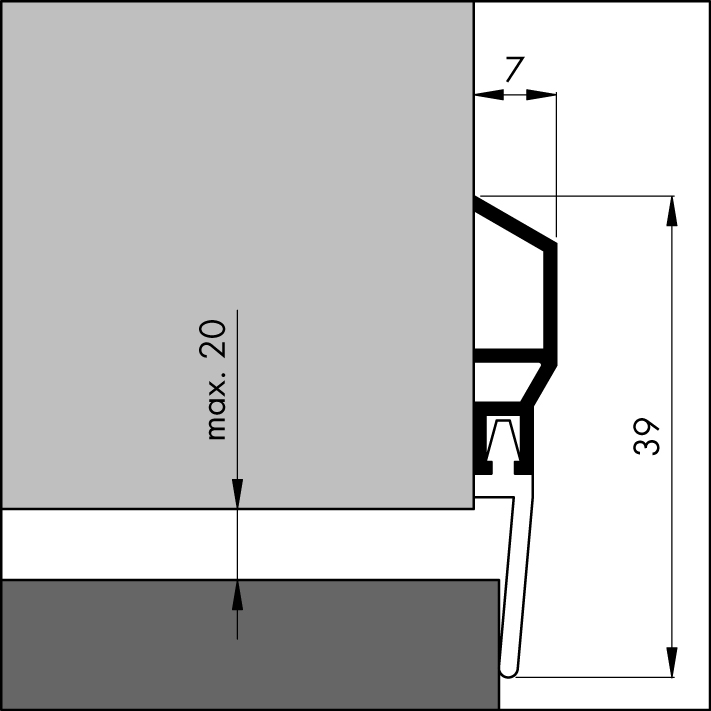

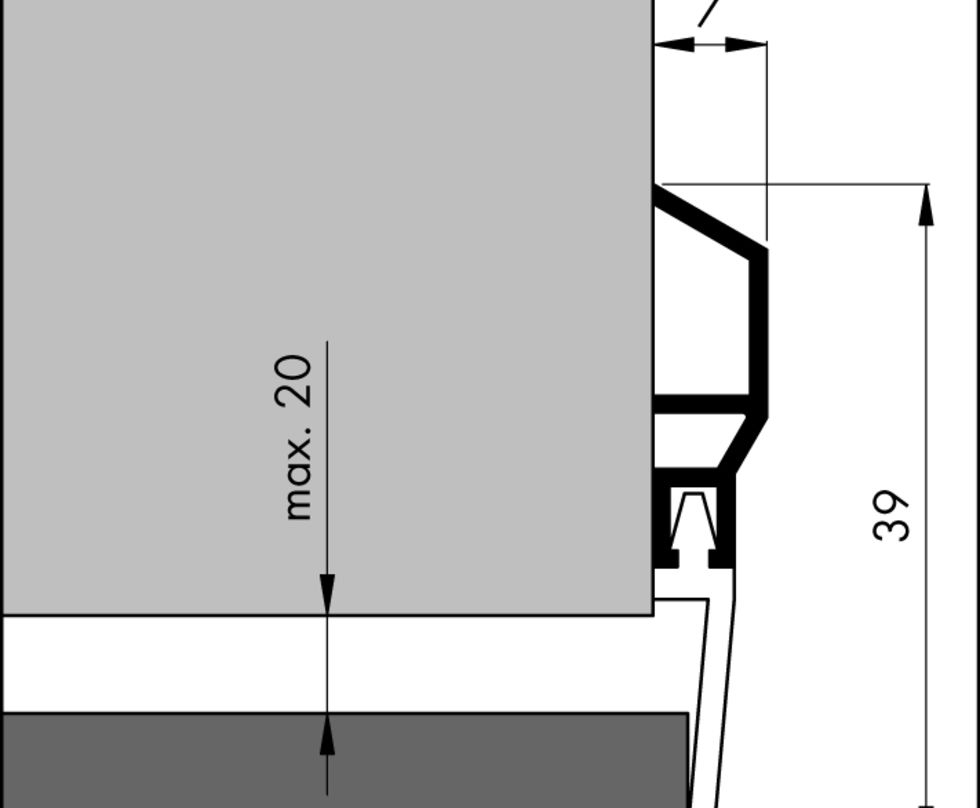

- Max gap: 20 mm
- Width x height: 7 mm x 39 mm
Specifications
All standard lengths can be cut to size.
| LENGTH | ART.NR | COLOUR | EAN (PC.) | UNIT |
| 100 cm | 030100250 | Ano. | 8711286860104 | 6 pc. |
| 100 cm | 030100210 | Alu. | 8711286110216 | 15 pc. |
| 300 cm | 030100230 | Alu. | 8711286110438 | 15 pc. |
Note: It is possible to purchase the product individually at your local hardware store or home improvement center.
Installation advice
To ensure the door bottom seal functions properly, it is important to install it correctly. Please read the included mounting instructions and follow the step-by-step guide.
Prepare the necessary materials in advance:
- Tape measure or folding ruler
- Pencil
- Hacksaw and file
- Drill with a Phillips bit
Step-by-step guide: installing door bottom seal ADS Classic
- Measure the width of the door to determine the length of the door bottom seal
- Mark the correct length on the door bottom seal. Note: average the hole pattern for optimal fixation
- Cut the door bottom seal to size
- File off any burrs that may have formed on the aluminum
- Place the door bottom seal on the bottom of the door, with the plastic seal against the threshold
- Screw the door bottom seal in place
