DRAUGHT PROOFING DOORS

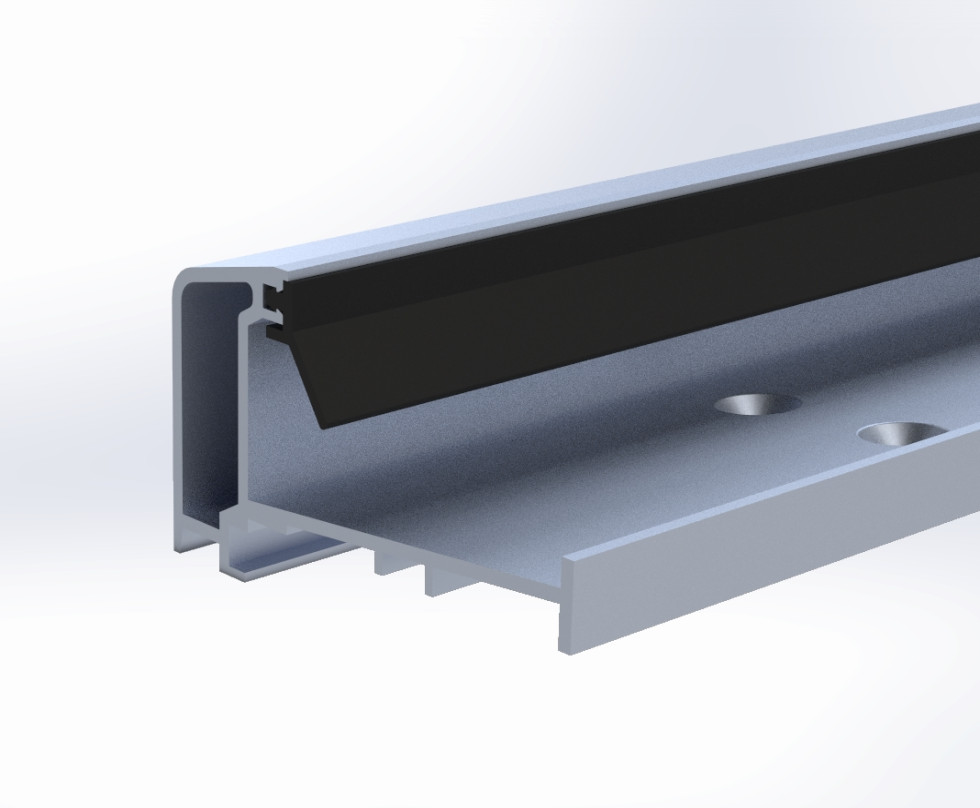

The ANB S5 is a sill profile with TPE seal for draught proofing inward opening doors. The profile protects the sill and prevents draught and moisture from entering from underneath the door.
The ANB S5 is suitable for inward opening doors only and provided with drainage holes.
Description
- Aluminium (brute or anodised) profile
- Plastic (TPE) seal
- Equipped with drip sill and drainage slots
- Customization possible
Application:
- Inward opening doors
- Cut to length possible

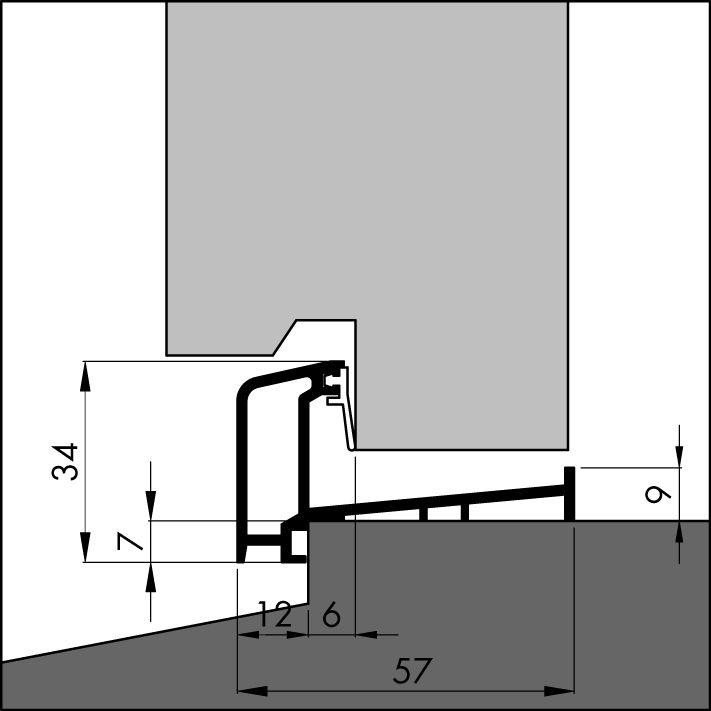

Technical details
- Max gap: 6 mm
- Width profile: 57 mm
- Height: 34 mm
- Predrilled 5,8 mm with countersunk screw holes
Specifications
All standard lengths can be cut to length.
| LENGTH | ART.NR | COLOUR | EAN (PC) | UNIT |
| 300 cm | 340700230 | Alu. | 8711286300235 | 2 pc. |
| 300 cm | 340750230 | VOM1 | 8711286300242 | 2 pc. |
Note: It is possible to purchase the product individually at your local hardware store or home improvement center.
Performance
Classification according to NEN EN 12365: W43133.
Installation advice
To ensure the sill profile functions properly, it is important to install it correctly. Please read the included mounting instructions and follow the step-by-step guide.
Prepare the necessary materials in advance:
- Tape measure or folding ruler
- Pencil
- Hacksaw and file
- Drill with a Phillips bit
- Caulk
Step-by-step guide: Installing sill profiel ANB S5
- Measure the length of the sill to determine the required length of the sill profile.
- Mark the correct length on the sill profile.
- Cut the sill profile to size.
- File off any burrs that may have formed on the aluminum.
- Place the profile on the sill, ensuring the seal is positioned against the door.
- Secure the sill profile with screws
- Caulk the side seams
