DRAUGHT PROOFING WINDOWS

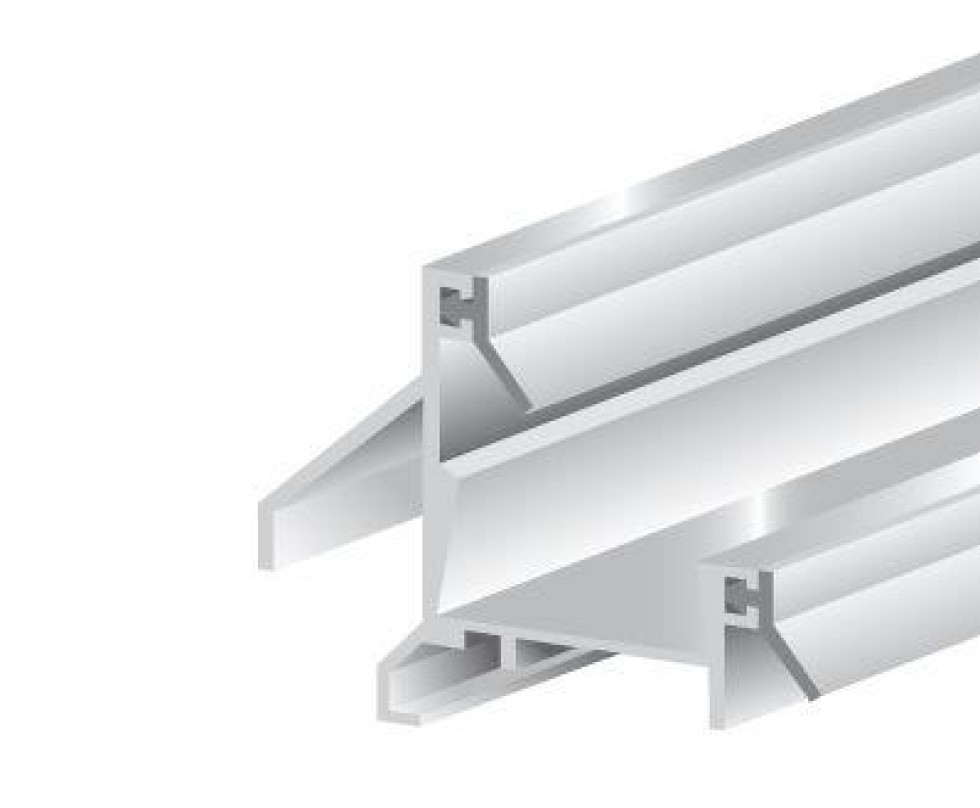

Sill profile ANB 11 is a aluminium profile with TPE seal for inward opening windows.
The profile is provided with drainage holes, allowing draught and water to be kept outside of the house.
Description
- Aluminium profile
- Plastic (TPE) seal
- Equipped with drainage holes
- Hard plastic end caps available as seperate items
- Customization possible
- Anodisation possible (on request)
Application:
- For inward opening windows
- Cut to length possible

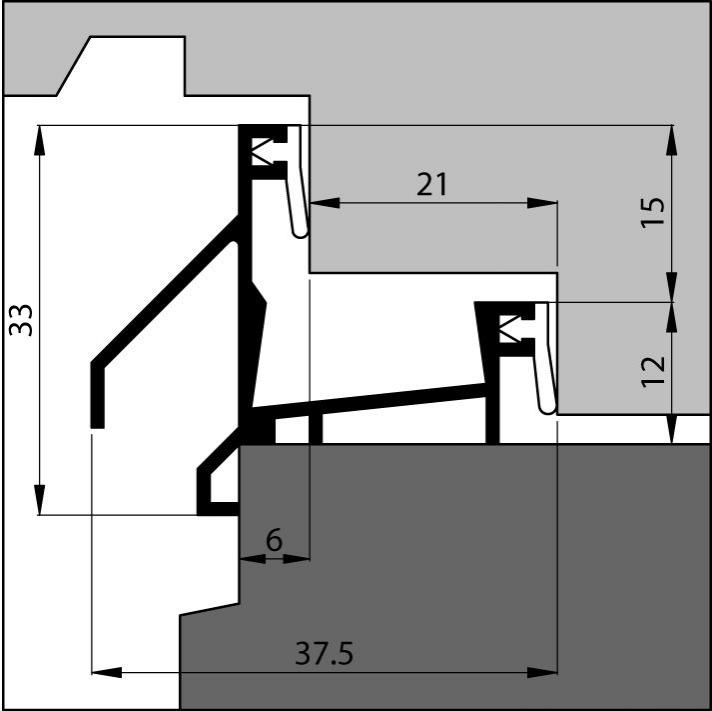

Technical details
- Max gap: 6 mm
- Width profile: 37,5 mm
- Height: 33 mm
- Pre-drilled 3,2 mm with countersunk screw holes
Specifications
All standard lengths can be cut to length.
| LENGTH | ART.NR | COLOUR | EAN (PC.) | UNIT |
| 300 cm | 350100230 | Alu. | 8711286302239 | 5 pc. |
Note: It is possible to purchase the product individually at your local hardware store or home improvement center.
Installation advice
To ensure the sill profile functions properly, it is important to install it correctly. Please read the included mounting instructions and follow the step-by-step guide.
Prepare the necessary materials in advance:
- Tape measure or folding ruler
- Pencil
- Hacksaw and file
- Drill with a Phillips bit
- Caulk
Step-by-step guide: Installing profile ANB 11
- Measure the length of the sill to determine the required length of the sill profile.
- Mark the correct length on the sill profile.
- Cut the sill profile to size.
- File off any burrs that may have formed on the aluminum.
- Place the profile on the sill, ensuring the seal is positioned against the door.
- Secure the sill profile with screws
- Caulk the side seams or place the end caps
