MOISTURE PROOFING DOORS & WINDOWS

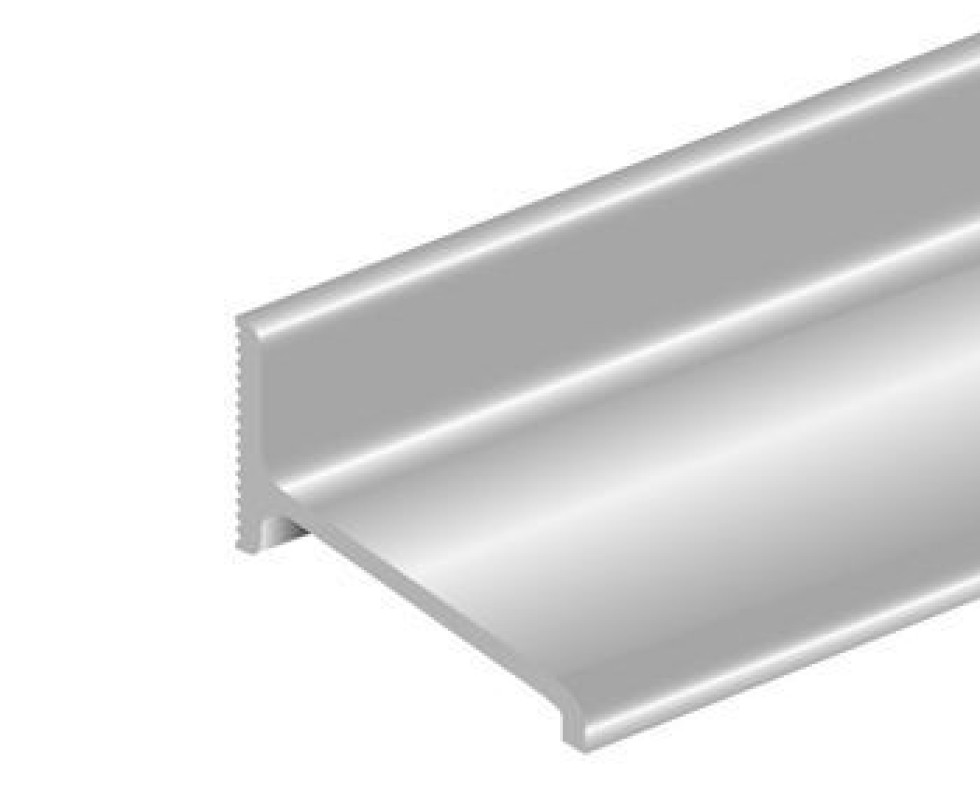

With this extra wide rain deflector ALD A150 you can easily prevent dirt and rainwater from running into the outer wall along the facade.
The aluminium profile can be placed as both a top and bottom sill for inward and outward opening doors and windows. This way there is a good transition from the wall to the frame.
Description
- Aluminium profile (quality 6060 T66)
- Quick and easy to install
- Available in powder coating (RAL colour)
- Optional: pre-drilled
- Application: inward and outward opening doors and windows
Technical details
- Width: 50 mm
- Seal or mount with screws
- A=50 mm B=21 mm C=37 mm
Specifications
Can be cut to size.
| LENGTH | ART.NR | COLOUR | EAN (PC.) | UNIT |
| 500 cm | 430900950 | Alu. | 8711286340248 | 10 pc. |
Note: It is possible to purchase the wear strip individually at your local hardware store or home improvement center.
Installation advice
For the rain deflector to function properly, the correct processing of the profile is essential. You can download the processing instructions for this and follow the step-by-step plan.
Prepare the necessary materials in advance:
- Tape measure or folding rule
- Pencil
- Hacksaw and file
Step-by-step guide: installing rain deflector ALD A150
- Measure the width of the frame or door
- Mark the correct length on the rain deflector
- Cut the rain deflector to size
- File off any sharp edges of the aluminum
- Place the rain deflector above/below the frame or on the door
