DRAUGHT PROOFING WINDOWS

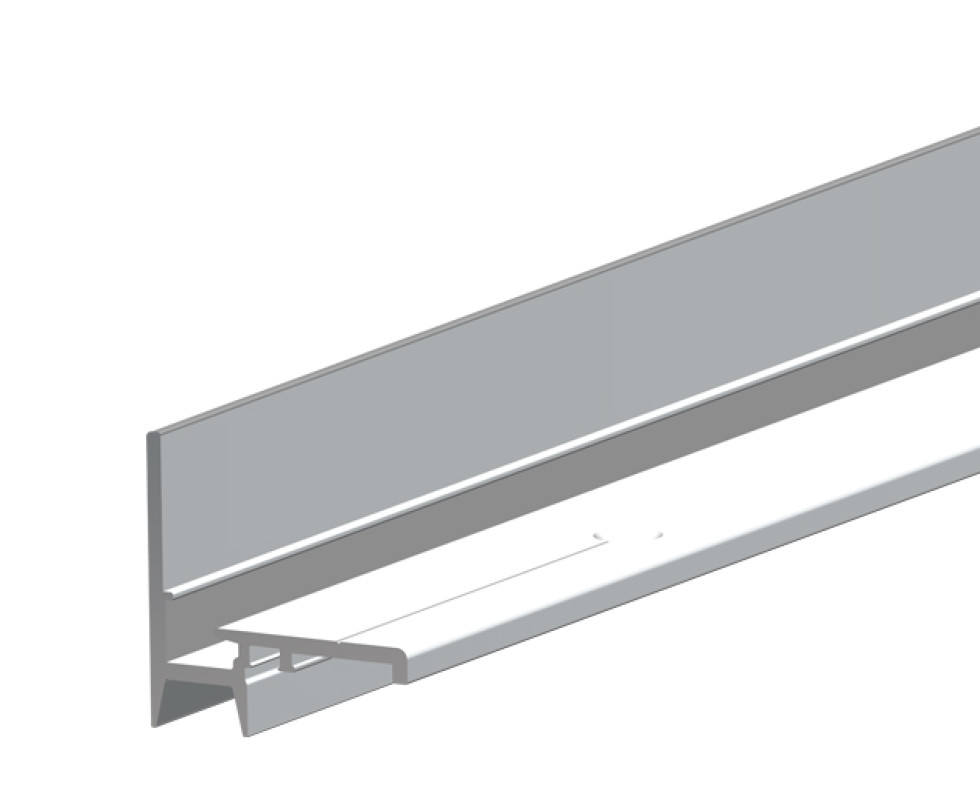

Glazing profile BS-8 is an aluminium profile for placing in frames with interior glazing. By using a glazing profile, you prevent the glass from standing directly on the frame and 'not being able to breathe'. The profile is also provided with ventilation slots.
In addition, the glass remains safely in place, the glass is protected against damage and the glazing profile has an insulating effect.
Description
- Good sealing
- Anodized aluminum profile (quality 6060 T66)
- 100% recyclable
- Easy installation
- Available in powder coating (RAL color)
- Optional: heel seal (string) made of EPDM
- Application: frames with interior glazing
- Customization possible
Technical details

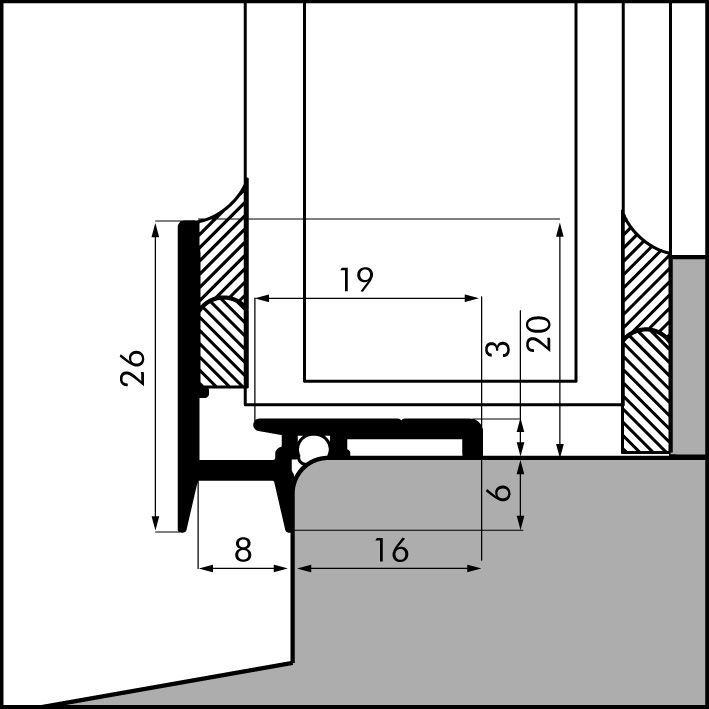

- Width x height: 24 mm x 26 mm
- Stiffness: class A (+2000/-2000 Pa)
- Strength: class 5 (+3000/-3000 Pa)
- KOMO Certified (no. 40069)
Specifications
All standard lengths can be cut to size.
| LENGTH | ART.NR | COLOUR | EAN (PC.) | UNIT |
| 500 cm | 741050950 | VOM1 | 8711286480814 | 5 st. |
| Heel seal | 790400002 | Black | 8711286480845 | 50 m. |
Performance
KOMO Certified: no. 40069
Stiffness according to class A (+2000/-2000 Pa) NEN-EN 12210
Strength according to class 5 (+3000/-3000 Pa) NEN-EN 12210
Installation advice
For the glazing profile to function properly, the correct processing of the profile is essential. The assembly instructions can be requested.
Prepare the necessary materials in advance:
- Tape measure or folding rule
- Pencil
- Hacksaw and file
