DRAUGHT PROOFING WINDOWS

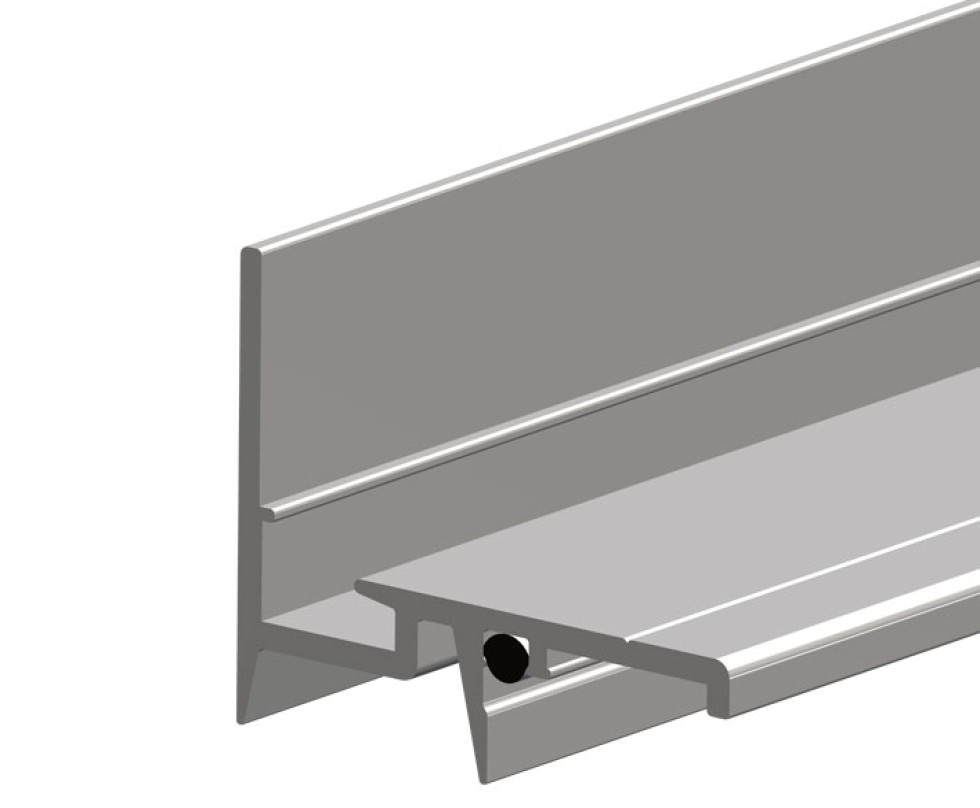

Frames with interior glazing are suitable for placing BS-15 glazing profiles. The glazing profile prevents the glass from standing directly on the frame and 'not being able to breathe'. The profile is therefore equipped with ventilation slots.
A glazing profile also ensures that the glass remains safely in place, protects the glass from damage and has an insulating effect.
Description
- Good sealing
- Anodized aluminum profile (quality 6060 T66)
- 100% recyclable
- Easy installation
- Available in powder coating (RAL color)
- Optional: heel seal (string) made of EPDM
- Application: frames with interior glazing
- Customization possible
Technical details

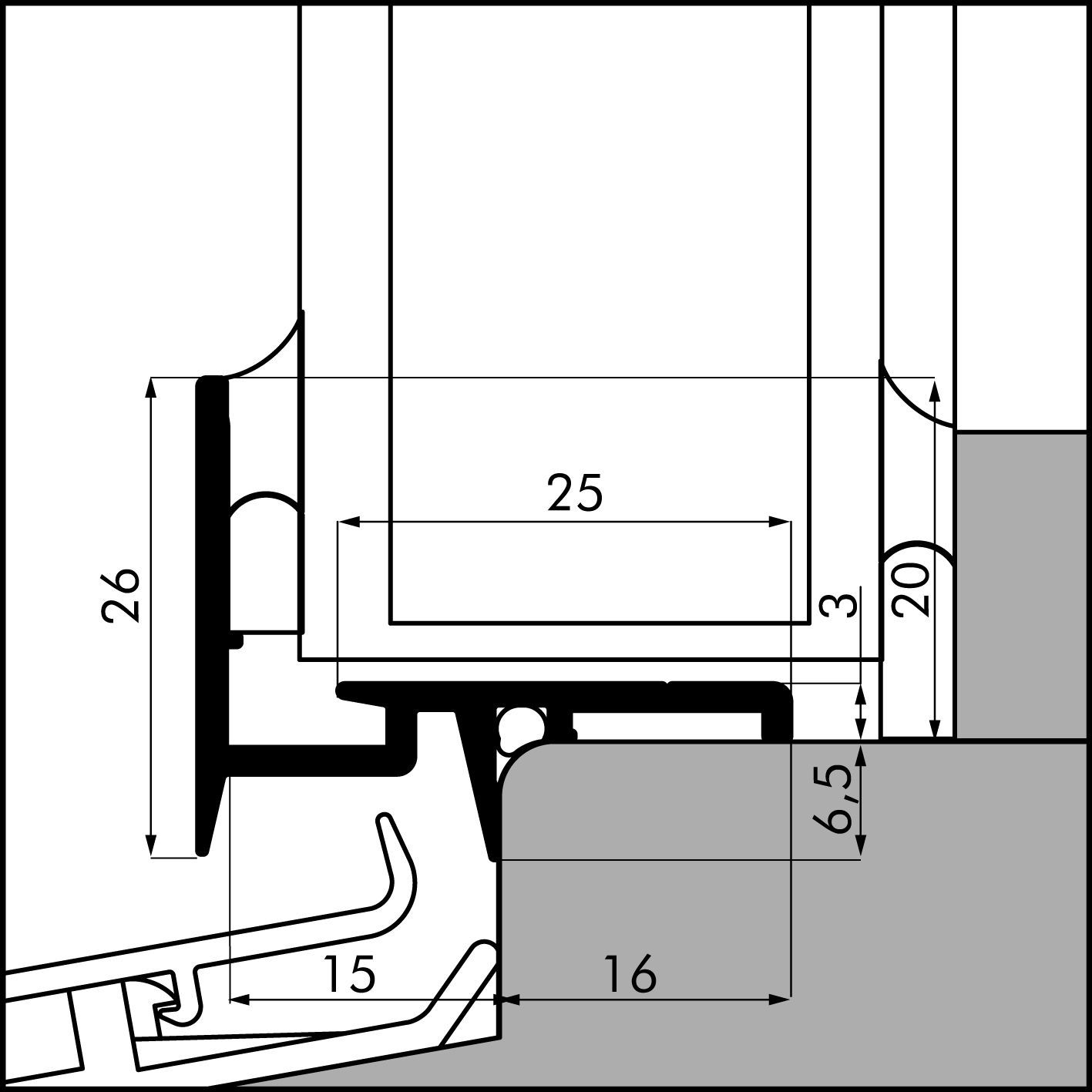

- Width x height: 31 mm x 26 mm
- Stiffness: class A (+2000/-2000 Pa)
- Strength: class 5 (+3000/-3000 Pa)
- KOMO Certified (no. 40069)
Specifications
All standard lengths can be cut to size.
| LENGTH | ART.NR | COLOUR | EAN (PC.) | UNIT |
| 500 cm | 741250950 | VOM1 | 8711286484010 | 5 st. |
| Heel seal | 790400002 | Black | 8711286480845 | 50 m. |
Performance
KOMO Certified: no. 40069
Stiffness according to class A (+2000/-2000 Pa) NEN-EN 12210
Strength according to class 5 (+3000/-3000 Pa) NEN-EN 12210
Installation advice
For the glazing profile to function properly, the correct processing of the profile is essential. The assembly instructions can be requested.
Prepare the necessary materials in advance:
- Tape measure or folding rule
- Pencil
- Hacksaw and file
