No more fingers between the door with Ellen's finger protection profiles. Protects the hinge side of the door, both on the inside and the outside. This way, there is no more gap between the frame and the door.

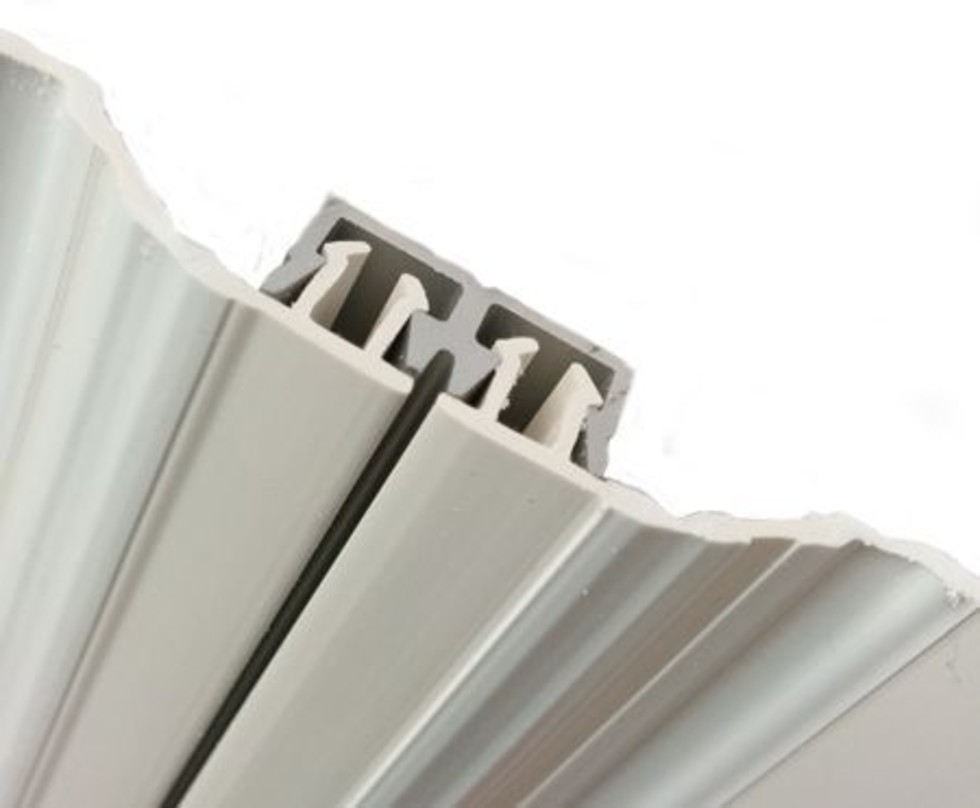

With the aluminium coupling profile, it is possible to connect two finprotect profiles to each other. This way, even large gaps between the frame and the door can be properly sealed.
By using the coupling profile, you can cover an opening of up to 240 mm.
Description
- Aluminium profile
- Connects any Finprotect Plus profile
- For indoor use
- Can be installed in 20 minutes
- Easy to dismantle and maintain
Technical details
- Length 250 cm
- Can be cut to length
- Tested for 1 million door movements
- According to NEN 8624 and EN 16654 guidelines
- TÜV certified
Specifications
Standaard length is easy to cut to size.
| LENGTH | ART.NR | EAN (PC.) | UNIT |
| 250 cm | 805700250 | 8711286338689 | 1 pc. |
Installation advice
Fingers trapped between the door can easily be prevented by correctly mounting the finger protection profile. Read the supplied mounting instructions, watch the mounting instruction video and follow the step-by-step plan.
Prepare the necessary materials in advance:
- Tape measure or folding rule
- Pencil
- Hacksaw
- File
- Drill with Phillips bit
Step-by-step guide: installing Finprotect Plus
- Measure the height of the door. Then subtract 10 mm from this
- Mark where the aluminium holder profile should be: 10 mm from the side and 5 mm from the top
- Mark the correct size on the aluminium holder profile. Note: average the hole pattern for optimal attachment!
- Shorten the aluminium profile to the correct size with the hacksaw and file off any burrs with the file
- Mark the same length as the holder profile on the plastic protection profile
- Shorten the plastic profile to the correct size with the hacksaw and file off any sharp bits with the file
- Screw the holder profile onto the door
- Screw the holder profile onto the frame. Keep the same height and distance here as with the holder profile on the door
- Click the plastic profile into the holder profile. Align the top of both profiles equally to prevent torsion
- Make sure that Finprotect Plus completely closes the gap at the bottom of the door!
