FINGER SAFETY
Never get your fingers caught in the door again with Finprotect Plus. The finger protection profile for wooden flush doors and wooden rebated doors.
Protects the hinge side of the door, both on the inside and the outside of interior doors. This way, there is no more gap between the frame and the door. And you can easily prevent trapped fingers.
Solid and beautifully designed profile that has been carefully tested and contributes to a safe environment.
Description
- Aluminium holder profile
- Plastic protection profile
- Completely covers hinge side

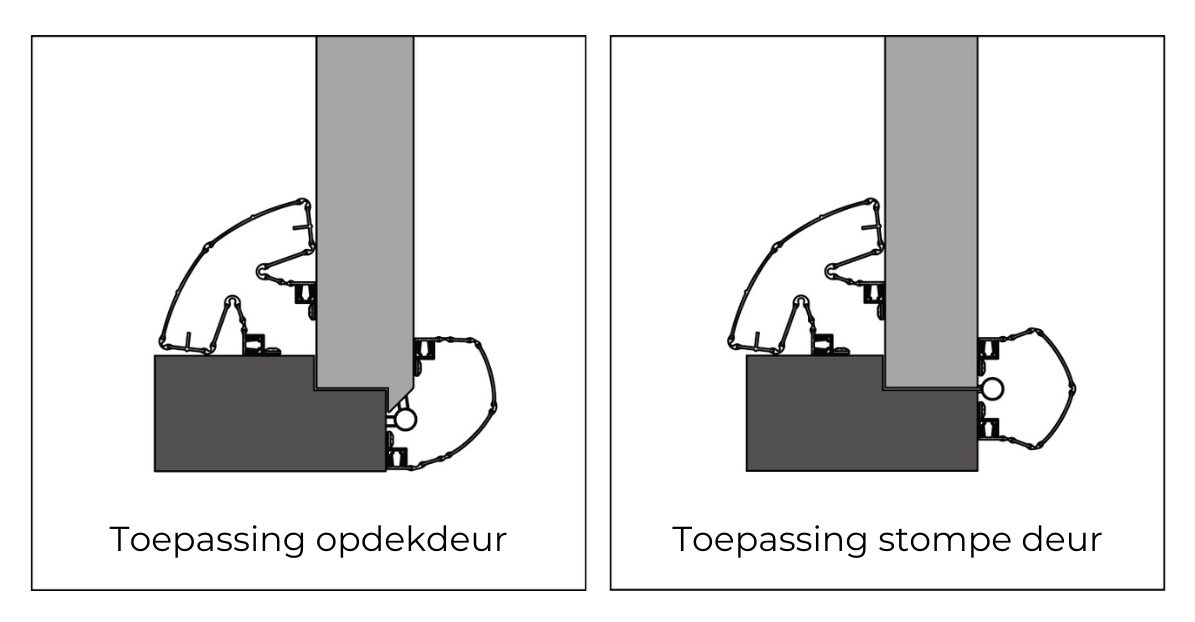

- For wooden flush doors and wooden rebated doors
- For indoor use only!
- Installs in 20 minutes
- Easy to dismantle and maintain
- Available in white, silver, anthracite, bronze and black
Technische details
- Length 198 cm and 250 cm
- Can be shortened to the correct size
- Including (wood) screws for mounting
- Tested for 1 million door movements
- In accordance with the guidelines NEN 8624 and EN 16654
- TÜV certified
Specifications
All standard lengths can be cut to size.
| LENGTH | ART.NR | COLOUR | EAN (pc.) | unit |
| 198 cm | 805301198 | White | 8711286337408 | 5 sets |
| 198 cm | 805304198 | Black | 8711286337422 | 5 sets |
| 198 cm | 805321198 | Bronze | 8711286337460 | 5 sets |
| 198 cm | 805322198 | Silver | 8711286337484 | 5 sets |
| 198 cm | 805310198 | Anthracite | 8711286338825 | 5 sets |
| 250 cm | 805301250 | White | 8711386337415 | 5 sets |
| 250 cm | 805304250 | Black | 8711286337439 | 5 sets |
| 250 cm | 805321250 | Bronze | 8711286337477 | 5 sets |
| 250 cm | 805322250 | Silver | 8711286337491 | 5 sets |
| 250 cm | 805310250 | Anthracite | 8711286338832 | 5 sets |
Note: It is possible to purchase the product per set at your local hardware store or home improvement center.
Installation advice
Fingers trapped between the door can easily be prevented by correctly mounting the finger protection profile. Read the supplied mounting instructions, watch the mounting instruction video and follow the step-by-step plan.
Prepare the necessary materials in advance:
- Tape measure or folding rule
- Pencil
- Hacksaw
- File
- Drill with Phillips bit
Step-by-step guide: installing Finprotect Plus 5090
- Measure the height of the door. Then subtract 10 mm from this
- Mark where the aluminium holder profile should be: 10 mm from the side and 5 mm from the top
- Mark the correct size on the aluminium holder profile. Note: average the hole pattern for optimal attachment!
- Shorten the aluminium profile to the correct size with the hacksaw and file off any burrs with the file
- Mark the same length as the holder profile on the plastic protection profile
- Shorten the plastic profile to the correct size with the hacksaw and file off any sharp bits with the file
- Screw the holder profile onto the door
- Screw the holder profile onto the frame. Keep the same height and distance here as with the holder profile on the door
- Click the plastic profile into the holder profile. Align the top of both profiles equally to prevent torsion
- Make sure that Finprotect Plus completely closes the gap at the bottom of the door!
