DRAUGHT PROOFING DOORS

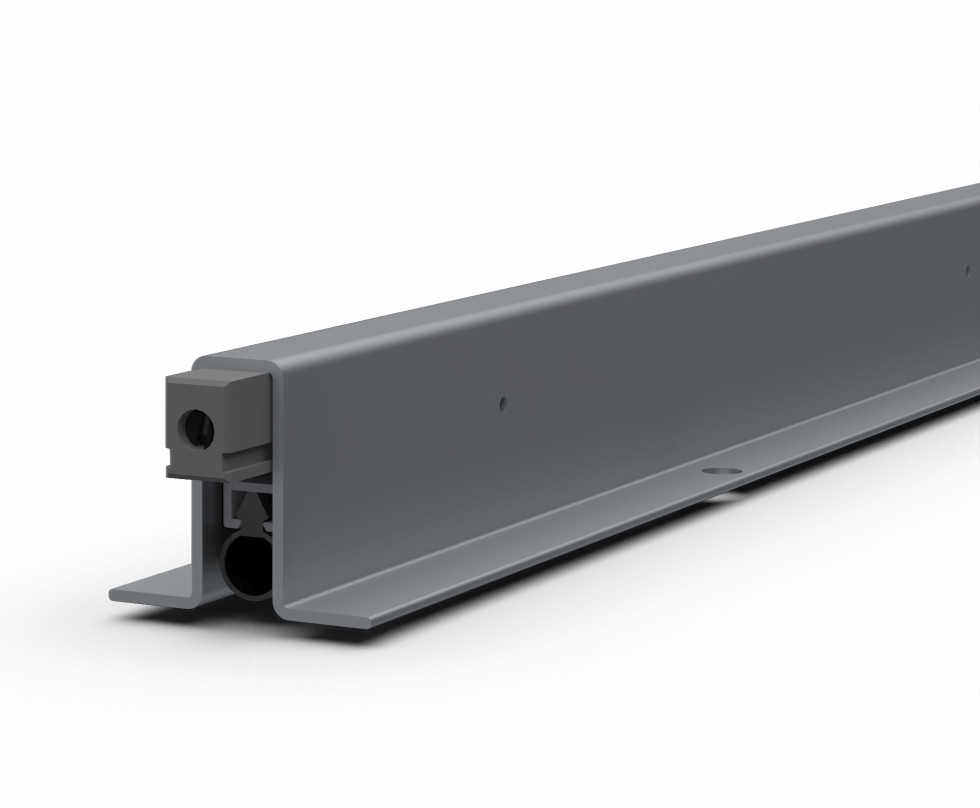

EllenMatic Omega is an automatic drop seal for interior and exterior doors in a sheltered environment.
The silicone profile automatically drops down as soon as the door closes. This way, draughts are easily kept outside.
Description
- Aluminium housing
- Automatic sealing
- Flexible silicon seal
- Application: interior doors and exterior doors in a sheltered environment
Technical details
- Max gap: 10 mm
- Minimum gap: 4 mm

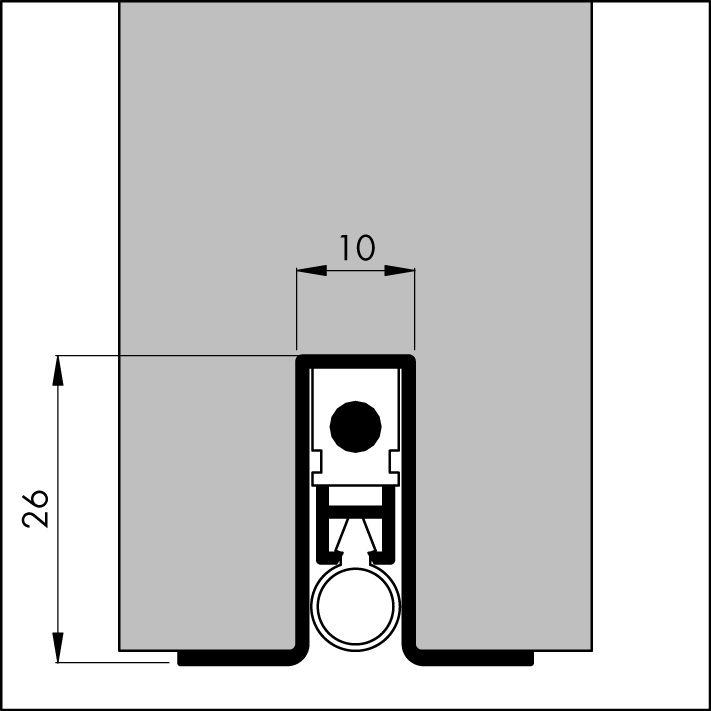

- Groove size: 10,5 x 26 mm
- Standard lengths can be shortened by 100 mm
Specifications drop seal
All standard lengths can be shortened by 100 mm.
| LENGTH | ART.NR | EAN (PC.) | UNIT |
| 630 mm | 200900131 | 8711286220410 | 10 pc. |
| 730 mm | 200900132 | 8711286220427 | 10 pc. |
| 830 mm | 200900133 | 8711286220434 | 10 pc. |
| 930 mm | 200900134 | 8711286220441 | 10 pc. |
| 1030 mm | 200900135 | 8711286220458 | 10 pc. |
Note: It is possible to purchase the product individually at your local hardware store or home improvement center.
Installation advice
Draft in the house can easily be stopped by correctly installing the drop threshold. Read the supplied installation instructions, watch the video and follow the step-by-step plan.
Prepare the necessary materials in advance:
- Tape measure or folding rule
- Pencil
- Hacksaw
- File
- Drill with Phillips bit
Step-by-step guide: installing EllenMatic Omega
- Measure the groove dimensions in the door to ensure that the drop seal fits in the groove
- Then measure the width of the door to determine the length of the drop seal
- Mark the correct length on the drop seal
Note: shorten on the non-activator button side! - Cut the drop seal to size
- File off any burrs that may have formed on the aluminium
- Slide the drop seal into the groove and screw fix in place
- Adjust the drop seal until the desired sealing is achieved
- Test the sealing using a piece of paper > the paper must be secure, but must not tear
