DRAUGHT PROOFING DOORS

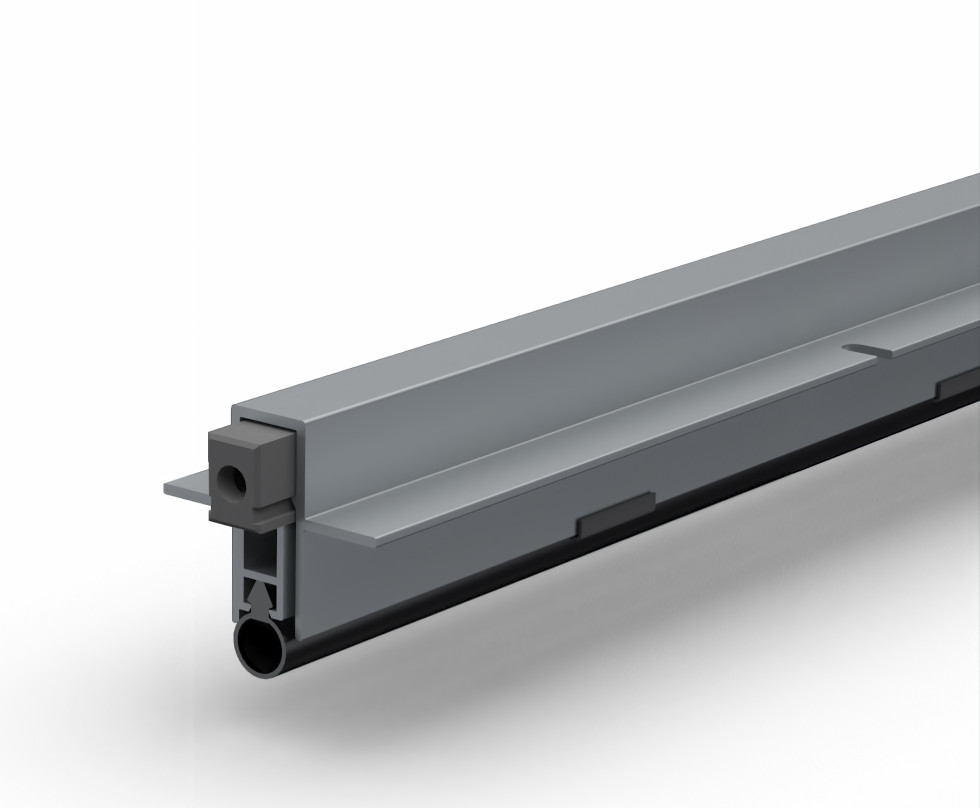

The EllenMatic 2K Euro is an automatic drop seal for uPVC doors. This drop seal is equipped with a Euro groove.
By installing an automatic drop seal, draughts and swirling dust can be easily prevented.
Description
- Aluminium housing
- Automatic sealing
- Flexible silicon seal
- Ideal for uneven surfaces
- Application: uPVC doors
- Easy installation > can be secured with screws at the bottom of the door
Technical details
- Max gap: depending on the detailling of the door
- Minimum gap: 3 mm

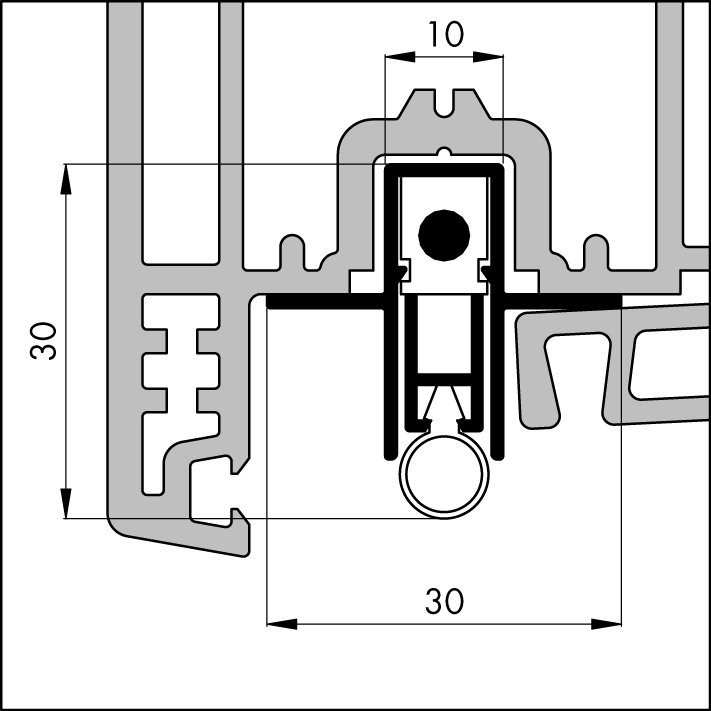

- Groove size: 10 x 30 mm
- Standard lengths can be shortened by 100 mm
Specifications drop seal
All standardlengths can be shortened by 100 mm.
| LENGTH | ART.NR | EAN (PC.) | UNIT |
| 630 mm | 200700131 | 8711286222018 | 10 pc. |
| 730 mm | 200700132 | 8711286222025 | 10 pc. |
| 830 mm | 200700133 | 8711286222032 | 10 pc. |
| 930 mm | 200700134 | 8711286222049 | 10 pc. |
| 1030 mm | 200700135 | 8711286222056 | 10 pc. |
| 1130 mm | 200700136 | 8711286222063 | 10 pc. |
| 1230 mm | 200700137 | 8711286222070 | 10 pc. |
Note: It is possible to purchase the product individually at your local hardware store or home improvement center.
Installation advice
Draft can easily be stopped by correctly installing the drop seal. Read the supplied installation instructions, watch the video and follow the step-by-step plan.
Prepare the necessary materials in advance:
- Tape measure or folding rule
- Pencil
- Hacksaw
- File
- Drill with Phillips bit
Step-by-stap guide: installing EllenMatic 2k Euro
- Measure the groove dimensions in the door to ensure that the drop seal fits in the groove
- Then measure the width of the door to determine the length of the drop seal
- Mark the correct length on the drop seal
Note: shorten on the non-activator button side! - Cut the drop seal to size
- File off any burrs that may have formed on the aluminium
- Slide the drop seal into the groove and secure by screwfixing it in the door
- Adjust the drop seal until the desired sealing is achieved
- Test the sealing using a piece of paper > the paper must be secure, but must not tear
