DRAUGHT PROOFING DOORS

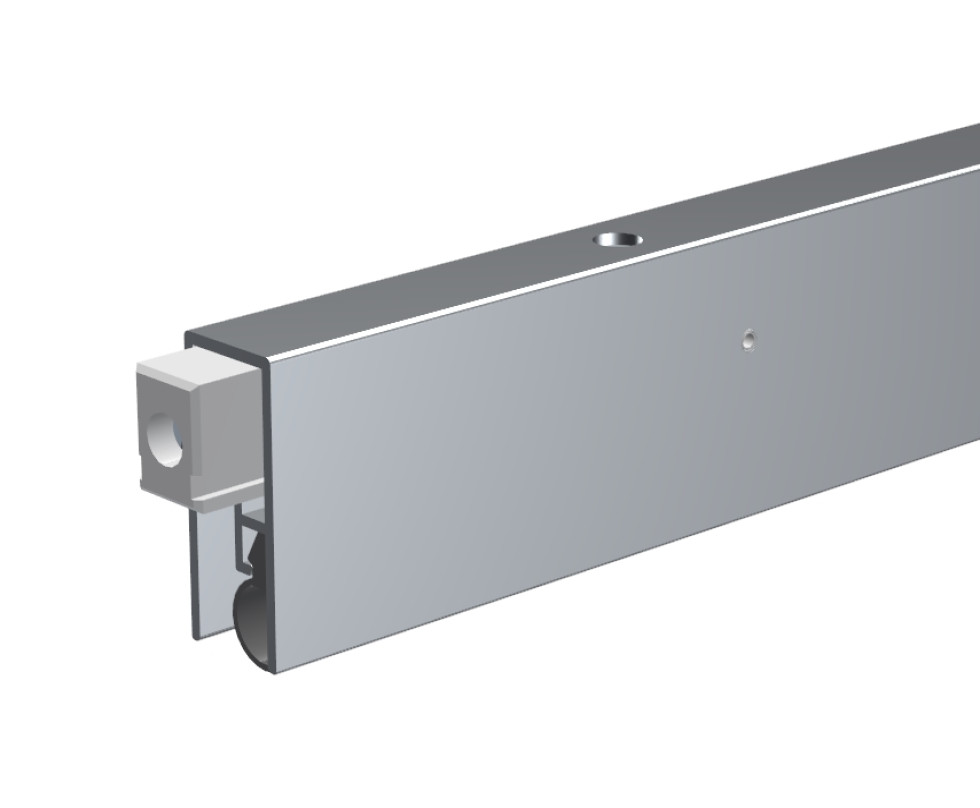

The EllenMatic 2K is an automatic drop seal for uPVC doors.
When there is a gap under a door, draughts and dust can easily pass underneath. By installing an automatic drop seal, this can be easily prevented.
Description
- Aluminium housing
- Automatic sealing
- Flexible silicon seal
- Ideal for uneven surfaces
- Application: uPVC doors
Technical details
- Max gap: depending on the door detailing
- Minimum gap: 3 mm

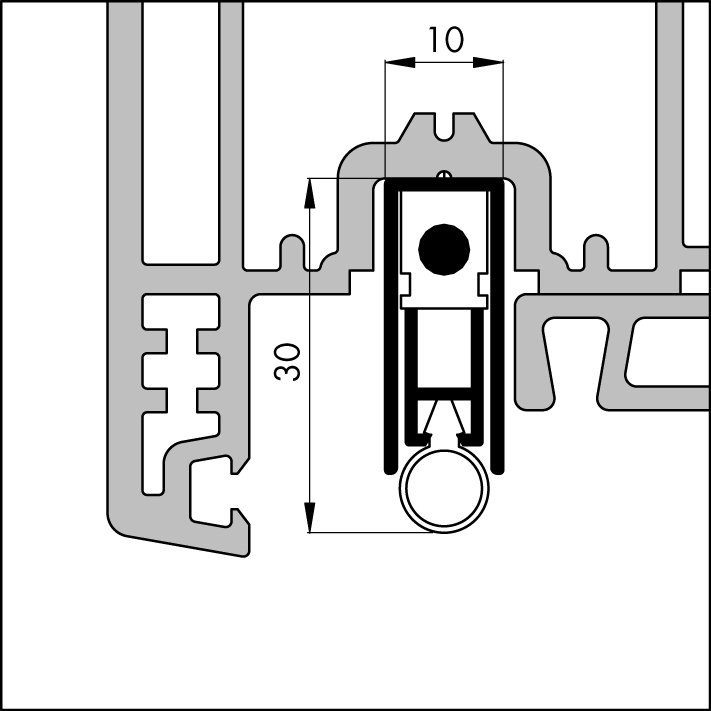

- Groove size: 10 x 30 mm
- Standard lengths can be shortened by 100 mm
Specifications drop seal
All standard lengths can be shortened by 100 mm.
| LENGTH | ART.NR | EAN (PC.) | UNIT |
| 630 mm | 200400131 | 8711286219414 | 10 pc. |
| 730 mm | 200400132 | 8711286219421 | 10 pc. |
| 830 mm | 200400133 | 8711286219438 | 10 pc. |
| 930 mm | 200400134 | 8711286219445 | 10 pc. |
| 1030 mm | 200400135 | 8711286219452 | 10 pc. |
| 1130 mm | 200400136 | 8711286219469 | 10 pc. |
| 1230 mm | 200400137 | 8711286219476 | 10 pc. |
Note: It is possible to purchase the product individually at your local hardware store or home improvement center.
Installation advice
Draft can easily be stopped by correctly installing the drop seal. Read the supplied installation instructions, watch the video and follow the step-by-step plan.
Prepare the necessary materials in advance:
- Tape measure or folding rule
- Pencil
- Hacksaw
- File
- Drill with Phillips bit
Step-by-step guide: installing EllenMatic 2k
- Measure the groove dimensions in the door to ensure that the drop seal fits in the groove
- Then measure the width of the door to determine the length of the drop seal
- Mark the correct length on the drop seal
Note: shorten on the non-activator button side! - Cut the drop seal to size
- File off any burrs that may have formed on the aluminium
- Slide the drop seal into the groove and secure with the mounting plates
- Adjust the drop seal until the desired sealing is achieved
- Test the sealing using a piece of paper > the paper must be secure, but must not tear
