DRAUGHT PROOFING DOORS

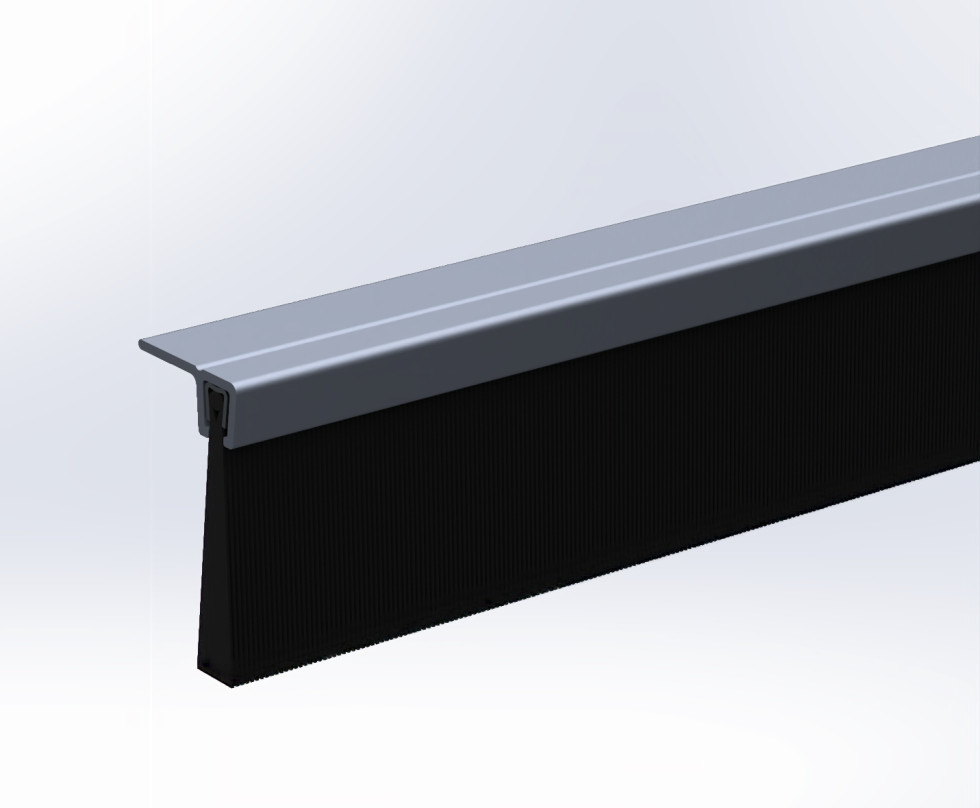

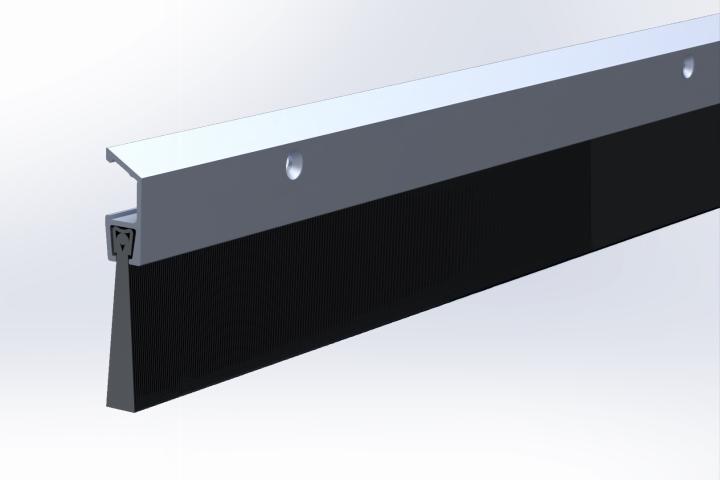

Brush seal IBS 90 32 has a sturdy and wear-resistant brush. This allows you to properly seal a gap under a garage door or industrial door.
Keep drafts, dust and other inconveniences out of the door with this brush profile.

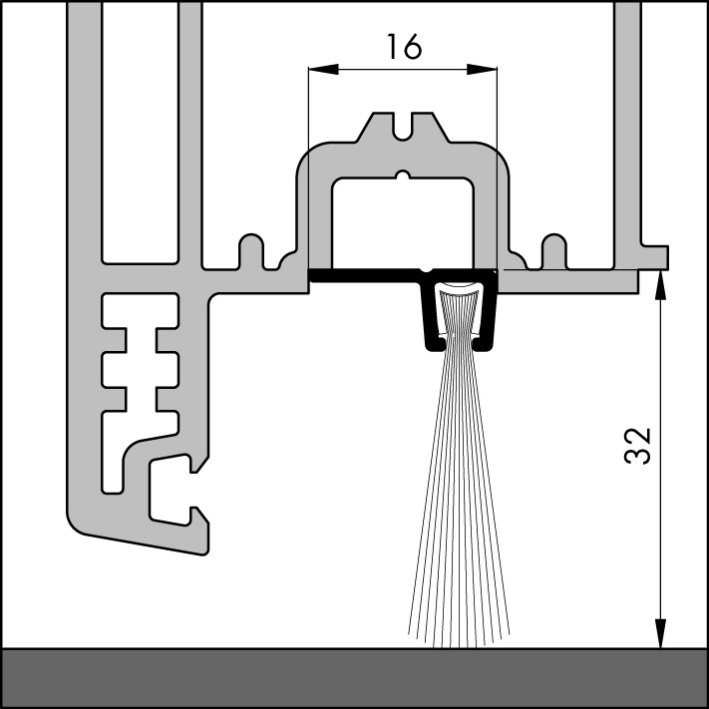

Placement under the door.
Description
- Aluminium quality 6060 T66
- Hard PP brush
- Quick and easy to install
- Sealing for gaps up to 32 mm
- Application: garage doors and industrial doors
- Can be shortened to the correct size
Technical details
- Maximum gap: 32 mm
- Width x height: 16 mm x 32 mm
- Mount using stainless steel screws
- Pre-drilled 2.8 mm
Specifications
All standard lengths can be cut to size.
| LENGTH | ART.NR | COLOUR | EAN (PC.) | UNIT |
| 100 cm | 041600010 | Alu. | 8711286127412 | 10 pc. |
| 300 cm | 041600030 | Alu. | 8711286127436 | 10 pc. |
Note: It is possible to purchase the wear strip individually at your local hardware store or home improvement center.
Installation advice
Draft under garage doors and industrial doors can easily be stopped by correctly mounting this brush profile. Read the supplied mounting instructions and follow the step-by-step plan.
Prepare the necessary materials in advance:
- Tape measure or folding rule
- Pencil
- Hacksaw and file
- Drill with Phillips bit
Step-by-step guide: installing brush seal IBS 90 32
- Measure the width of the garage door to determine the length of the brush seal
- Mark the correct length on the profile
- Cut the profile to size
- File off any sharp edges that may have formed on the aluminium
- Place the brush seal underf the door and screw it in place
