DRAUGHT PROOFING DOORS
With a brush seal you can close a gap under a garage door or industrial door. This way you can easily keep dust and draught outside.

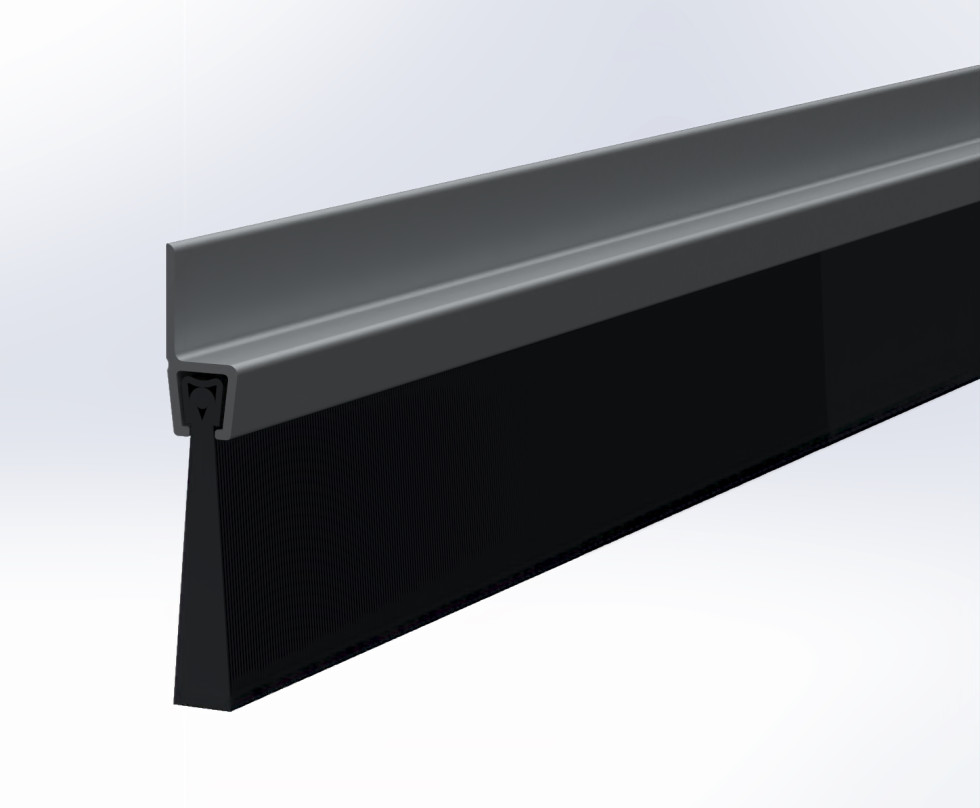

Brush seal IBS 50, with a sturdy and wear-resistant brush, is suitable for revolving, sliding and roller doors.
Description
- Aluminium quality 6060 T66
- Hard PP brush
- Quick and easy to install
- Sealing for gaps up to 33 mm
- Application: garage doors and industrial doors
- Can be shortened to the correct size
Technical details
- Maximum gap: 33 mm
- Brush height: 30 mm
- Holder strip height: 20 mm\
- Mount using stainless steel screws
- 2.8 mm pre-drilled and countersunk
Specifications
All standard lengths can be cut to size.
| LENGTH | ART.NR | COLOUR | EAN (PC.) | UNIT |
| 100 cm | 040700010 | Alu. | 8711286121014 | 10 pc. |
| 250 cm | 040700025 | Alu. | 8711286121250 | 10 pc. |
| 300 cm | 040700030 | Alu. | 8711286121236 | 10 pc. |
Note: It is possible to purchase the wear strip individually at your local hardware store or home improvement center.
Installation advice
Draft under garage doors and industrial doors can easily be stopped by correctly mounting this brush profile. Read the supplied mounting instructions and follow the step-by-step plan.
Prepare the necessary materials in advance:
- Tape measure or folding rule
- Pencil
- Hacksaw and file
- Drill with Phillips bit
Step-by-step guide: installing brush seal IBS 50
- Measure the width of the garage door to determine the length of the brush seal
- Mark the correct length on the profile
- Cut the profile to size
- File off any sharp edges that may have formed on the aluminium
- Place the brush seal on the underside of the door and screw it in place
