DRAUGHT PROOFING SWING DOORS

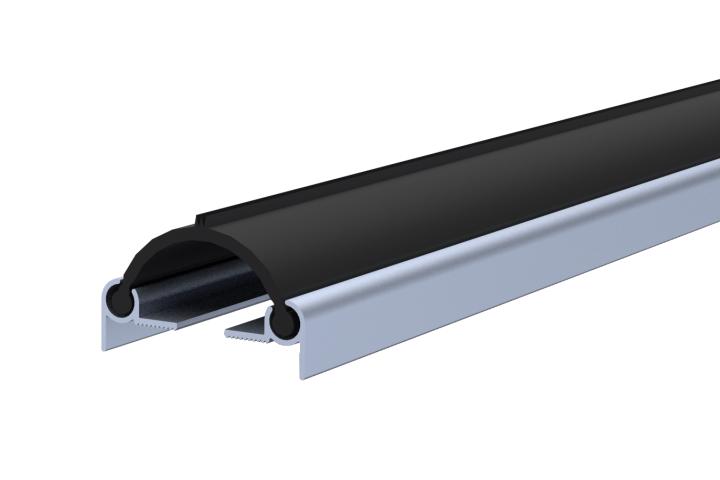

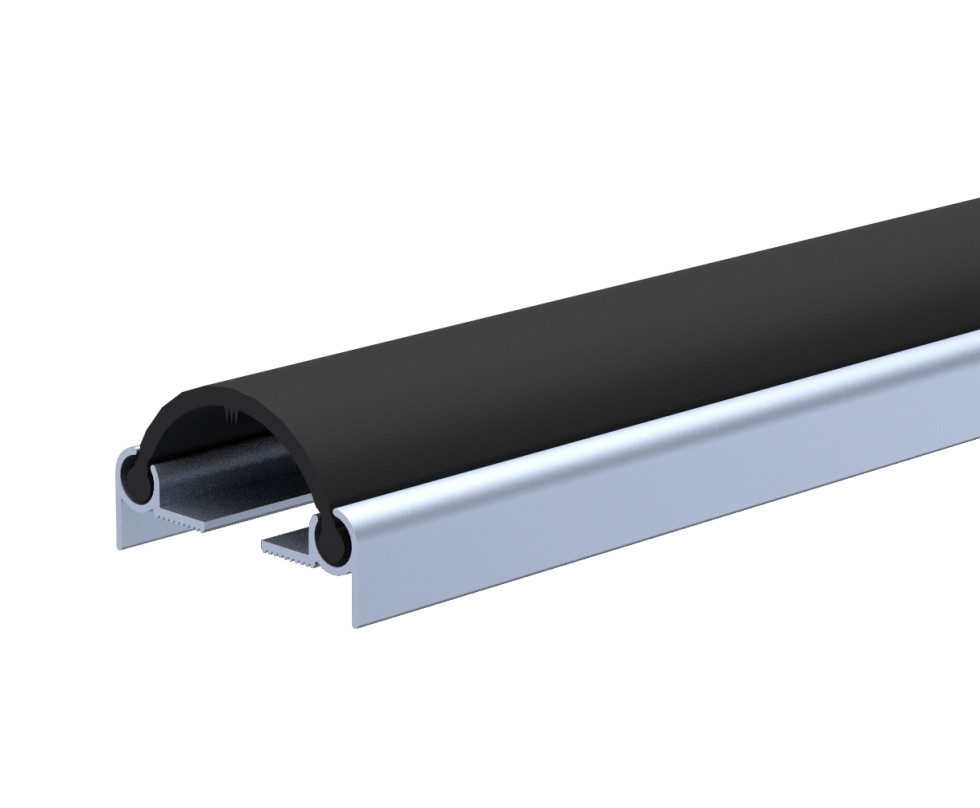

Aluminium swing door profile with flexible plastic (TPE) seal that perfectly closes the space between two swing doors.
A swing door profile is placed on both end sides of the door. The plastic seals touch each other and thus prevent draught and noise.
Description
- Anodized aluminum
- Smooth black plastic (TPE) seal
- Optimal sealing due to the geometry (sealing comb)
- Quick and easy to install
- Application: draught proofing swing doors and revolving doors
- Cut to size and mount with screws
Technical details
- Length: 224 or 250 cm
- Thickness door leaf: 50-60 mm
- Plastic profile width: 75 mm
Specifications
Alle standard lengths can be cut to size.
| LENGTH | ART.NR | COLOUR | EAN (ST.) | UNIT |
| 224 cm | 400150922 | VOM1 | 8711286310012 | 20 pcs. |
| 224 cm | 800800922 | Black | 8711286313013 | 10 pcs. |
| 250 cm | 400150925 | VOM1 | 8711286310029 | 20 pcs. |
| 250 cm | 800800925 | Black | 8711286310020 | 10 pcs. |
Note: It is possible to purchase the wear strip individually at your local hardware store or home improvement center.
Door thickness dimensions
| DOOR THICKNESS A IN CM | 50 | 52 | 54 | 56 | 58 | 60 |
| Size B | 30 | 29 | 28 | 27 | 26 | 25 |
| Size C | 31 | 30 | 29 | 28 | 27 | 26 |
Installation advice
For the swing door profile to function properly, the correct installation of the profile is essential. For this, you can read the mounting instructions supplied and follow the step-by-step plan.
Prepare the necessary materials in advance:
- Tape measure or folding rule
- Pencil
- Hacksaw and file
Step-by-step guide: installing swing door profile 75
- Measure the height of the door
- Draw the correct length on the aluminium holder profiles
- Cut the profiles to size
- File off any sharp edges of the aluminium
- Place the profiles on the edge of the door and screw them in place
- Cut the seals to the same size and place them in the aluminium holder profiles.
- The seals can be placed in 2 ways, make sure that the profiles fit together but do not get stuck.
