FINGER SAFETY

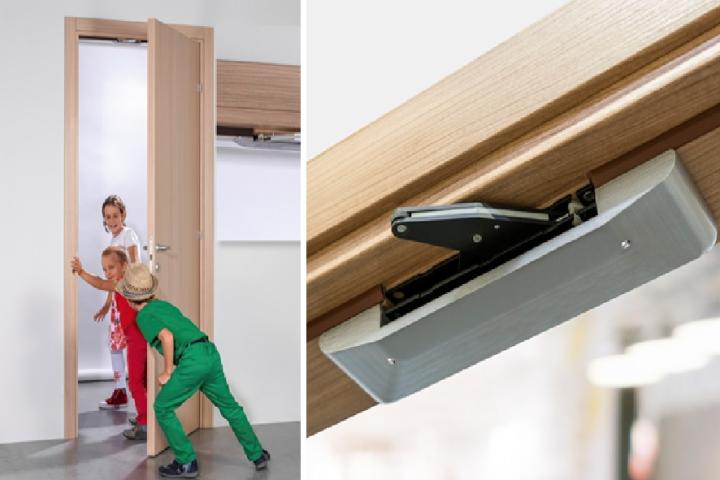

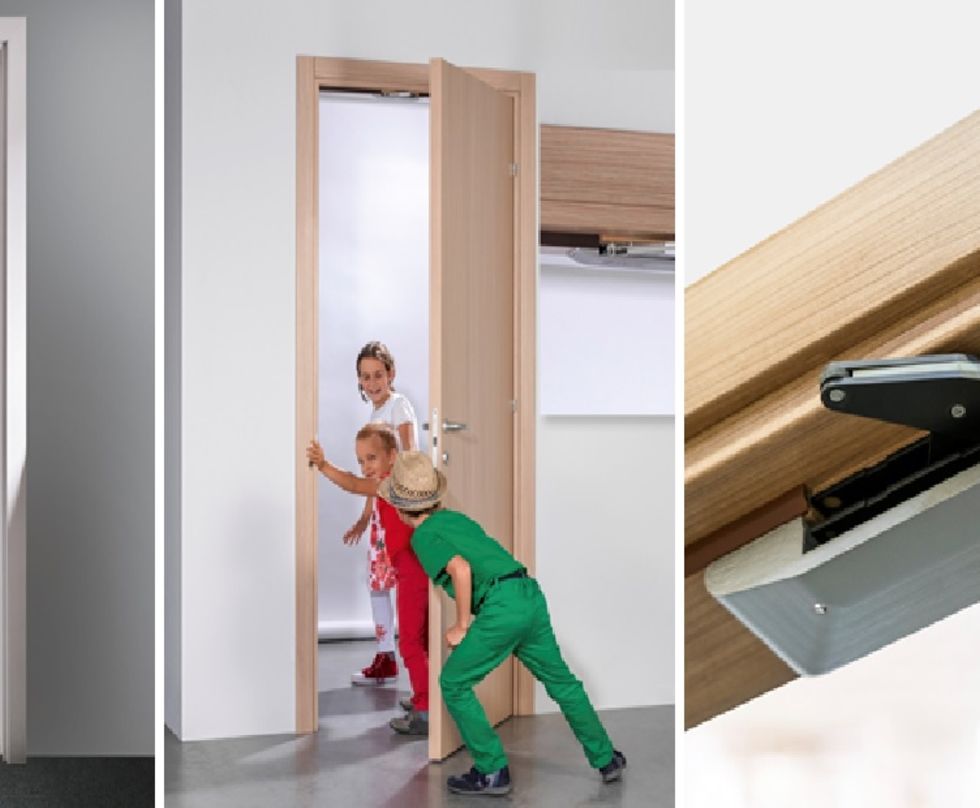

The Ellen Salvadita® is a patented safety system, intended to block the closing side of the door when it slams shut. This can prevent (serious) injuries, especially to children.
Salvadita® blocks the door when it slams shut.
When the door is closed at normal speed, Salvadita® is not activated.

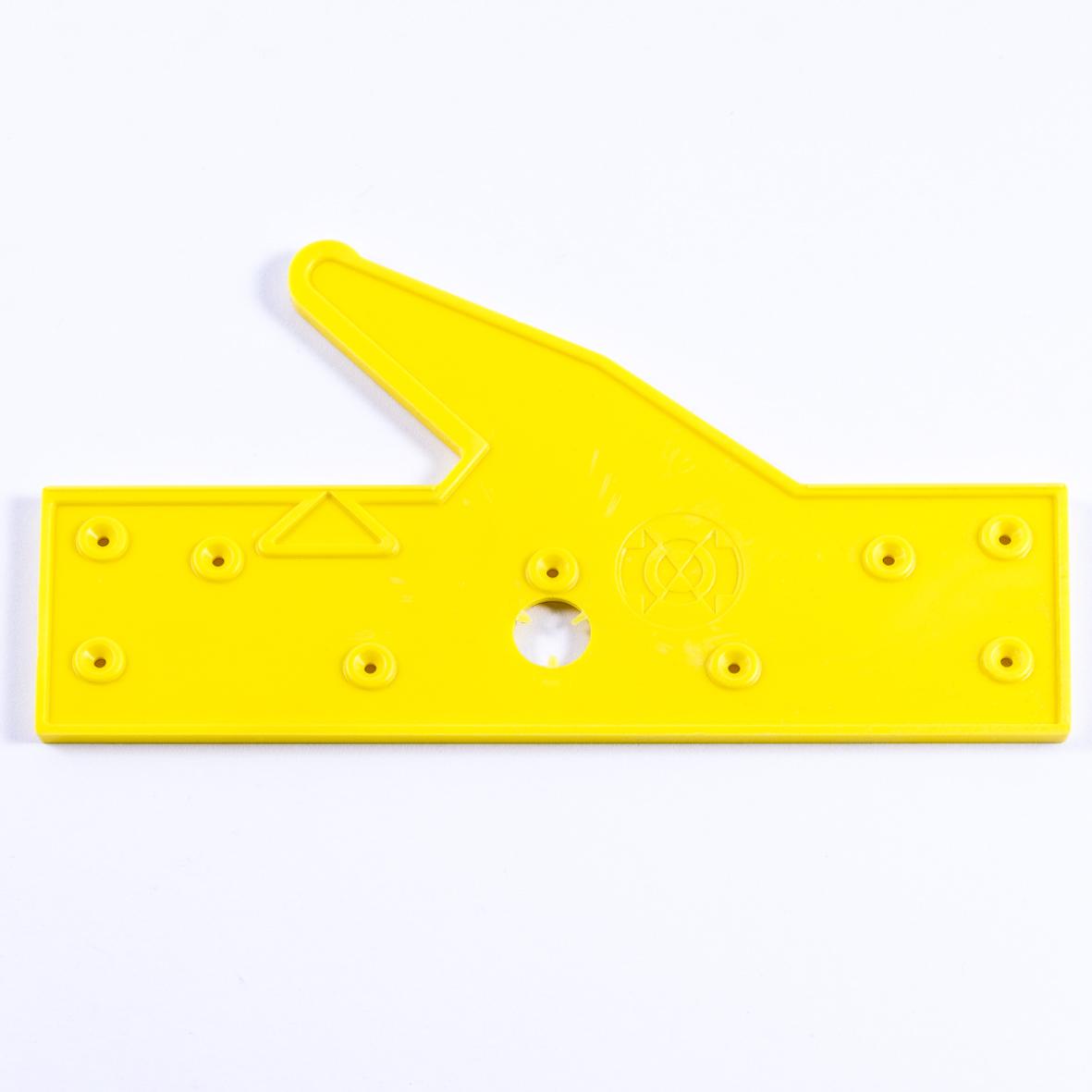

A handy template has been developed to mount the Salvadita® in the right place on the door frame, complete with predefined drill holes. Simply order the mounting template!
Description
- Patented safety system
- Blocks the door when slamming hard
- Aluminium protection profile
- Easy installation
- Application: for interior doors
- Includes double-sided tape for bumper plate
Technical details
- Including screws for mounting
- Tested for 1 million door movements
- Conforms to NEN 8624 and EN 16654 guidelines
- TÜV certified
Specifications
| ARTICLE | ART.NR | COLOUR | EAN (PC.) | UNIT |
| Salvadita | 805700010 | Silver | 8711286339075 | 1 pc. |
| Salvadita template | 805700011 | Yellow | 8711286339082 | 1 pc. |

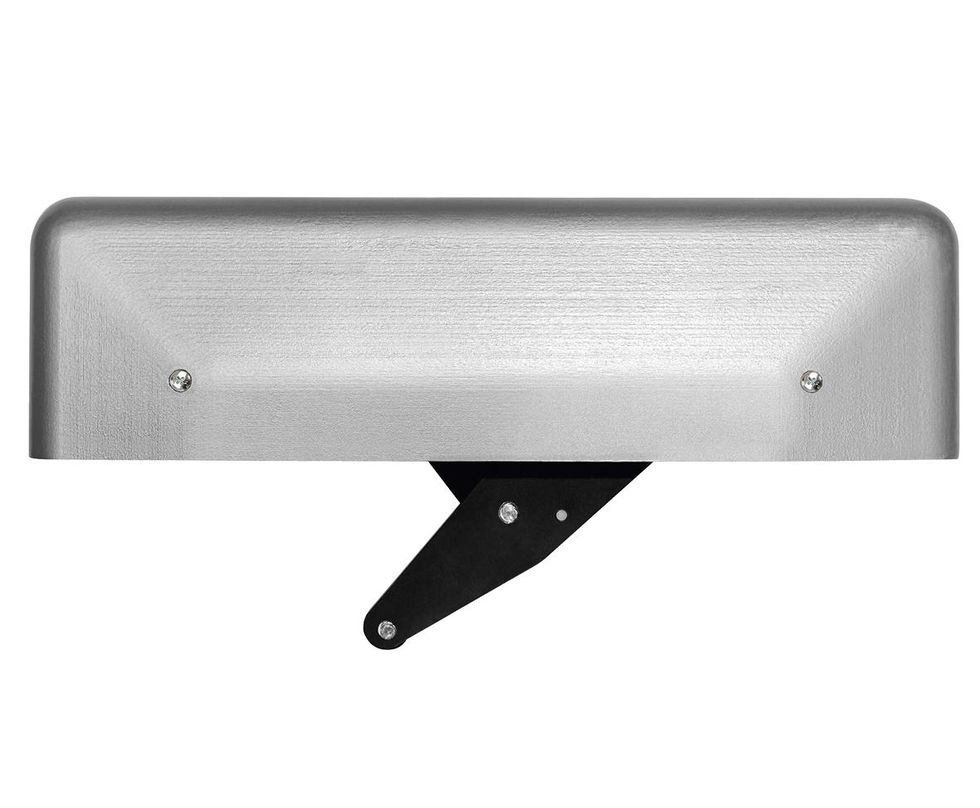

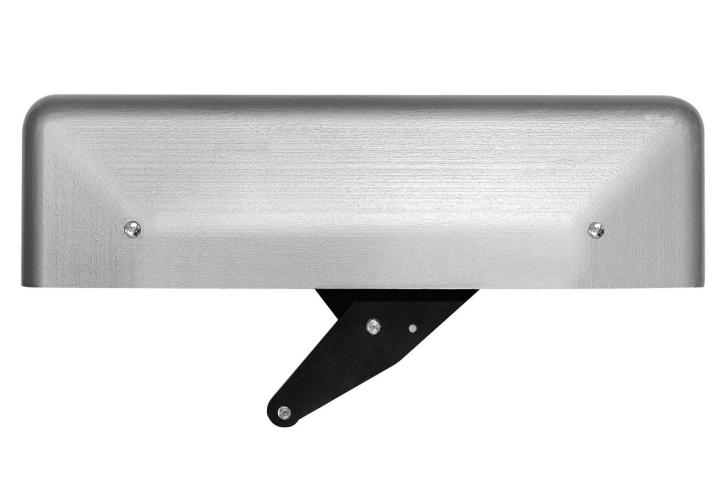

Patented Ellen Salvadita®
Ellen Salvadita® has passed numerous tests and endurance tests, carried out by the HD Institute for Wood Technology Dresden.
The certificate and test report are available from us.
Installation advice
A finger caught in the door is easy to prevent by correctly installing Ellen Salvadita®. Read the supplied installation instructions, watch the installation instruction video and follow the step-by-step plan.
Prepare the necessary materials in advance:
- Tape measure or folding rule
- Pencil
- Pointed drill
- Sandpaper and degreaser
- Drill with Phillips bit

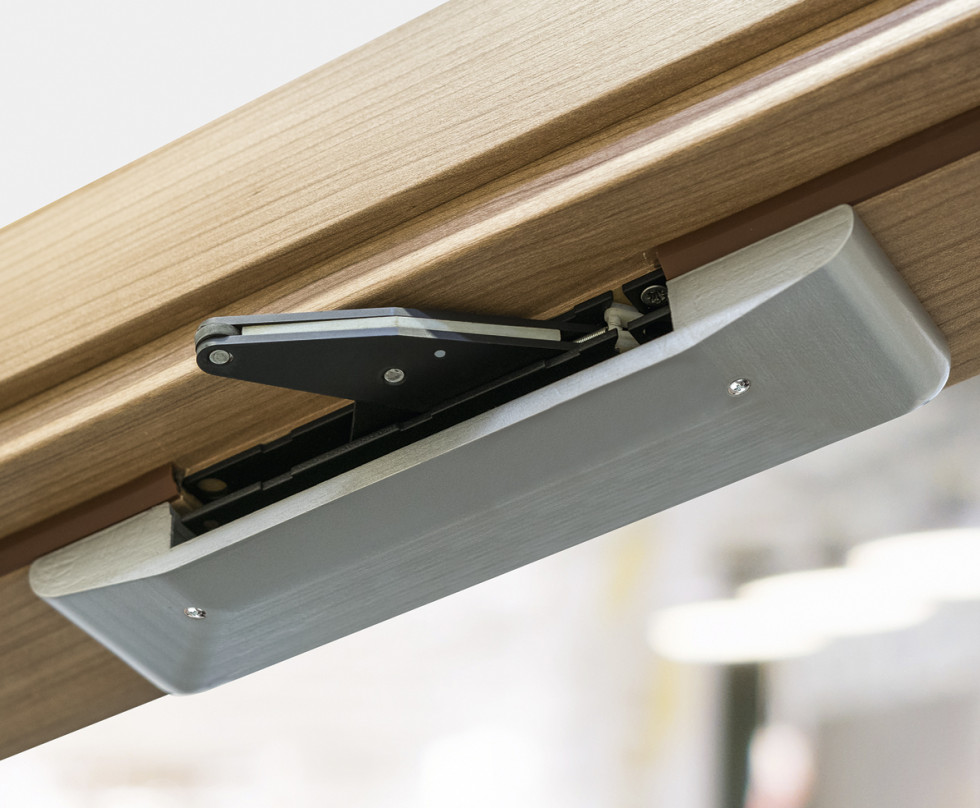

Step-by-step guide: installing Ellen Salvadita®
- Place the door leaf at a distance of 40 mm from the frame.
- Place the template on the upper crosspiece of the frame. Note: The rectangular part must be parallel to the crosspiece. The protruding part of Salvadita® must be able to come into contact with the door leaf.
- Mark the positions of the mounting holes with a pointed drill.
- Place the mounting plate. Make sure that the markings are centered.
- Then tighten the screws in the 5 holes in the mounting plate.
- Screw the Salvadita device with 2 screws.
- Fix the Salvadita cover.
- Degrease the upper side of the door surface.
- Mount the kick plate with the double-sided adhesive tape on the upper side of the door. Note: the plate must be mounted so that the first point of contact with the Salvadita finger guard is in the middle of the plate.
