DRAUGHT PROOFING DOORS

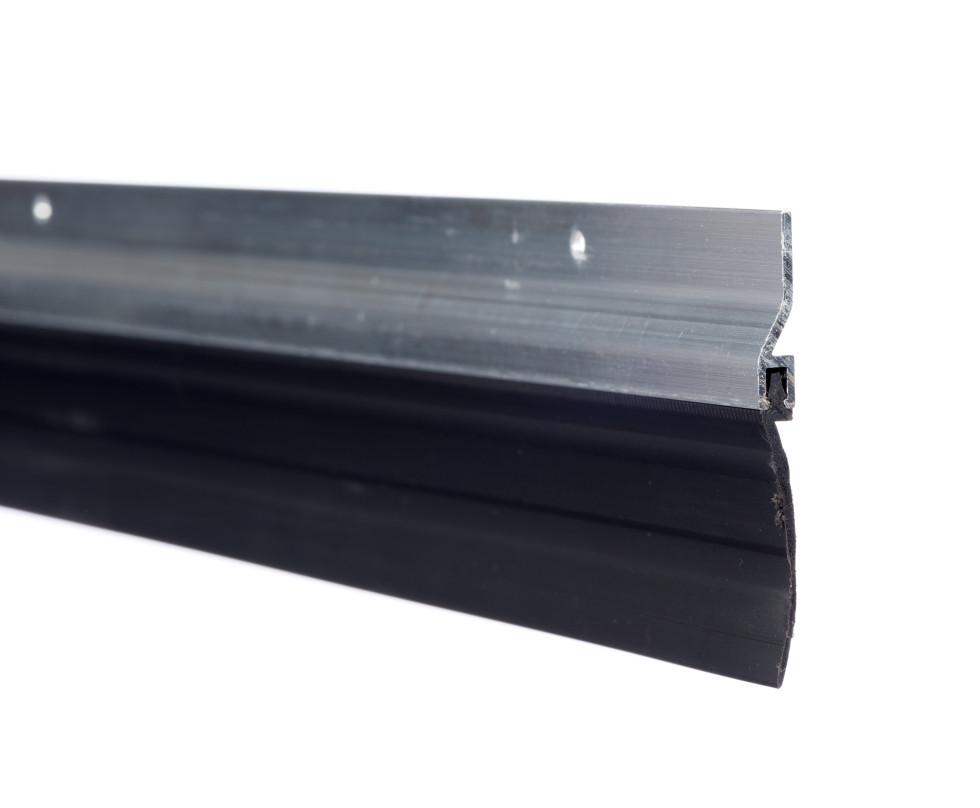

Solid draught-proof door bottom seal for attachment to the bottom of garage doors and industrial doors.

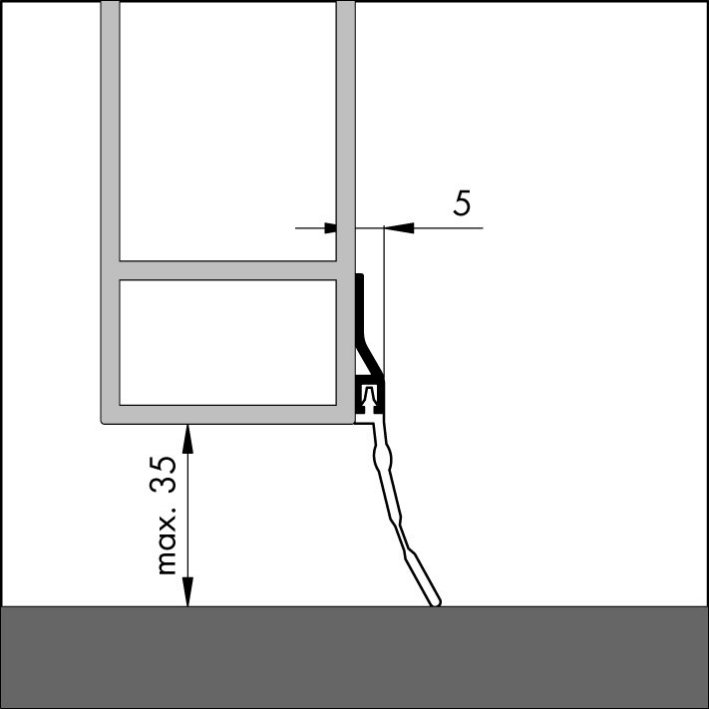

The aluminium profile has an extra large PVC seal to keep cold, draught and dust outside. The extra large seal is perfect for bridging large gaps, maximum 35 mm.
Description
- Aluminium profile with extra large gap coverage
- PVC seal
- Draught proofing
- For sealing the bottom of garage doors and industrial doors
- Pre-drilled with countersunken screw holes
Technical details
- Max gap: 35 mm
- Standard lengths 100 cm, 250 cm and 300 cm
- Can be cut to the right length
- Pre-drilled 2,8 mm
Specifications
All standard lengths can be cut to size.
| LENGTH | ART.NR | COLOUR | EAN (PC.) | UNIT |
| 100 cm | 030300610 | Alu. | 8711286111206 | 10 pc. |
| 250 cm | 030300625 | Alu. | 8711286110254 | 10 pc. |
| 300 cm | 030300630 | Alu. | 8711286111220 | 10 pc. |
Note: It is possible to purchase the product individually at your local hardware store or home improvement center.
Installation advice
Draft, cold and dust can easily be stopped by correctly installing the door bottom seal. Read the supplied installation instructions, watch the installation instruction video and follow the step-by-step plan.
Prepare the necessary materials in advance:
- Tape measure or folding rule
- Pencil
- Hacksaw and file
- Drill
Step-by-step guide: installing door bottom seal ADS GL
- Measure the width of the door to determine the length of the ADS GL
- Mark the correct length on the door bottom seal, note: average the hole pattern for optimal attachment
- Cut the profile to size
- File off any burrs that may have formed in the aluminum
- Place the door bottom seal on the bottom of the door, with the PVC seal against the threshold
- Screw in place
