DRAUGHT PROOFING LIFT & SLIDE DOORS

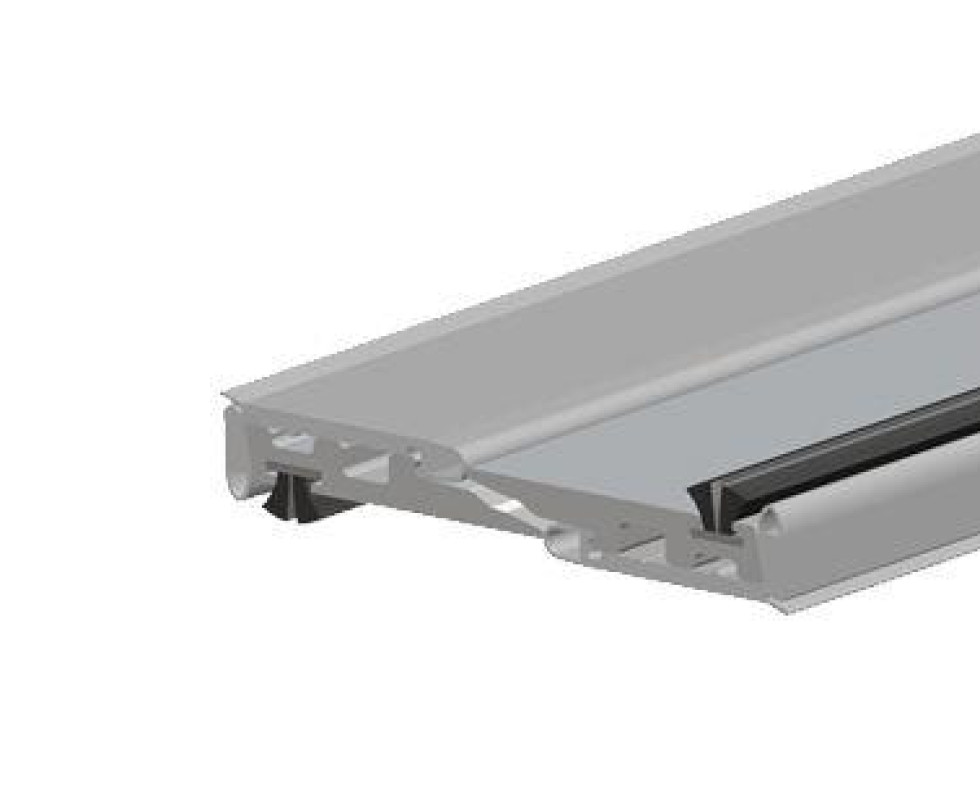

Aluminium centre lock profile with high-quality plastic seals.
The lift-slide door profile is equipped with a soft brush with a finseal insert for good protection against air and moisture infiltration.
Description
- Aluminium VOM1
- Double plastic seal
- Brush provided with a Finseal
- Burglary resistance class 2 (NEN 5096)
- Air permeability class 4 (NEN EN 12207)
- Wind load class 5 (NEN EN 12210)
- Quick and easy to install
- Application: lift & slide doors / sliding doors
- Can be cut to the right length
Technical details
- Length 250 cm and 300 cm
- Mount with screws
Specifications
Alle standaardlengten zijn in te korten.
| LENGTH | ART.NR | COLOUR | EAN (PC.) | UNIT |
| 250 cm | 713050925 | VOM1 | 8711286474257 | 1 pc. |
| 300 cm | 713050930 | VOM1 | 8711286474264 | 1 pc. |
Installation advice
Read the supplied assembly instructions and follow the step-by-step plan.
Prepare the necessary materials in advance:
- Tape measure or folding rule
- Pencil
- Hacksaw and file
- Drill with Phillips bit

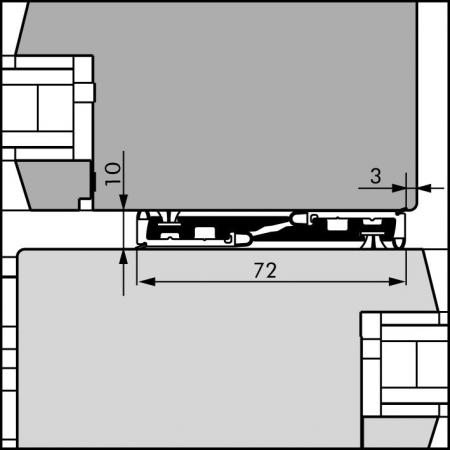

Step-by-step guide: installing Centre lock profile AMSP-7210
- Measure the height of the sliding doors to determine the length of the profiles
- Mark the correct length on the profiles
- Cut the profiles to size
- File off any sharp edges of the aluminum that may have formed
- Place the profiles
